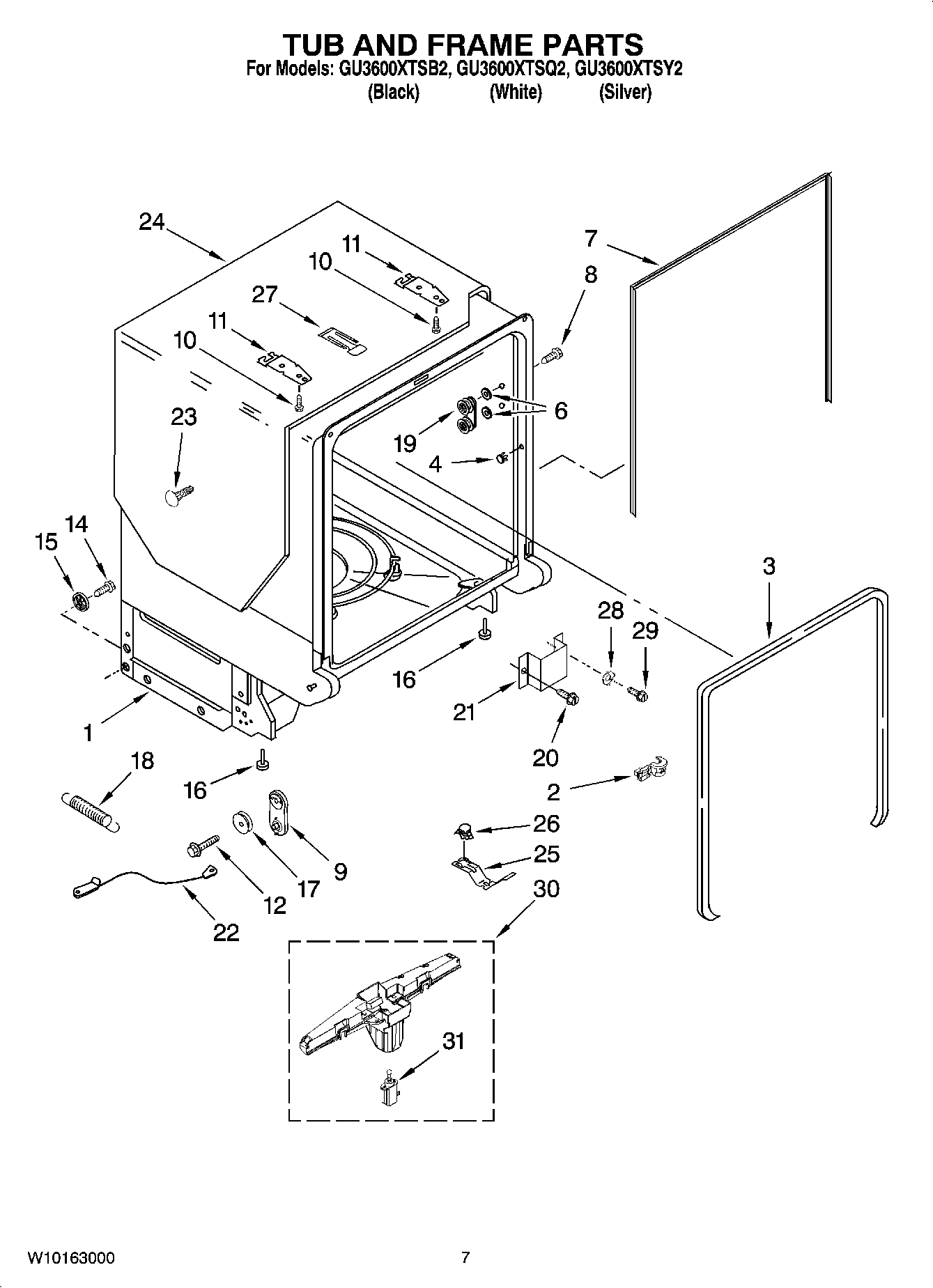

GU3600XTSY2 07 – TUB AND FRAME PARTS

Products

Position	Product
1	Tub Assembly
2	W11384788 Whirlpool Dishwasher Relief Strainer
3	W11196317 Whirlpool Dishwasher Door Gasket
4	W10795980 Whirlpool Cap
6	WP9743002 Whirlpool Dishwasher Gasket
7	SEAL
8	WPW10348407 Whirlpool Dishwasher Screw
9	8194001 Whirlpool Dishwasher Door Balance Link Kit
10	WP308685 Whirlpool Microwave Screw
11	WP8269145 Whirlpool Dishwasher Mounting Bracket
12	WP3400074 Whirlpool Dishwasher Screw
14	Screw (2)
15	WP8268977 Whirlpool Dishwasher Wheel
16	8193716 Whirlpool Leveling Leg
17	WP8524474 Whirlpool Dishwasher Wheel Assembly
18	SPRING
19	WP8270019 Whirlpool Dishwasher Dishrack Wheel
20	WP3400892 Whirlpool Dishwasher Screw
21	WP8268991 Whirlpool Dishwasher Cover Assembly
23	WP304666 Whirlpool Dishwasher Retainer
24	W10877094 Whirlpool Shield
25	9742648 Whirlpool Dishwasher Stat Bracket
26	WP661566 Whirlpool High Limit Thermostat
27	WP8580309 Whirlpool Dishwasher Strike
28	WP3378128 Whirlpool Dishwasher Washer
29	WP3400014 Whirlpool Dishwasher Screw
30	WP8572661 Whirlpool Dishwasher Actuator
31	Motor, Wax
