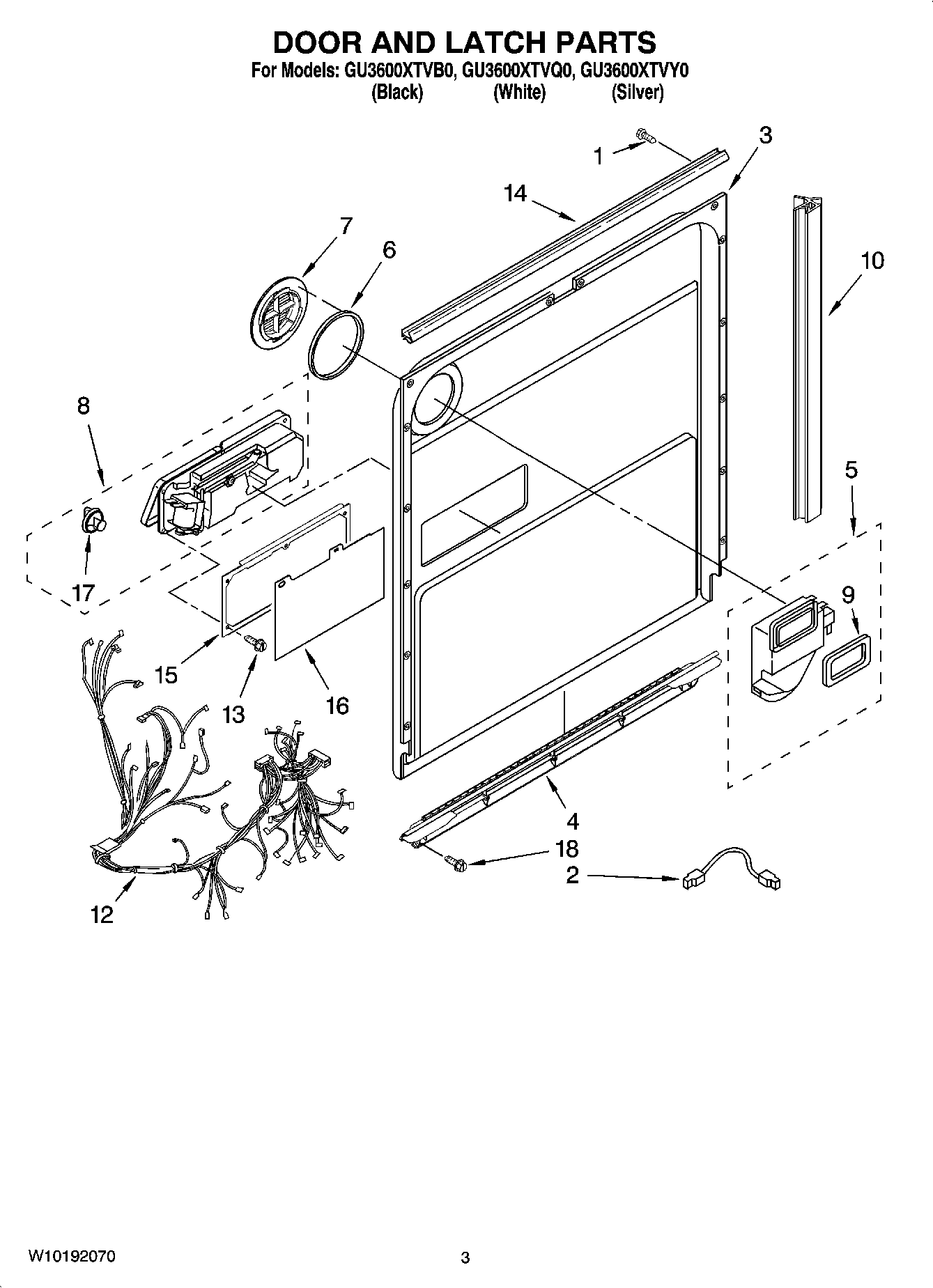

GU3600XTVB0 03 – DOOR AND LATCH PARTS

Products

Position	Product
1	WPW10348409 Whirlpool Screw
2	Harness, Vent Motor
3	WPW10164357 Whirlpool Dishwasher Inner Door
4	WP8268937 Whirlpool Dishwasher Air Inlet
5	WPW10164259 Whirlpool Dishwasher Vent Assembly
6	WP8269259 Whirlpool Air Vent Gasket
7	WP8545536 Whirlpool Dishwasher Deflector
8	DISPENSER-DW DETERGENT
9	WP8269258 Whirlpool Dishwasher Gasket
10	8574160 Whirlpool Dishwasher Seal
12	Wiring Harness Main
13	WPW10177098 Whirlpool Dishwasher Screw
14	WP8535660 Whirlpool Dishwasher Seal
15	WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
16	WP8531865 Whirlpool Dishwasher Door Shield
17	WP8558307 Whirlpool Rinse Aid Dispenser Cap
18	W11631670 Whirlpool Screw
