GU3600XTVB0 06 – PUMP, WASHARM AND MOTOR PARTS
Written by
in

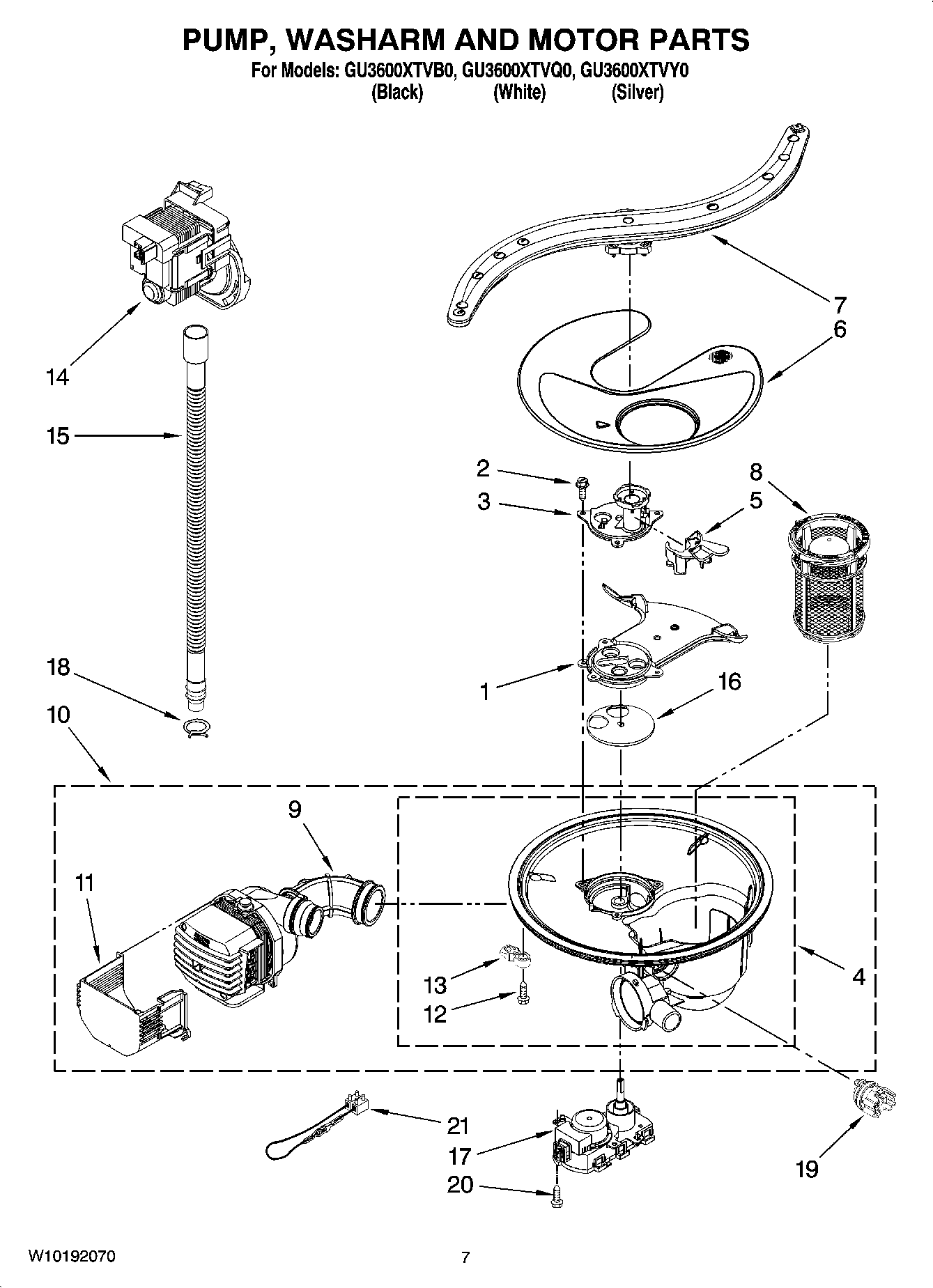

GU3600XTVB0 06 – PUMP, WASHARM AND MOTOR PARTS
Products
Position
Product
1
Cover Sleeve
2
Screw
3
Cover, Outlet
4
W10168822 Whirlpool Dishwasher Sump Assembly
5
Retainer, Feed Tube
6
WP8579253 Whirlpool Screen Filter
7
Wash Arm Assembly
8
W10872845 Whirlpool Dishwasher Filter Cup Trap
9
Hose, Inlet (Includes 3 Hose Clamps)
10
WPW10056309 Whirlpool Dishwasher Motor & Pump
11
8579272 Whirlpool Shield
12
WPW10348407 Whirlpool Dishwasher Screw
13
WPW10372113 Whirlpool Dishwasher Sump Tab
14
WPW10348269 Whirlpool Washer Drain Pump
15
8269144A Whirlpool Dishwasher Drain Hose
16
Disc-Valve Diverter
17
MOTOR-DIVERTER DW
18
WP356138 Whirlpool Hose Clamp
19
WPW10705575 Whirlpool Dishwasher Sensor
20
WP9741232 Whirlpool Dishwasher Screw
21
WPW10083167 Whirlpool Dishwasher Wire Harness
←
