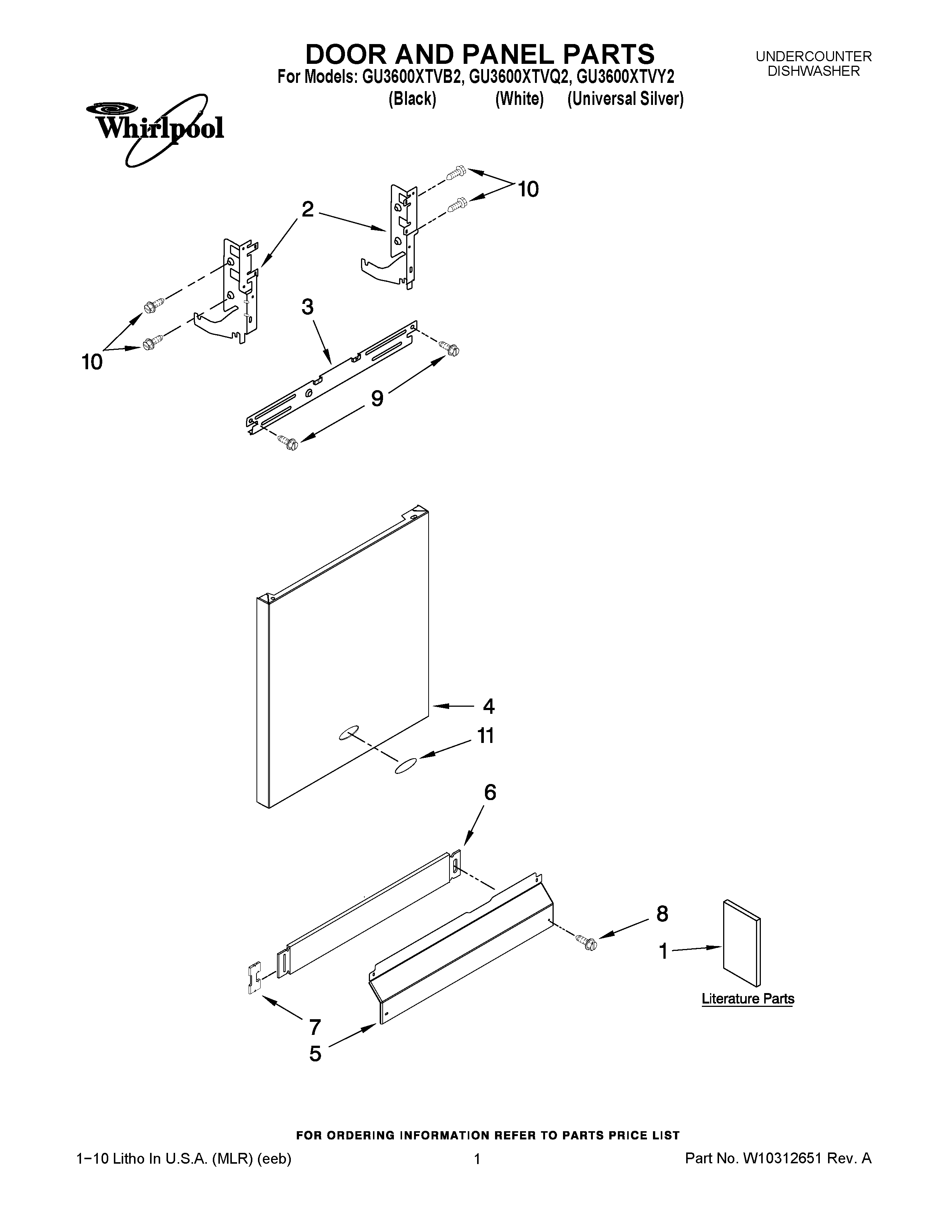

GU3600XTVB2 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1ENERGY GUIDE
1GUIDE, USE & CARE (ENGLISH/FRENCH)
1GUIDE, USE & CARE (SPANISH)
1TECH SHEET (FRENCH)
1INSERT-INSTALL
1TECH SHEET (ENGLISH)
1Instructions, Installation
2W11612303 Whirlpool Door Hinge
2W11612302 Whirlpool Dishwasher Door Hinge
3Stiffener, Door
4Panel Front (Stainless)
4Panel Front (Black)
4Panel Front (White)
5W10909064 Whirlpool Dishwasher Black Access Panel
5W10909066 Whirlpool Dishwasher Panel
6WP8573287 Whirlpool Dishwasher Toe Panel
7WP8269016 Whirlpool Clip Assembly
8WPW10503549 Whirlpool Dishwasher Retainer Clip
8WP302868 Whirlpool Screw
9WP489069 Whirlpool Compactor Screw
10WP3400071 Whirlpool Screw
11NAMEPLATE
