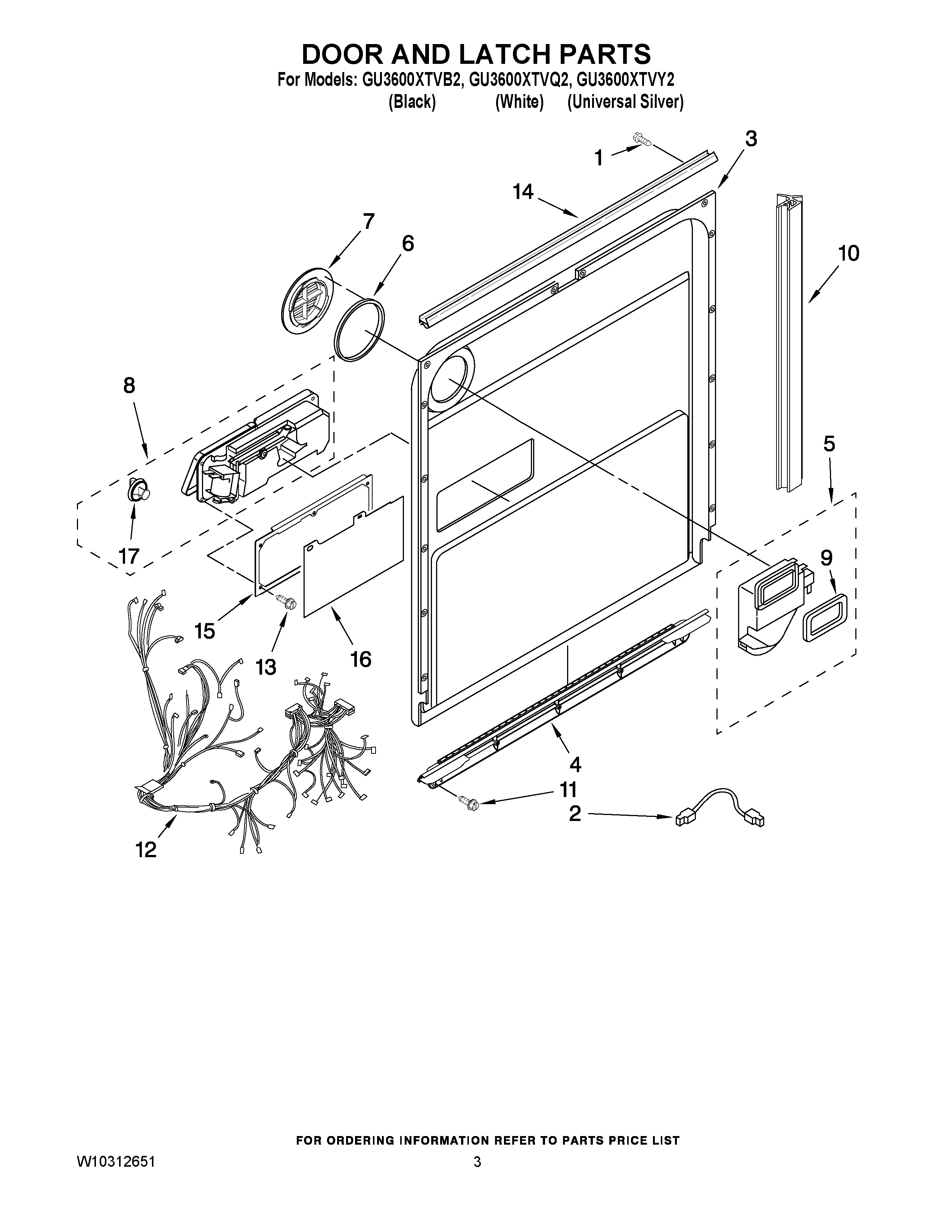

GU3600XTVB2 03 – DOOR AND LATCH PARTS

GU3600XTVB2 03 – DOOR AND LATCH PARTS

Written by

in

GU3600XTVB2 03 – DOOR AND LATCH PARTS

Products

PositionProduct
1WPW10348409 Whirlpool Screw
2Harness, Vent Motor
3WPW10164357 Whirlpool Dishwasher Inner Door
4WP8268937 Whirlpool Dishwasher Air Inlet
5WPW10164259 Whirlpool Dishwasher Vent Assembly
6WP8269259 Whirlpool Air Vent Gasket
7WP8545536 Whirlpool Dishwasher Deflector
8WPW10195175 Whirlpool Dishwasher Detergent Dispenser
9WP8269258 Whirlpool Dishwasher Gasket
108574160 Whirlpool Dishwasher Seal
11W11631670 Whirlpool Screw
12Wiring Harness Main
13WPW10177098 Whirlpool Dishwasher Screw
14WP8535660 Whirlpool Dishwasher Seal
15WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
16WP8531865 Whirlpool Dishwasher Door Shield
17WP8558307 Whirlpool Rinse Aid Dispenser Cap
