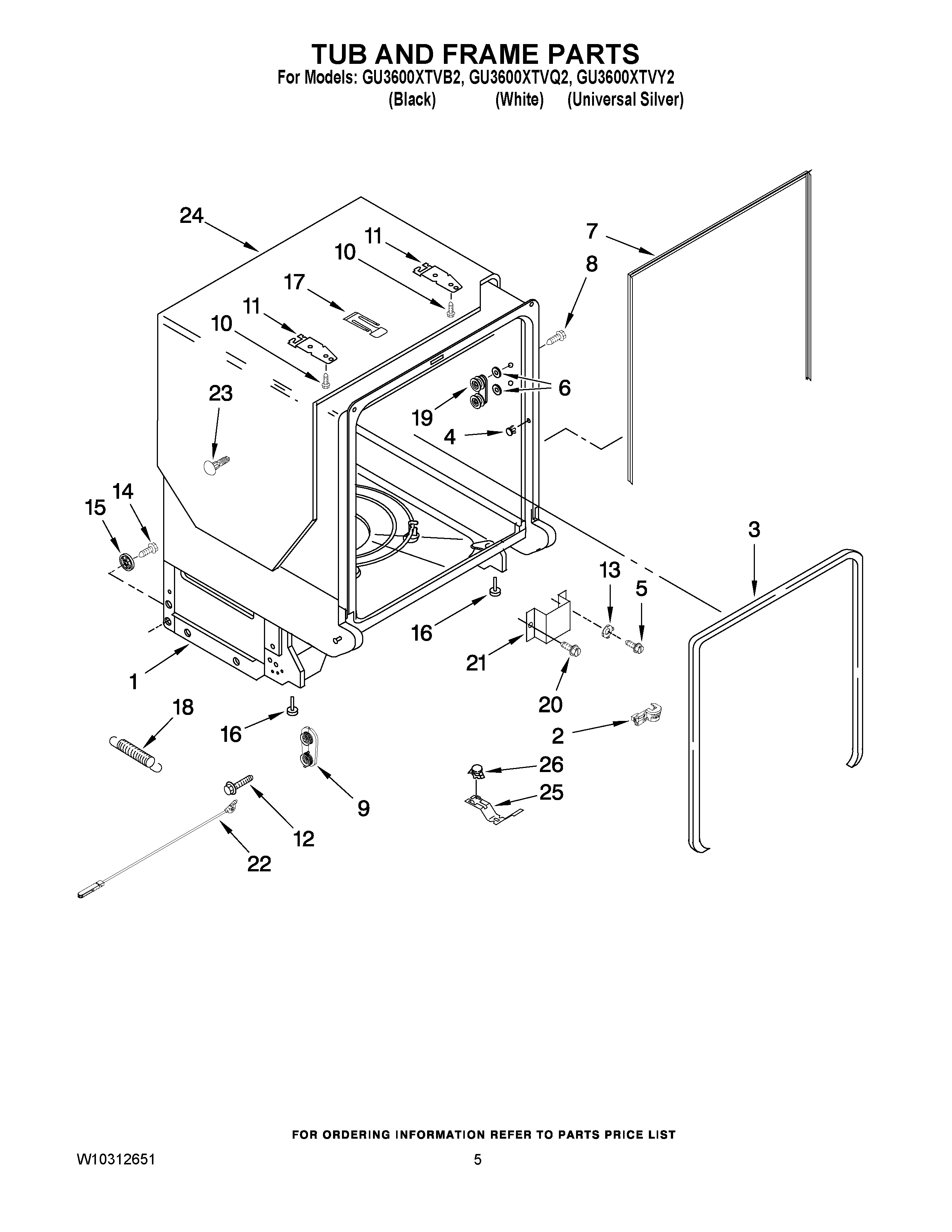

GU3600XTVB2 05 – TUB AND FRAME PARTS

Products

Position	Product
1	Tub Assembly (Includes Heater Assembly)
2	W11384788 Whirlpool Dishwasher Relief Strainer
3	W11196317 Whirlpool Dishwasher Door Gasket
4	W10795980 Whirlpool Cap
5	WP3400014 Whirlpool Dishwasher Screw
6	WP9743002 Whirlpool Dishwasher Gasket
7	SEAL
8	WPW10348407 Whirlpool Dishwasher Screw
9	WPW10084086 Whirlpool Dishwasher Mount
10	WP308685 Whirlpool Microwave Screw
11	WP8269145 Whirlpool Dishwasher Mounting Bracket
12	WP3400074 Whirlpool Dishwasher Screw
13	WP3378128 Whirlpool Dishwasher Washer
14	Screw (2)
15	WP8268977 Whirlpool Dishwasher Wheel
16	8193716 Whirlpool Leveling Leg
17	WP8580309 Whirlpool Dishwasher Strike
18	SPRING
19	WP8270019 Whirlpool Dishwasher Dishrack Wheel
20	WPW10277003 Whirlpool Screw
21	WP8268991 Whirlpool Dishwasher Cover Assembly
22	8194001 Whirlpool Dishwasher Door Balance Link Kit
23	WP304666 Whirlpool Dishwasher Retainer
24	W11086533 Whirlpool Dishwasher Shield
25	9742648 Whirlpool Dishwasher Stat Bracket
26	WP661566 Whirlpool High Limit Thermostat
