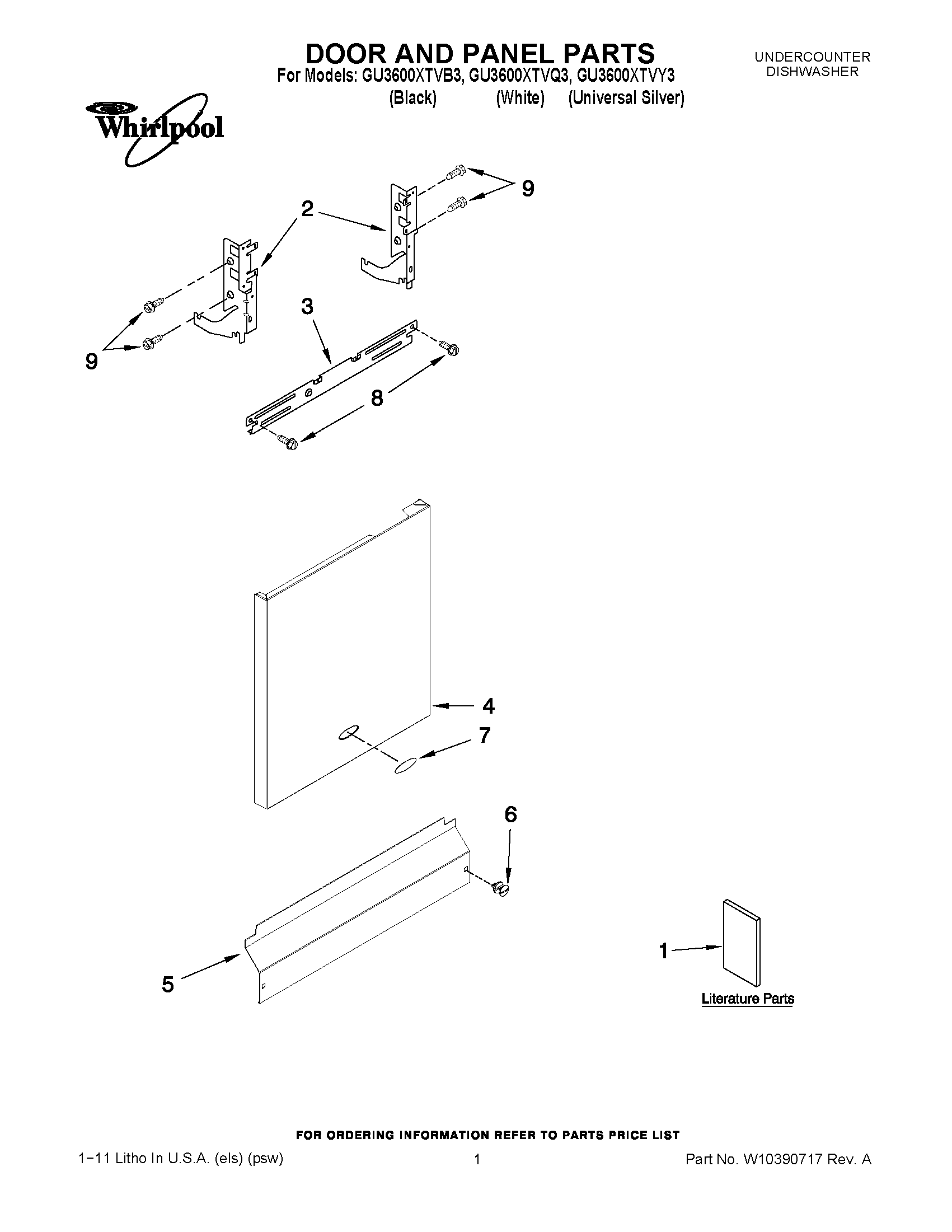

GU3600XTVB3 01 – DOOR AND PANEL PARTS

GU3600XTVB3 01 – DOOR AND PANEL PARTS

Written by

in

GU3600XTVB3 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1ENERGY GUIDE
1INSTRUCTIONS, INSTALLATION
1TECH SHEET (FRENCH)
1GUIDE, USE & CARE (SPANISH)
1TECH SHEET (ENGLISH)
1GUIDE, USE & CARE (ENGLISH/FRENCH)
2W11612302 Whirlpool Dishwasher Door Hinge
2W11612303 Whirlpool Door Hinge
3Stiffener, Door
4PANEL FRONT (WHITE)
4PANEL FRONT (STAINLESS)
4PANEL FRONT (BLACK)
5PANEL
5WPW10441007 Whirlpool Dishwasher Panel
6WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
6WPW10503549 Whirlpool Dishwasher Retainer Clip
7NAMEPLATE
8WP489069 Whirlpool Compactor Screw
9WP3400071 Whirlpool Screw
