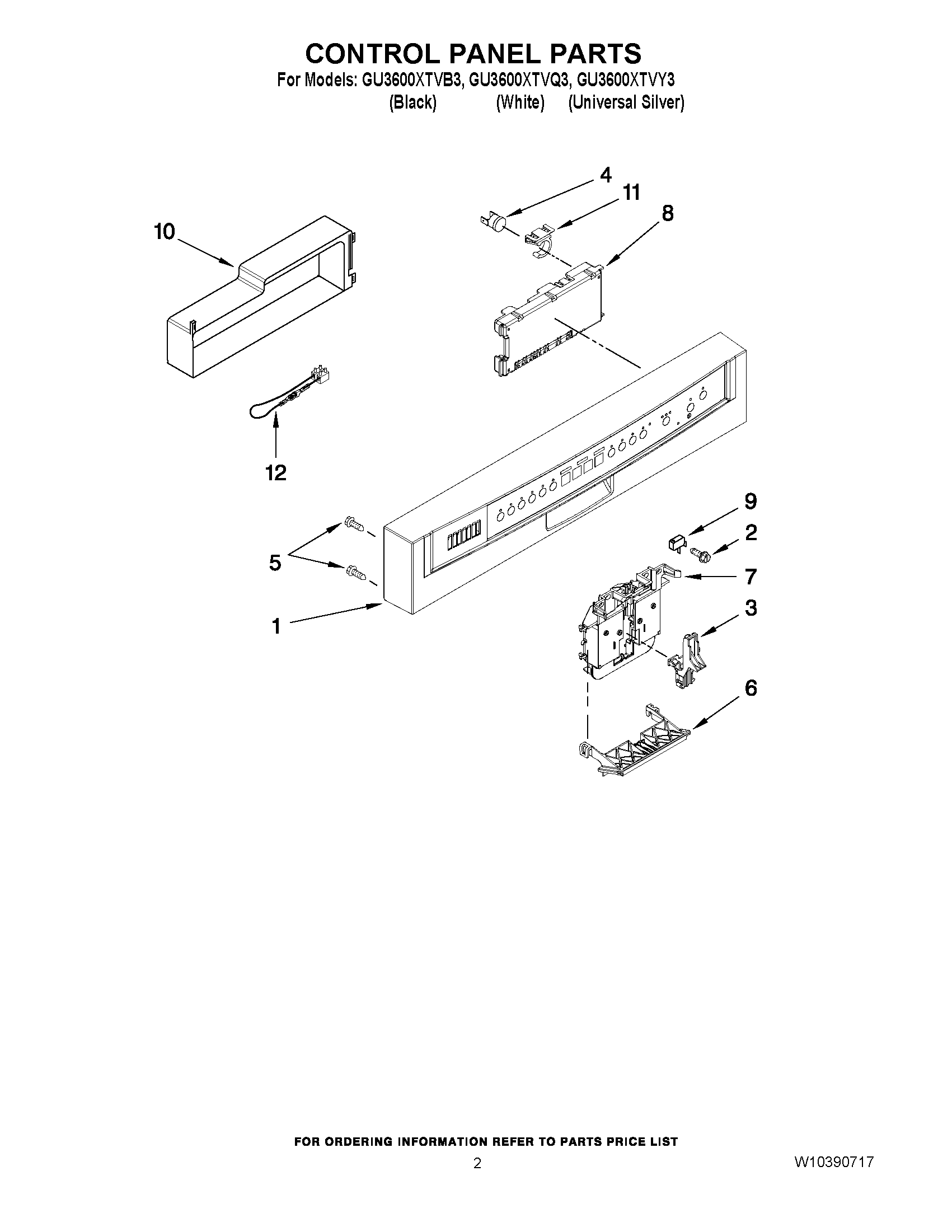

GU3600XTVB3 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Console Asm. (Includes Active Overlay & Insert) (White)
1	Console Asm. (Includes Active Overlay & Insert) (Black)
1	WPW10175352 Whirlpool Dishwasher Control Panel
2	WP3400412 Whirlpool Dishwasher Screw
3	WP8524471 Whirlpool Dishwasher Actuator
4	W10258275 Whirlpool Dishwasher Bimetal Fuse
5	WPW10348409 Whirlpool Screw
6	8575334 Whirlpool Dishwasher Handle
6	Handle, Latch (Black)
6	Handle, Latch (White)
7	8193882 Whirlpool Dishwasher Primary Latch Bolt
8	WPW10285178-includeCORE Whirlpool WPW10285178 Dishwasher Electronic Control Board
9	WP8269209 Whirlpool Door Switch
10	Cover Control Shield Assembly
11	Clip, BI-Metal
12	WPW10083167 Whirlpool Dishwasher Wire Harness
