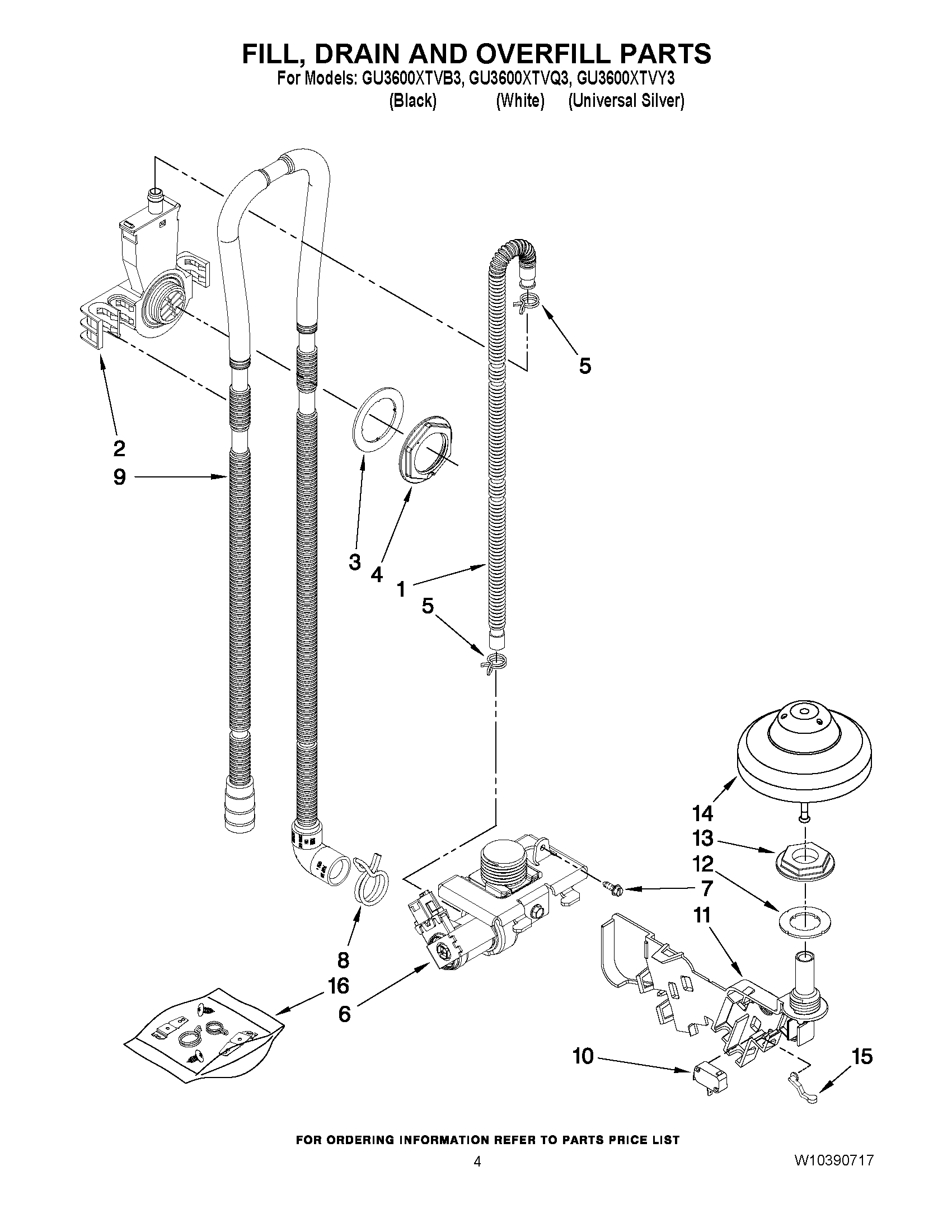

GU3600XTVB3 04 – FILL, DRAIN AND OVERFILL PARTS

GU3600XTVB3 04 – FILL, DRAIN AND OVERFILL PARTS

Written by

in

GU3600XTVB3 04 – FILL, DRAIN AND OVERFILL PARTS

Products

PositionProduct
1W10878507 Whirlpool Inlet Hose
2WPW10195536 Whirlpool Water Inlet Valve
3WP8531323 Whirlpool Gasket Seal
4WPW10213825 Whirlpool Dishwasher Tube Nut
5WP596669 Whirlpool Hose Clamp
6W10648041 Whirlpool Water Inlet Valve
7WP489069 Whirlpool Compactor Screw
8WP356138 Whirlpool Hose Clamp
9WPW10545278 Whirlpool Drain Hose
10WPW10102495 Whirlpool Dishwasher Switch
118193506 Whirlpool Dishwasher Switch
12WP8531743 Whirlpool Dishwasher Float Switch Base Gasket
13WP9741998 Whirlpool Dishwasher Nut
14WP8268895 Whirlpool Dishwasher Float Assembly
15WP8268892 Whirlpool Dishwasher Lever
16WPW10292152 Whirlpool Hardware Kit
