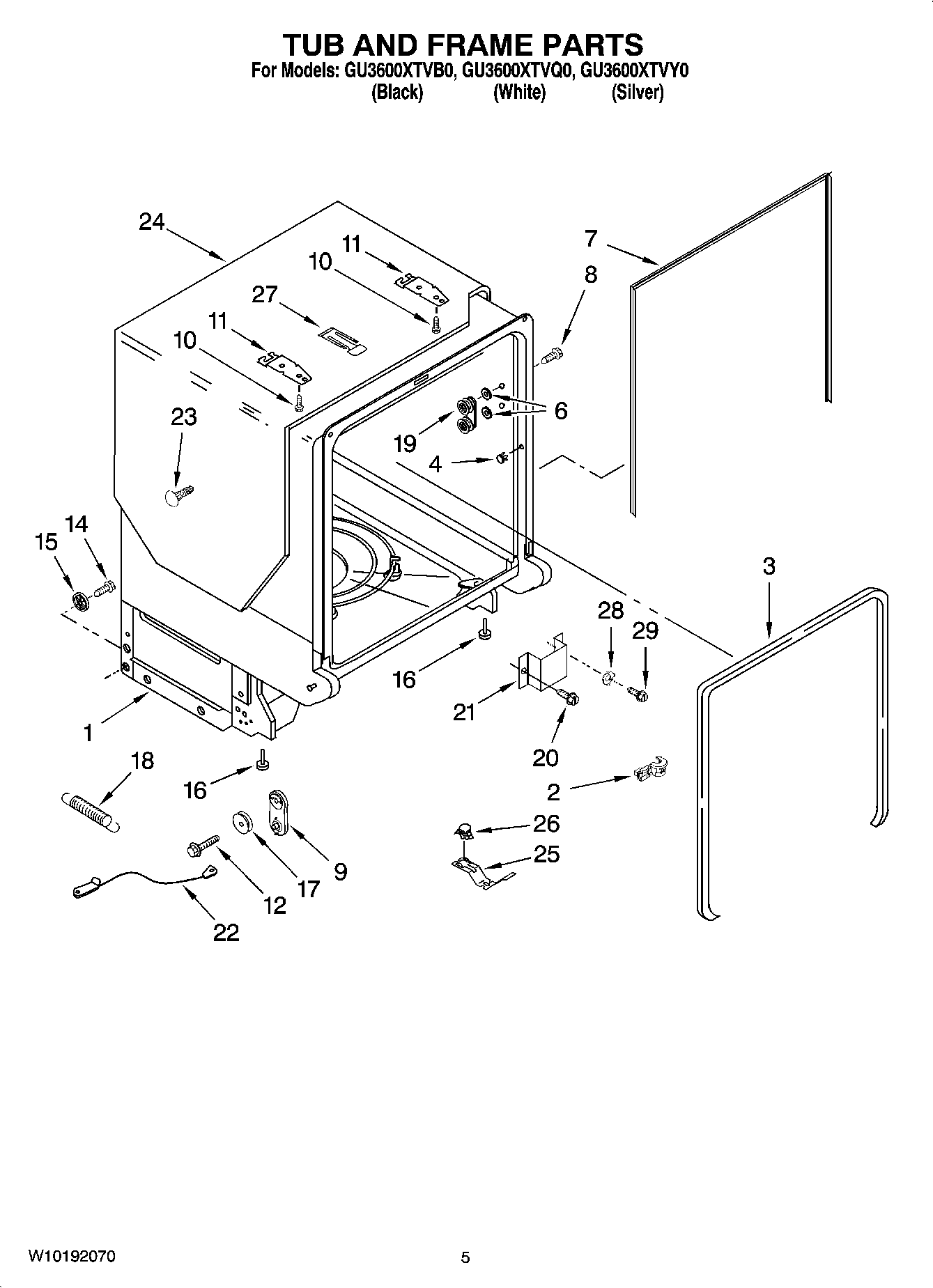

GU3600XTVQ0 05 – TUB AND FRAME PARTS

GU3600XTVQ0 05 – TUB AND FRAME PARTS

Written by

in

GU3600XTVQ0 05 – TUB AND FRAME PARTS

Products

PositionProduct
1Tub Assembly (Also Includes Heater Assembly)
2W11384788 Whirlpool Dishwasher Relief Strainer
3W11196317 Whirlpool Dishwasher Door Gasket
4W10795980 Whirlpool Cap
6WP9743002 Whirlpool Dishwasher Gasket
7SEAL
8WPW10348407 Whirlpool Dishwasher Screw
9WPW10084086 Whirlpool Dishwasher Mount
10WP308685 Whirlpool Microwave Screw
11WP8269145 Whirlpool Dishwasher Mounting Bracket
12WP3400074 Whirlpool Dishwasher Screw
14Screw (2)
15WP8268977 Whirlpool Dishwasher Wheel
168193716 Whirlpool Leveling Leg
18SPRING
19WP8270019 Whirlpool Dishwasher Dishrack Wheel
20WP3400892 Whirlpool Dishwasher Screw
21WP8268991 Whirlpool Dishwasher Cover Assembly
228194001 Whirlpool Dishwasher Door Balance Link Kit
23WP304666 Whirlpool Dishwasher Retainer
24W11086533 Whirlpool Dishwasher Shield
259742648 Whirlpool Dishwasher Stat Bracket
26WP661566 Whirlpool High Limit Thermostat
27WP8580309 Whirlpool Dishwasher Strike
28WP3378128 Whirlpool Dishwasher Washer
29WP3400014 Whirlpool Dishwasher Screw
