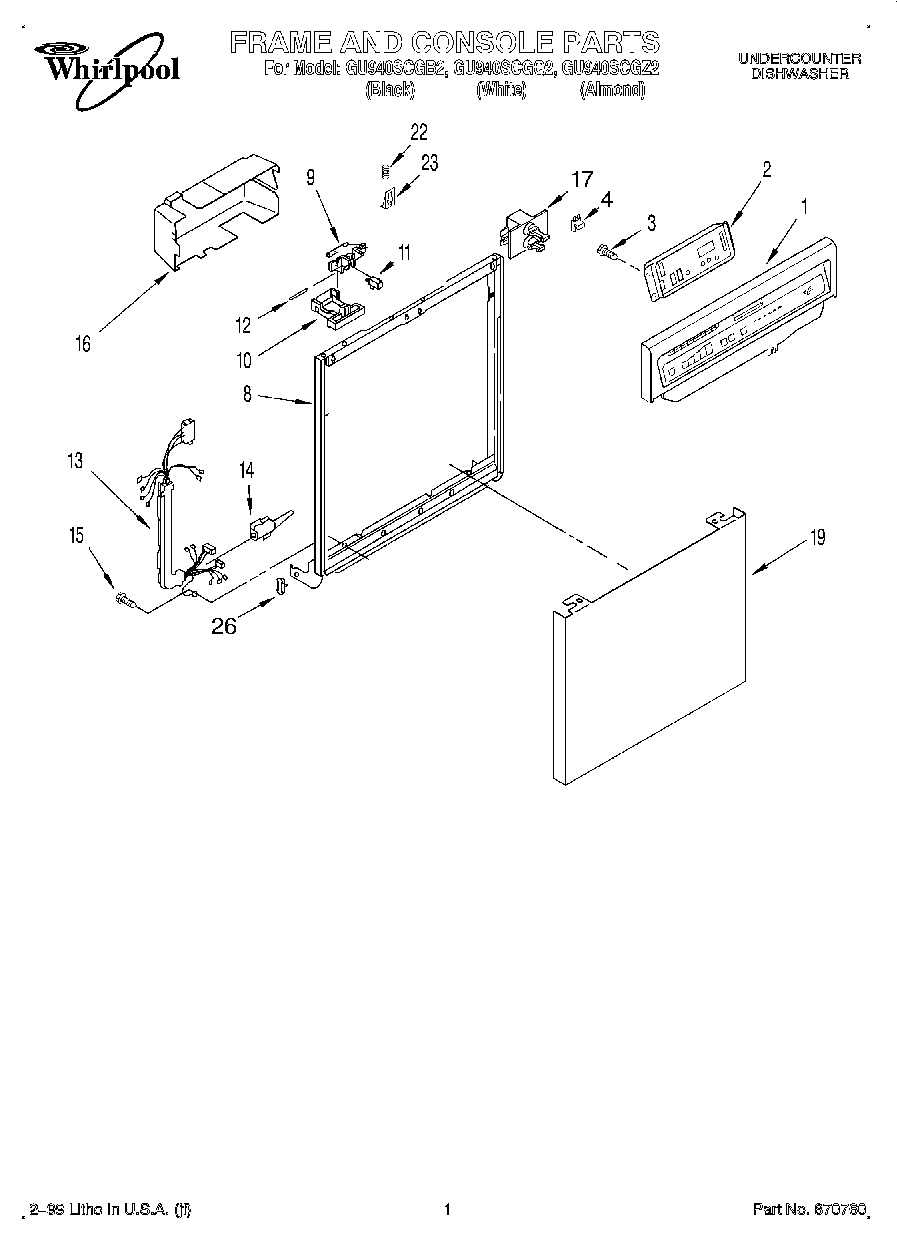

GU940SCGB2 01 – FRAME AND CONSOLE

GU940SCGB2 01 – FRAME AND CONSOLE

Written by

in

GU940SCGB2 01 – FRAME AND CONSOLE

Products

PositionProduct
1Console (Includes Insert) (Almond)
1Console (Includes Insert) (White)
1Console (Includes Insert) (Black)
2Control, Electronic
3WP304231 Whirlpool Dishwasher Screw
4675813 Whirlpool Thermal Fuse Kit
8WP9743028 Whirlpool Dishwasher Frame
9WP3380854 Whirlpool Door Latch Bolt
10Lever, Latch (Almond)
10Lever, Latch
10Lever, Latch White
11Shield, Switch
12Pin, Switch (2)
13Harness and Protector
143376405 Whirlpool Dishwasher Elbow
15WP488234 Whirlpool Air Conditioner Screw
16Cover, Timer
17Motor, Dual
19Panel Front (Almond Model)
19Panel Front (White Model)
19Panel Front (Black Model)
23675782 Whirlpool Dishwasher Catch
26WP3373234 Whirlpool Dishwasher Bearing
