GU940SCGB2 05 – UPPER DISHRACK AND WATER FEED
Written by
in

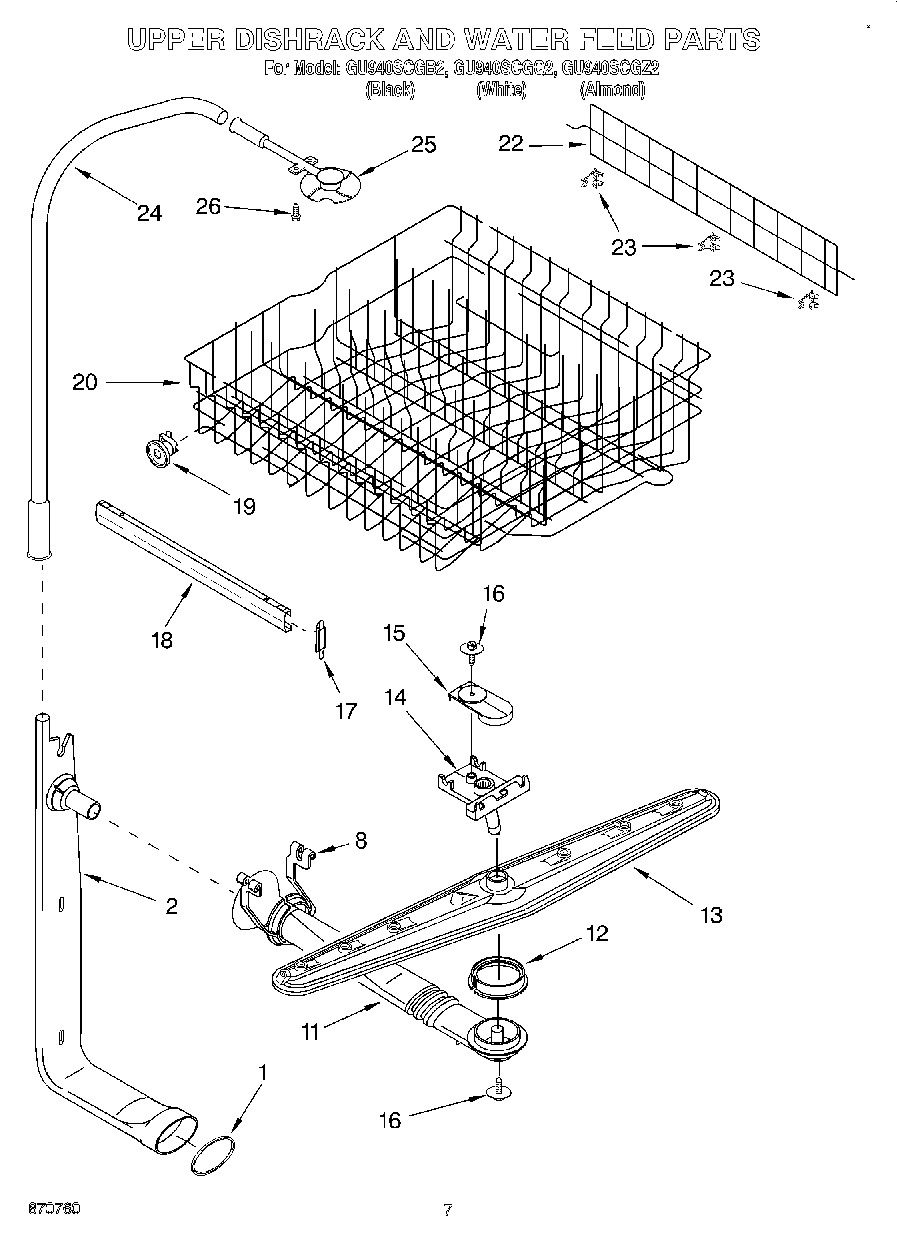

GU940SCGB2 05 – UPPER DISHRACK AND WATER FEED
Products
Position
Product
1
Seal, Tube
2
661651 Whirlpool Dishwasher Tube
8
WP3378186 Whirlpool Dishwasher Holder
11
WP3378144 Whirlpool Dishwasher Tube
12
WP3376846 Whirlpool Seal
13
675808 Whirlpool Dishwasher Middle Spray Arm and Manifold Assembly
14
WP8539324 Whirlpool Dishwasher Upper Spray Arm Mount
15
WP8268812 Whirlpool Dishwasher Mounting Assembly
16
WPW10349488 Whirlpool Screw
17
WP3379941 Whirlpool Dishwasher Stop
18
WP3385089 Whirlpool Track
19
WP8268807 Whirlpool Dishwasher Upper Wheel
20
WPW10253040 Whirlpool Dishwasher Dish Rack
23
WP9743019 Whirlpool Dishwasher Clip
24
Tube (3rd Level)
25
WP3379369 Whirlpool Dishwasher Wash Assembly
26
WP489443 Whirlpool Refrigerator Screw
←
