GU940SCGZ0 06 – LOWER DISHRACK

GU940SCGZ0 06 – LOWER DISHRACK

Written by

in

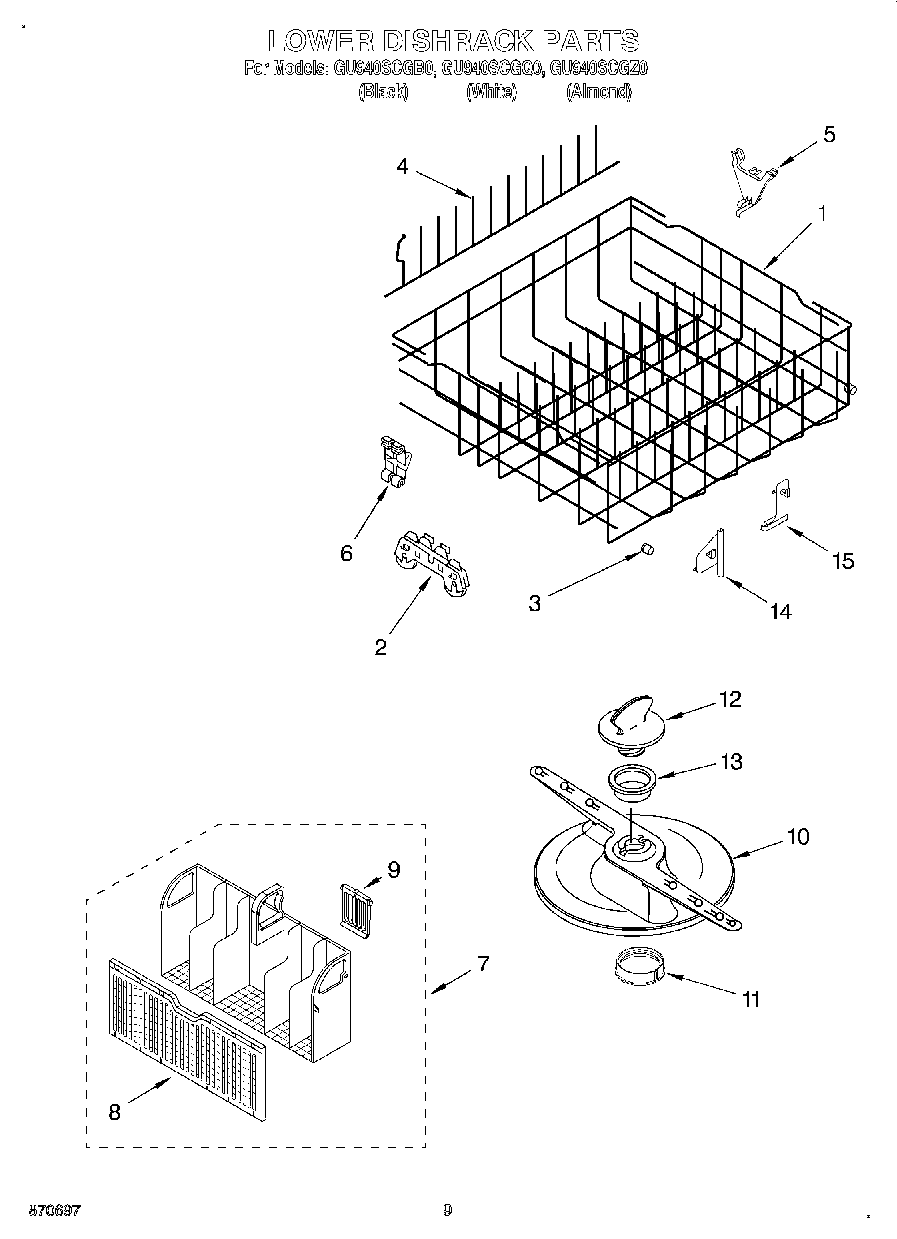

GU940SCGZ0 06 – LOWER DISHRACK

Products

PositionProduct
1W10311986 Whirlpool Dishwasher Lower Rack
2WP3376961 Whirlpool Dishwasher Wheel
3WP3385142 Whirlpool Dishwasher Bumper
4W10728160 Whirlpool Tine Assembly
5Pivot, Folddown
6WP3368629 Whirlpool Dishwasher Retainer
7Silverware Basket Assembly
8Door, Silverware Basket
9Lid, Silverware Basket
10WP8268874 Whirlpool Dishwasher Spray Arm
11WP3376846 Whirlpool Seal
12WP9742945 Whirlpool Spray Arm Nut
13WP9742946 Whirlpool Dishwasher Spray Arm Bearing
14Clip, Silverware Basket (Left)
15Clip, Silverware Basket (Right)
