GU940SCGZ3 05 – UPPER DISHRACK AND WATERFEED

GU940SCGZ3 05 – UPPER DISHRACK AND WATERFEED

Written by

in

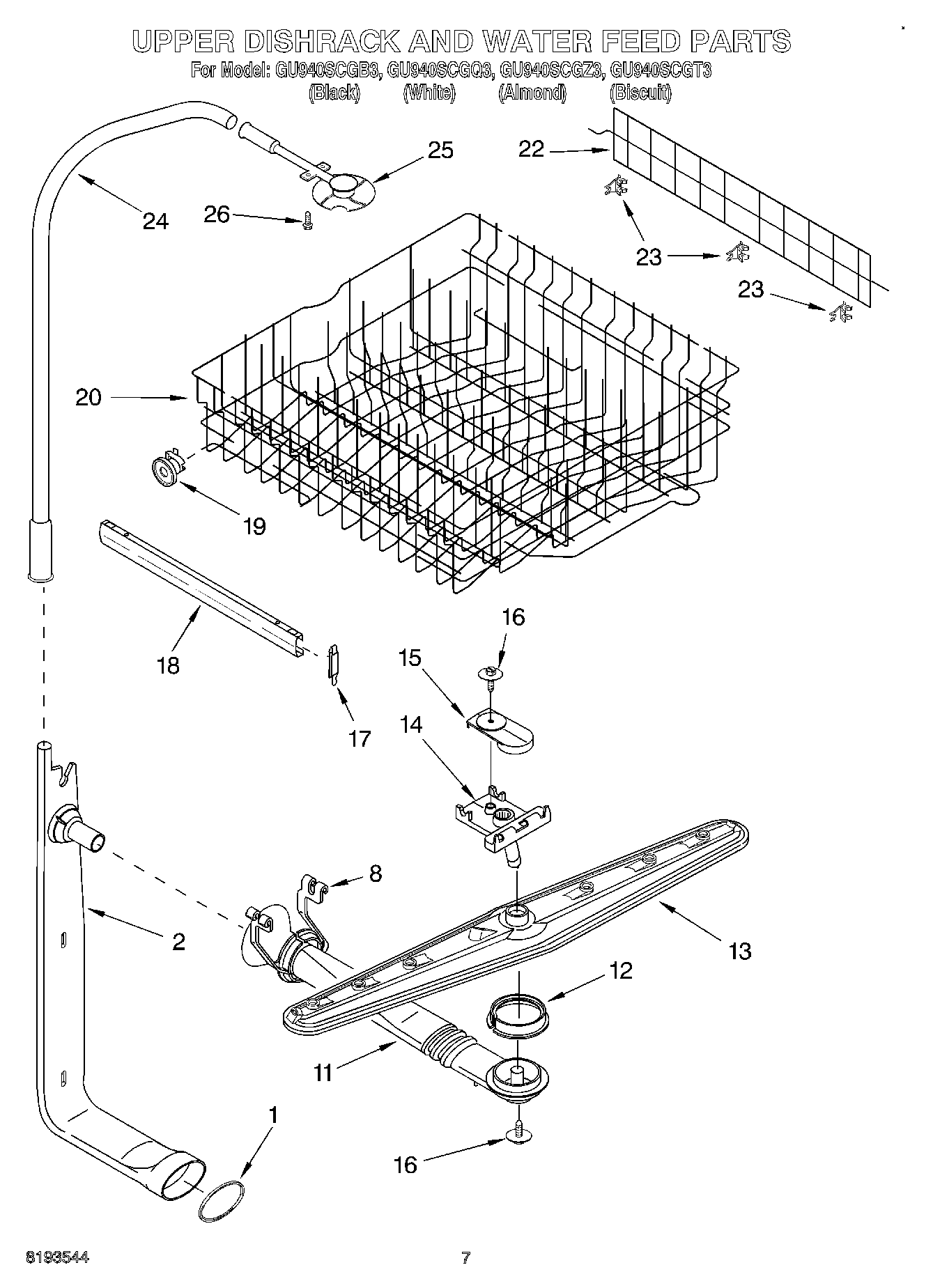

GU940SCGZ3 05 – UPPER DISHRACK AND WATERFEED

Products

PositionProduct
1Seal, Tube
2661651 Whirlpool Dishwasher Tube
8WP8268843 Whirlpool Dishwasher Holder
11WPW10258149 Whirlpool Dishwasher Manifold
12WP3376846 Whirlpool Seal
13WP8268840 Whirlpool Dishwasher Spray Arm
14WP8539324 Whirlpool Dishwasher Upper Spray Arm Mount
15WP8268812 Whirlpool Dishwasher Mounting Assembly
16WPW10349488 Whirlpool Screw
17WP3379941 Whirlpool Dishwasher Stop
18WP3385089 Whirlpool Track
19WP8268807 Whirlpool Dishwasher Upper Wheel
22WPW10253040 Whirlpool Dishwasher Dish Rack
23Clip, Cupshelf
24Tube (3rd Level)
25WP3379369 Whirlpool Dishwasher Wash Assembly
26WP489443 Whirlpool Refrigerator Screw
