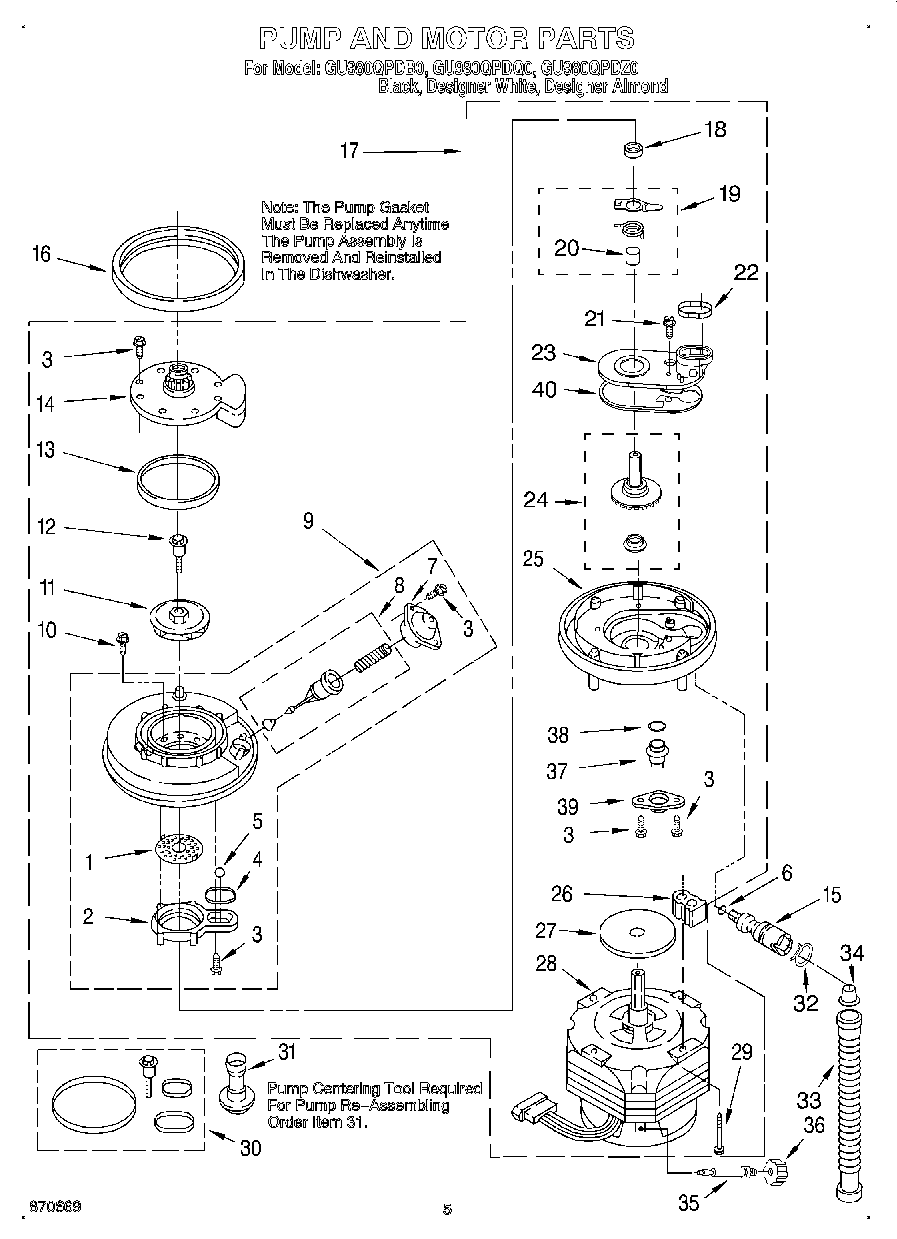

GU980QPDQ0 04 – PUMP AND MOTOR

Products

PositionProduct
1Plate, Perforated (Also Order Item 30) See Note A.
2Base, Inlet (Includes Items 1 & 5) (Also Order Item 30) See Note A.
3WP9741232 Whirlpool Dishwasher Screw
4WP302710 Whirlpool Dishwasher Ring Seal
5Ball, Check
6“O“ Ring
7Cover, Valve
8Valve Stem Kit (Includes Items 12, 13 & 22) See Note A.
9Separator Assembly (Includes Items 12, 13 & 22) See Note A.
10Screw
12WP3371152 Whirlpool Dishwasher Screw
13WP302711 Whirlpool Dishwasher Ring Seal
14Outlet, Pump (Includes Item 13)
15675238 Whirlpool Check Valve
16717000 Whirlpool Dishwasher Gasket
17Pump & Motor Assembly (Includes Item 16)
18Bushing, Grind
19675806 Whirlpool Dishwasher Pump Impeller and Seal Kit
20Sleeve, Drain Impeller
21W11693756 Whirlpool Screw Assembly
22Seal, Drain Cover
23Cover, Drain (Also Order Item 30 & 40) See Note A.
25Base, Pump (Also Order Item 30) See Note A.
26WP3367197 Whirlpool Dishwasher Support
27W10909679 Whirlpool Dishwasher Slinger
28Motor & Fan (Assembly) (Includes Item 27) (Also Order Item 30) See Note A.
29Screw (4)
30Pump Seal Kit (Includes Items 4, 12, 13 & 22)
31Tool, Pump Centering
32WP356138 Whirlpool Hose Clamp
33WP3374077 Whirlpool Dishwasher Drain Hose
343371748 Whirlpool Dishwasher Cap
35Shaft, Absorber
36Weight, Absorber
37Thermostat
38WP3376723 Whirlpool Dishwasher Seal
39WP3376358 Whirlpool Dishwasher Retainer
40WP9740674 Whirlpool Dishwasher Gasket
