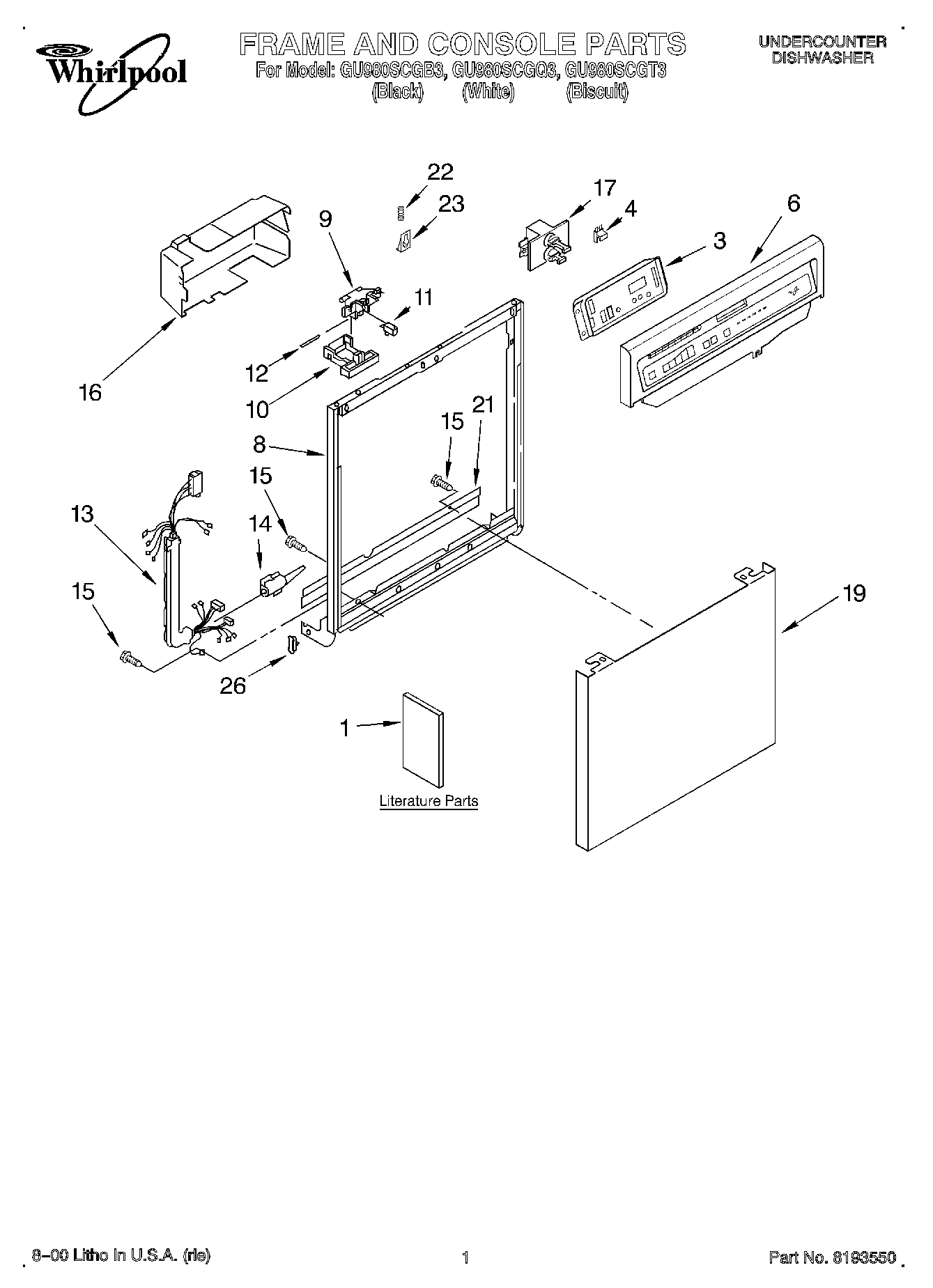

GU980SCGB3 01 – FRAME AND CONSOLE, LITERATURE
Written by
in
GU980SCGB3 01 – FRAME AND CONSOLE, LITERATURE
Products
Position
Product
1
Literature Parts (Tech Sheet) (Guide, Energy)
1
Literature Parts (Instructions, Installation)
1
Instructions, Installation (Supplement) (Locating Your Water Supply)
1
Literature Parts (Tech Sheet) (English)
1
Literature Parts (Tech Sheet) (French)
1
Literature Parts (Guide, Use & Care)
3
Control, Electronic
4
675813 Whirlpool Thermal Fuse Kit
6
Console (Includes Insert) (Biscuit)
6
Console (Includes Insert) (White)
6
Console (Includes Insert) (Black)
8
WP9743028 Whirlpool Dishwasher Frame
9
WP3380854 Whirlpool Door Latch Bolt
10
Lever, Latch White
10
Lever, Latch
10
Lever, Latch
11
Shield, Switch
12
Pin, Switch (2)
13
Harness and Protector
14
3376405 Whirlpool Dishwasher Elbow
15
WP3400892 Whirlpool Dishwasher Screw
16
Cover, Timer
17
Motor, Dual
19
Panel, Front (Biscuit)
19
Panel Front (White Model)
19
Panel Front (Black Model)
21
Barrier, Lower Vent
21
Barrier, Lower vent
23
675782 Whirlpool Dishwasher Catch
26
WP3373234 Whirlpool Dishwasher Bearing
←
