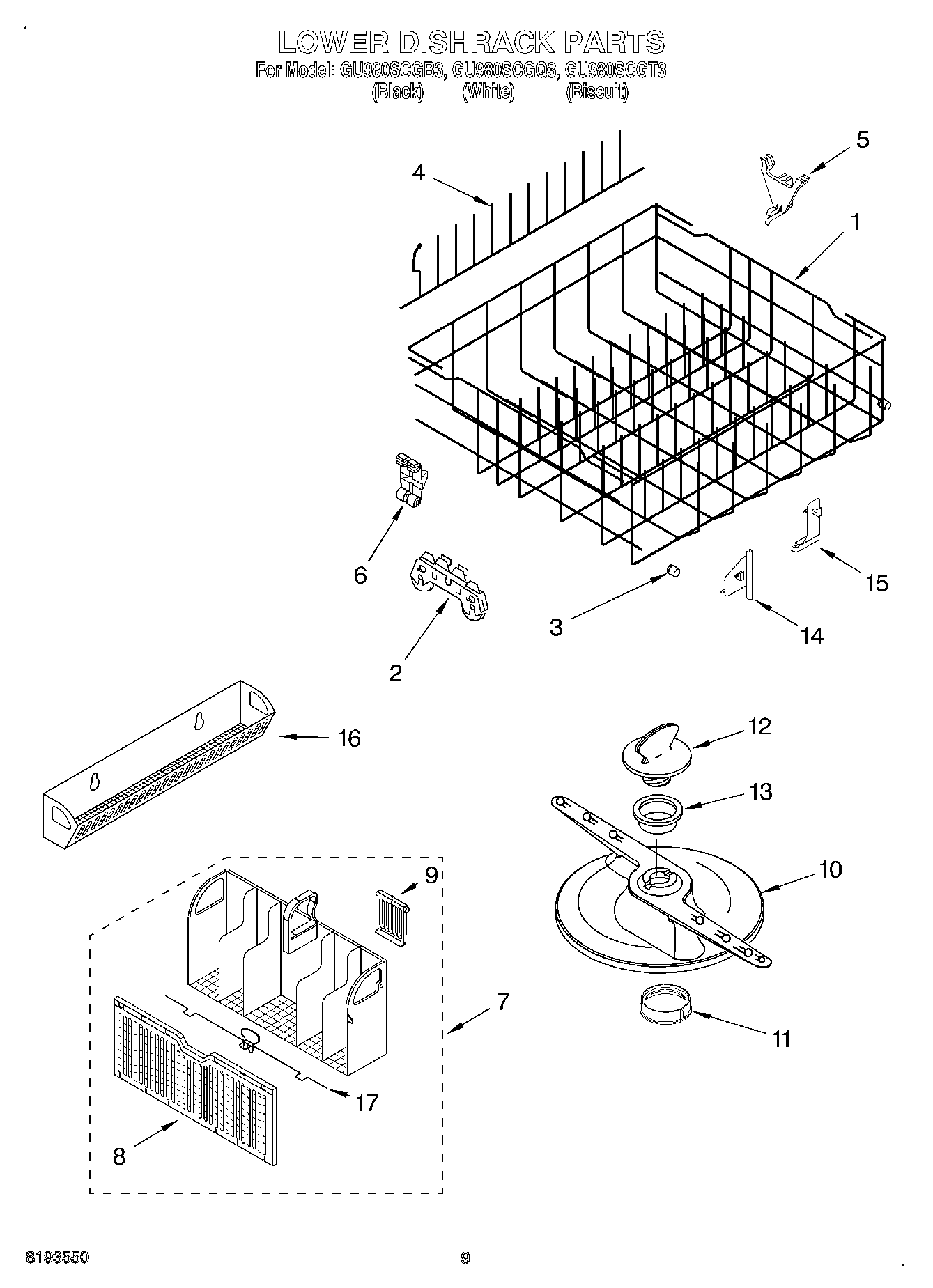

GU980SCGB3 06 – DISHRACK

GU980SCGB3 06 – DISHRACK

Written by

in

GU980SCGB3 06 – DISHRACK

Products

PositionProduct
1W10311986 Whirlpool Dishwasher Lower Rack
2WP8268645 Whirlpool Dishwasher Lower Dishrack Roller Assembly
3WP3385142 Whirlpool Dishwasher Bumper
4Tinerow, Folding
5WP8268523 Whirlpool Dishwasher Pivot Tine
6WP8268522 Whirlpool Dishwasher Retainer
7Silverware Basket Assembly
8Door, Silverware Basket
9Lid, Silverware Basket
10WP8268874 Whirlpool Dishwasher Spray Arm
11WP3376846 Whirlpool Seal
12WP8268873 Whirlpool Dishwasher Nut
13WP9742946 Whirlpool Dishwasher Spray Arm Bearing
148268867 Whirlpool Dishwasher Clip
158268868 Whirlpool Dishwasher Clip
16Basket, Utensil
17Latch Assembly
