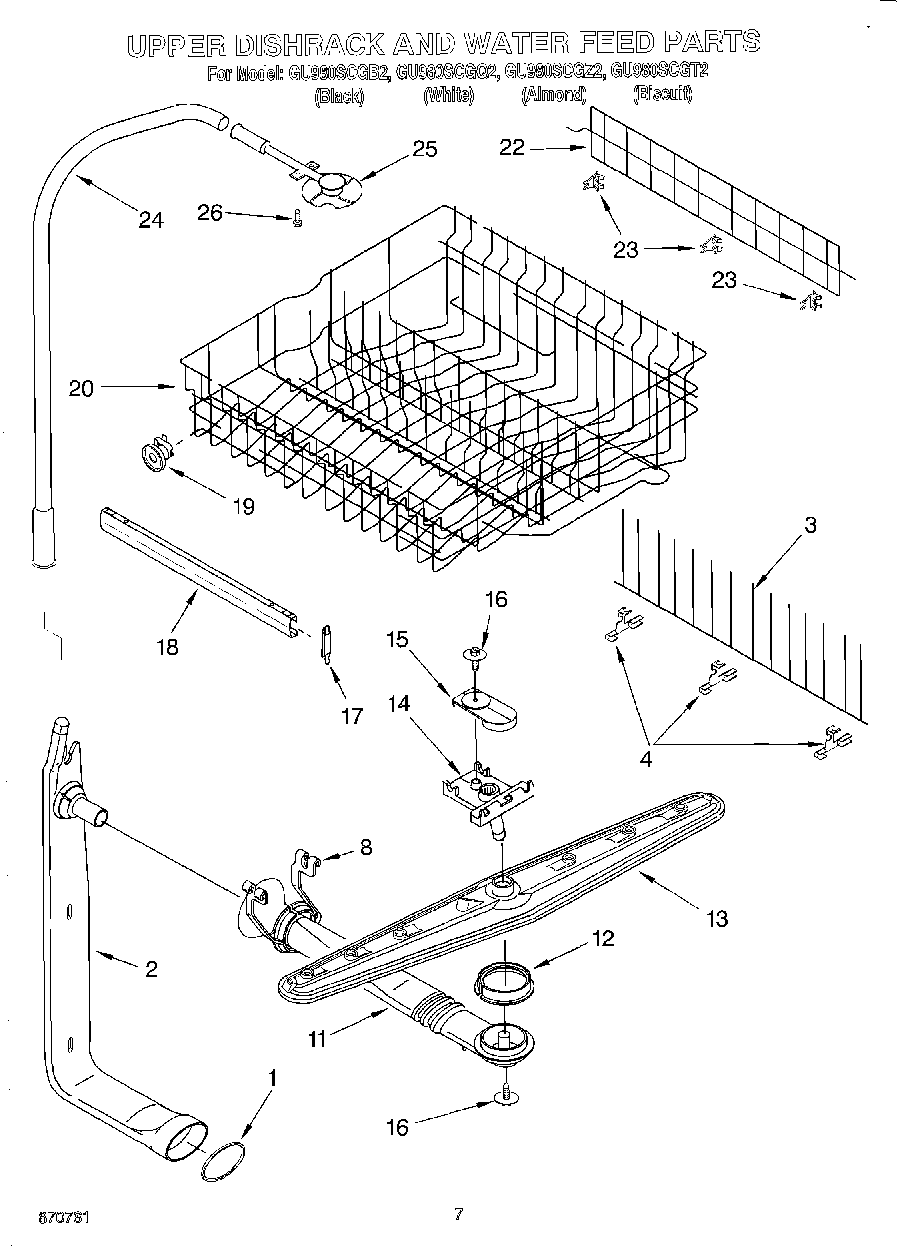

GU980SCGQ2 05 – UPPER DISHRACK AND WATER FEED

Products

PositionProduct
1Seal, Tube
2661651 Whirlpool Dishwasher Tube
3Tinerow, Upper
4WP8268816 Whirlpool Tine Row Clip
8WP3378186 Whirlpool Dishwasher Holder
11WP3378144 Whirlpool Dishwasher Tube
12WP3376846 Whirlpool Seal
13675808 Whirlpool Dishwasher Middle Spray Arm and Manifold Assembly
14WP8539324 Whirlpool Dishwasher Upper Spray Arm Mount
15WP8268812 Whirlpool Dishwasher Mounting Assembly
16WPW10349488 Whirlpool Screw
17WP3379941 Whirlpool Dishwasher Stop
18WP3385089 Whirlpool Track
19WP8268807 Whirlpool Dishwasher Upper Wheel
22WPW10253040 Whirlpool Dishwasher Dish Rack
23WP9743019 Whirlpool Dishwasher Clip
24Tube (3rd Level)
25WP3379369 Whirlpool Dishwasher Wash Assembly
26WP489443 Whirlpool Refrigerator Screw
