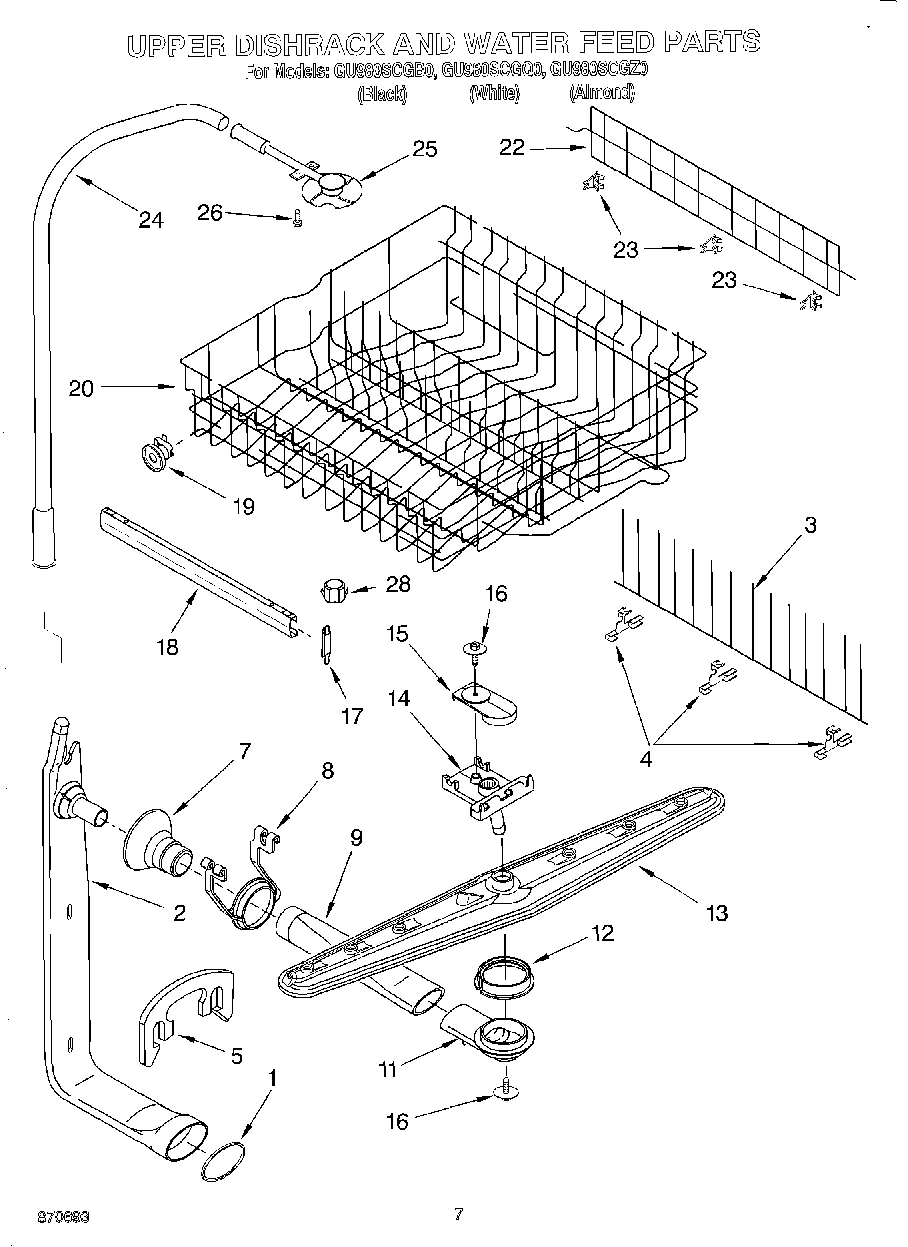

GU980SCGZ0 05 – UPPER DISHRACK AND WATER FEED

Products

Position	Product
1	Seal, Tube
2	661651 Whirlpool Dishwasher Tube
3	Tinerow, Upper
4	WP8268816 Whirlpool Tine Row Clip
5	Clip, Rear Tube
8	WP3378186 Whirlpool Dishwasher Holder
9	675808 Whirlpool Dishwasher Middle Spray Arm and Manifold Assembly
12	WP3376846 Whirlpool Seal
14	WP8539324 Whirlpool Dishwasher Upper Spray Arm Mount
15	WP8268812 Whirlpool Dishwasher Mounting Assembly
16	WPW10349488 Whirlpool Screw
17	WP3379941 Whirlpool Dishwasher Stop
18	WP3385089 Whirlpool Track
19	WP8268807 Whirlpool Dishwasher Upper Wheel
22	WPW10253040 Whirlpool Dishwasher Dish Rack
23	WP9743019 Whirlpool Dishwasher Clip
24	Tube, Feed
25	WP3379369 Whirlpool Dishwasher Wash Assembly
26	WP489443 Whirlpool Refrigerator Screw
28	Support, Lock Spray Arm
