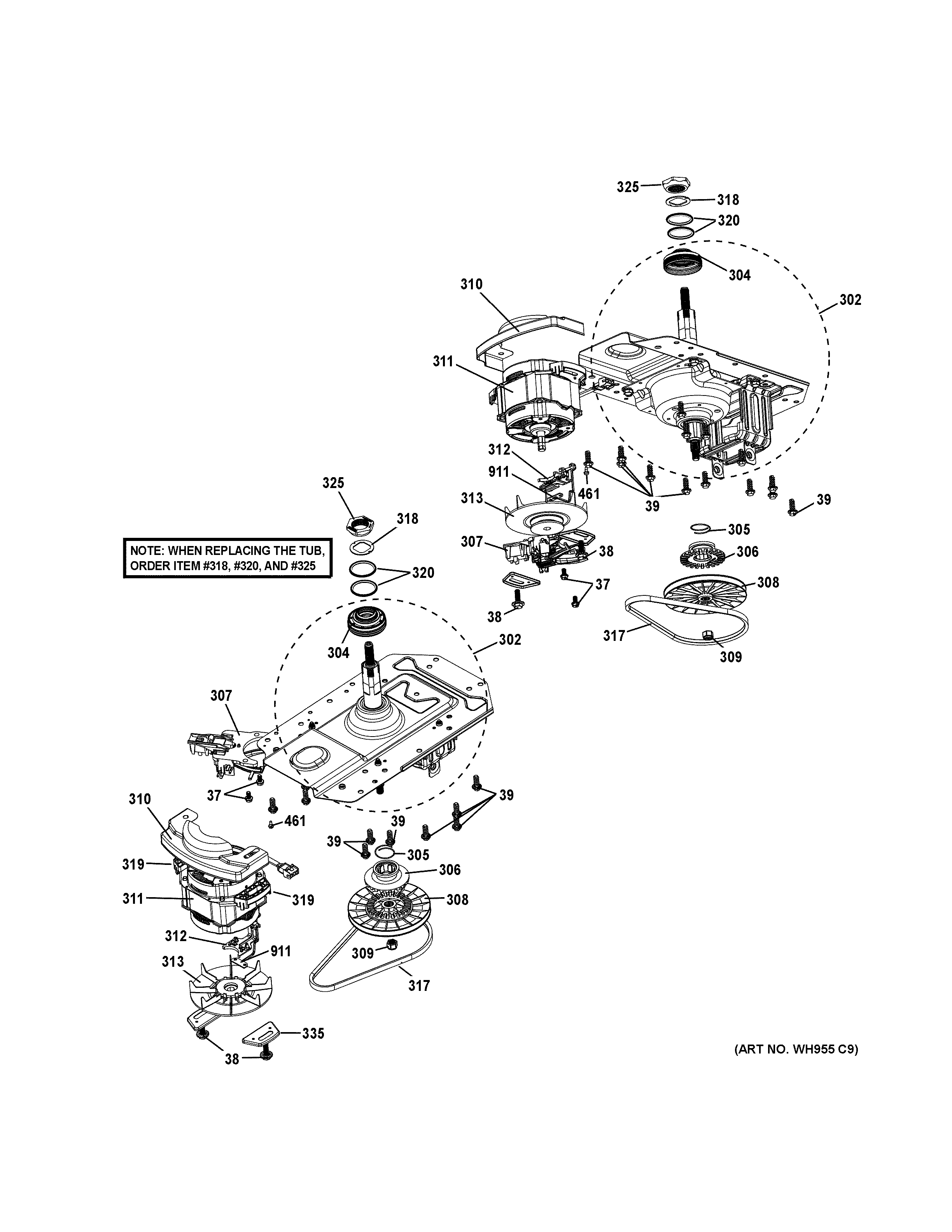

GUD24ESSJ0WW MOTOR & DRIVE ASSEMBLY

GUD24ESSJ0WW MOTOR & DRIVE ASSEMBLY

Written by

in

GUD24ESSJ0WW MOTOR & DRIVE ASSEMBLY

Products

PositionProduct
37WH01X10612 GE Taptite Screw
38WH01X10614 GE Hex Screw 5/16-18
39WH01X10616 GE HEX PT Screw K80 X 3.59
302WH16X22783 GE Assembly Support
304WH08X24594 GE Washer Tub Seal
305WH01X10606 GE Washer Spring Shifter
306WH01X28559 GE Washer Drive Disk
307WH16X10147 GE Washer Support Fork Assembly
308TRANSMISSION PULLEY
309WH01X10611 GE Pulley Nut
310WH01X10613 GE Tub Shield
311KIT MOTOR & SHIELD TUB
312WH12X20439 GE Sensor Board Support
313SET SCREW PULLEY ASM
317WH01X20436 GE Washer Dryer Drive Belt
318WH01X22787 GE Washer Hub
319WH03X20508 GE Washer Motor Grommet
320WH09X22745 GE Washer O-Ring
325WH01X10618 GE Washer Hub Nut
335WE13X24974 GE Motor Bracket
461WZ5X158D GE Screw Package of 12
911WL49X20360 GE AC Speed Sensor Kit
