GUD24ESSM0WW CONTROLS & BACKSPLASH

GUD24ESSM0WW CONTROLS & BACKSPLASH

Written by

in

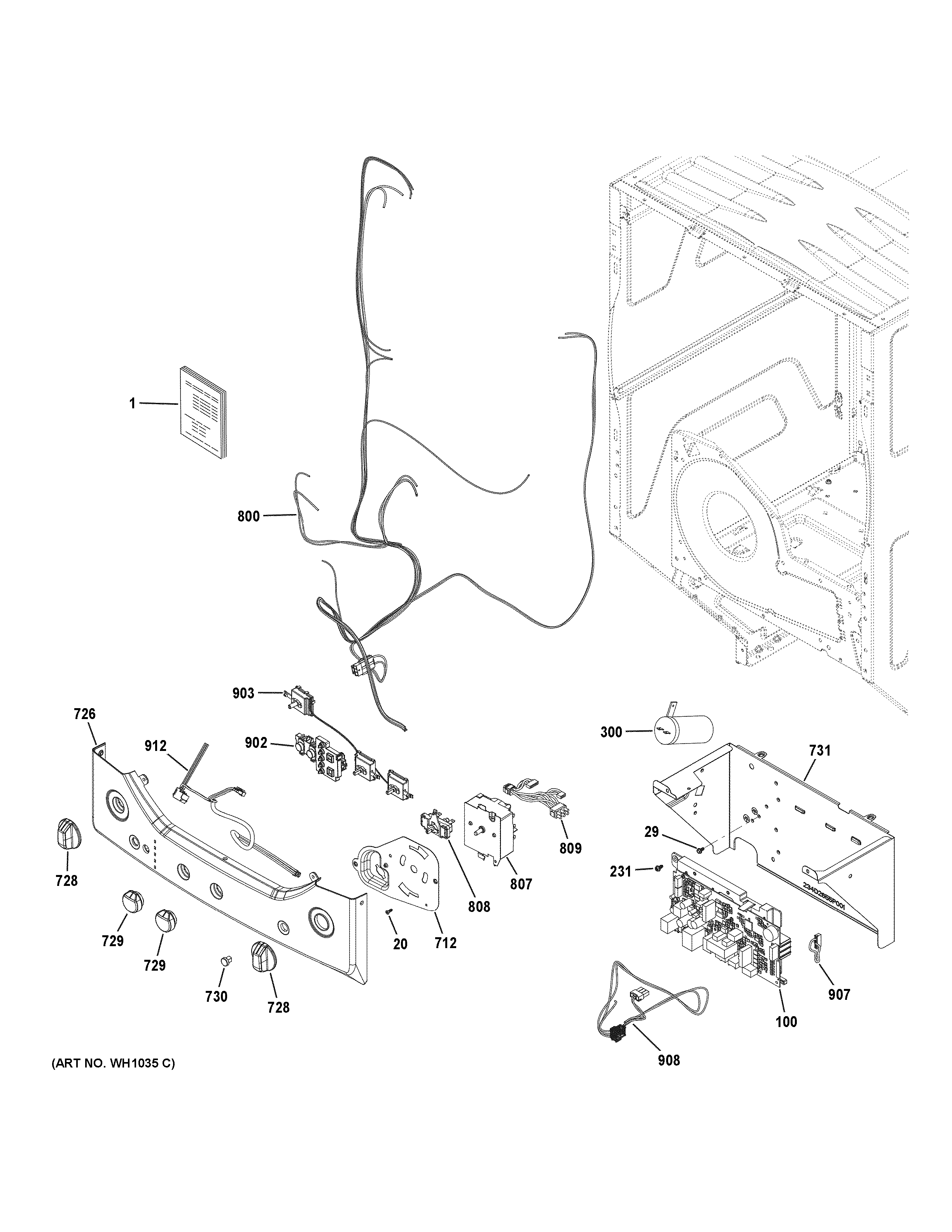

GUD24ESSM0WW CONTROLS & BACKSPLASH

Products

PositionProduct
1PUB NUMBER PM MINI MANUAL
1PUB NUMBER MANUAL USE & CARE
1PUB NUMBER PM INSTALLATION INSTRUCTION
20WE2M302 GE Screw
29WB01K10042 GE Oven Screw 3/8" AB IHW 8-18
100BOARD & SUPPORT ASSEMBLY
231WE01X25535 GE Screw
300WH12X27299 GE Capacitor
712WE19M1696 GE Control Support
726WE20X27260 GE Control and HT Assembly
728WE04X23115 GE Control Knob Assembly
729WE04X23116 GE Rotary Knob Assembly
730WE04X27654 GE Assembly Start Button
731ENCLOSURE BOARD 24"
800WE08X29055 GE Dryer Main Electric Harness
807WE04X22654 GE Washer Timer
808PUSH TO START SWITCH
809WE15X27237 GE Electric UI Harness Assembly
902UI BOARD GE ASM
903WH18X27241 GE Selector Assembly
907WE15X27301 GE Jumper Harness
908WE15X27306 GE Harness Extension
912WE15X27258 GE Communication Harness RJ45
