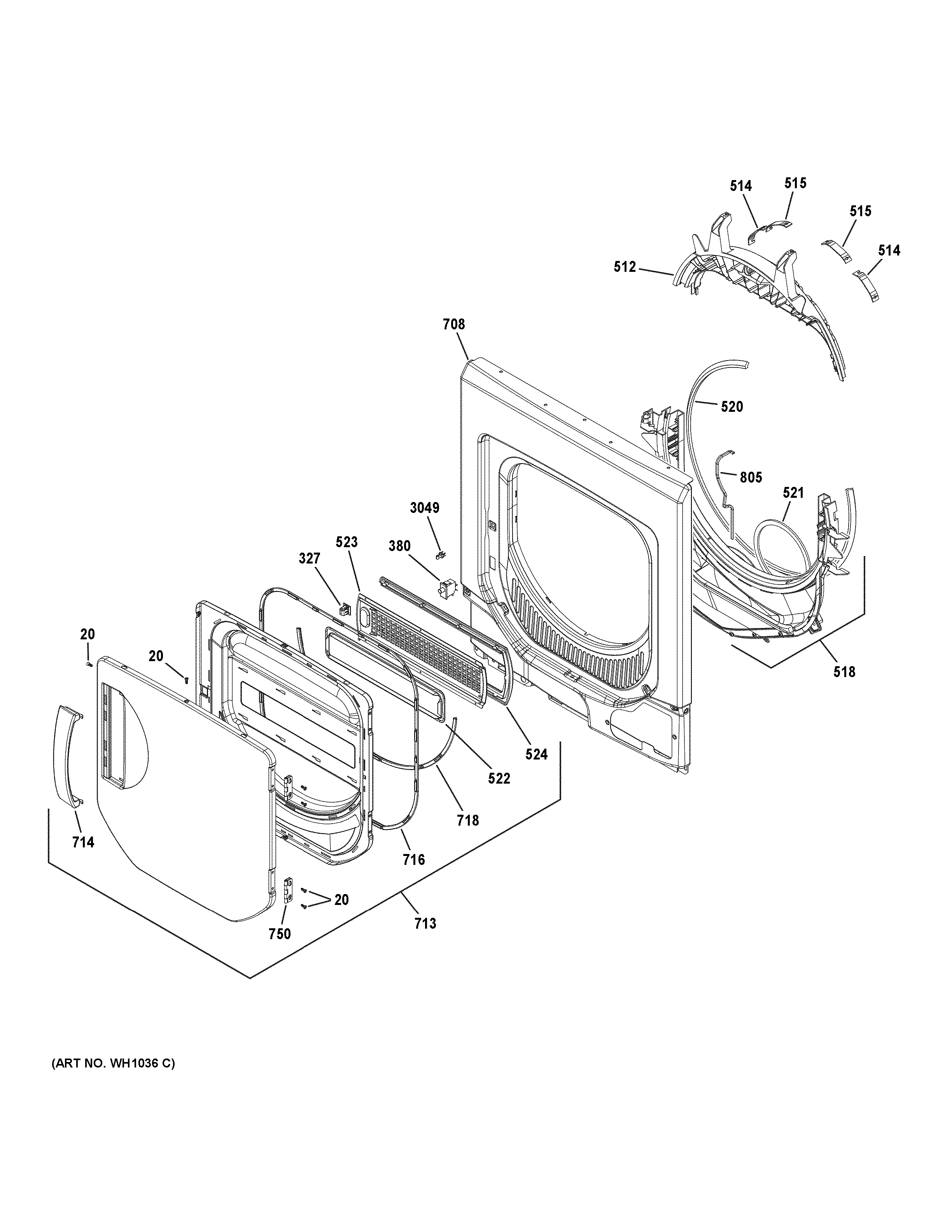

GUD24ESSM0WW DRYER FRONT PANEL & DOOR

GUD24ESSM0WW DRYER FRONT PANEL & DOOR

Written by

in

GUD24ESSM0WW DRYER FRONT PANEL & DOOR

Products

PositionProduct
20WE2M302 GE Screw
327WE1M1011 GE Washer Dryer Door Latch
380WE4M415 GE Washer Door Switch
512WE03X25099 GE Washer Top Bearing
514WE03X37319 GE Dryer Bearing Slide 2-Pack
515WE03X37320 GE Dryer Bearing Slide 2-Pack
518WE14X25091 GE Duct Trap Assembly
520FELT TRAP DUCT
521WE1M999 GE Washer Dryer Exhaust Gasket
522WE18X20437 GE Washer Lint Filter
523WE22X35337 GE Grid Assembly
708WE20M467 GE Front Panel
713WE10M150 GE Door Assembly
714WE01X30378 GE Door Handle
716WE9M58 GE Washer Door Gasket
718WE9M59 GE Washer Lower Door Gasket
750WE1M1033 GE Hinge
805HARNESS DOOR ASM
3049WE1X1192 GE Dryer Door Strike
