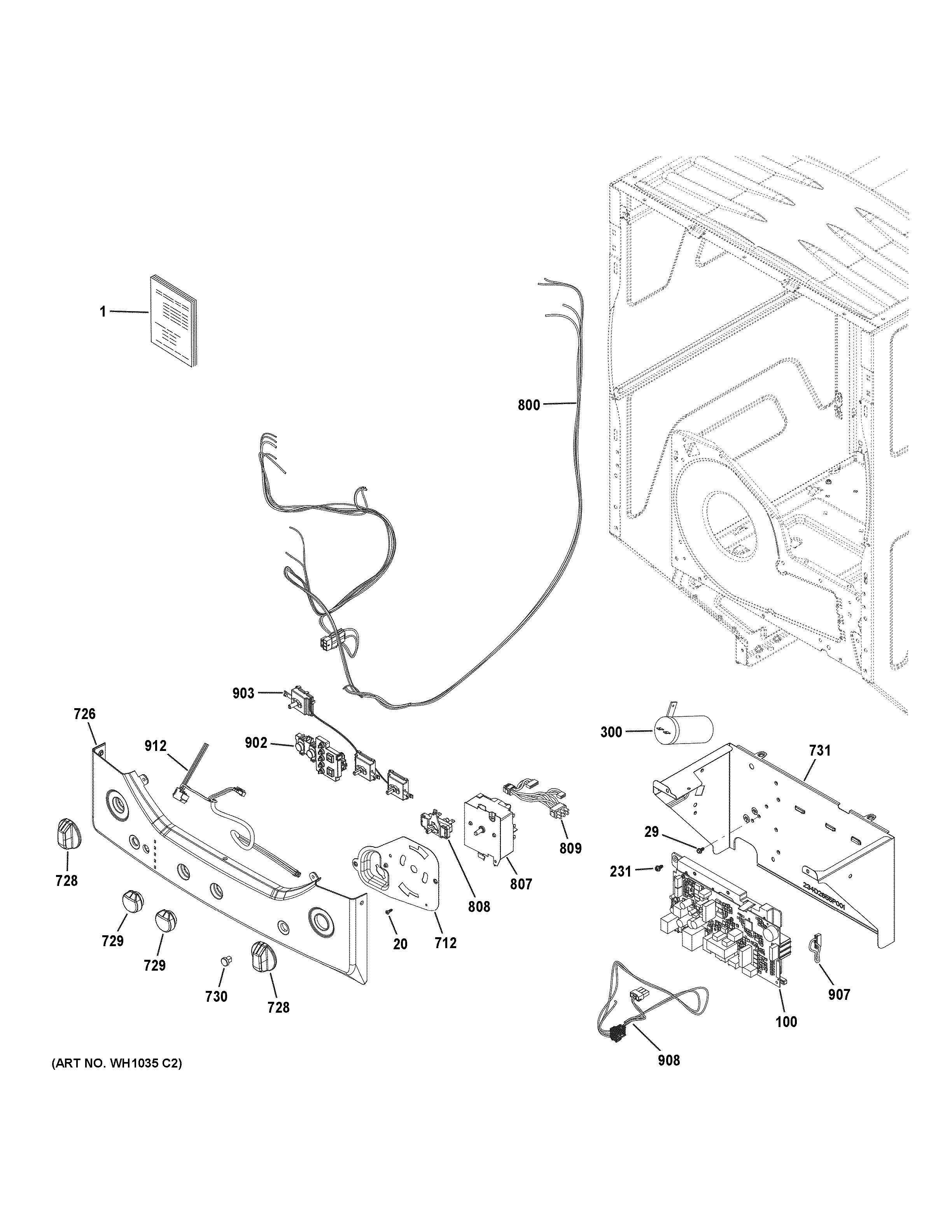

GUD24GSSM0WW CONTROLS & BACKSPLASH

Products

Position	Product
1	PUB NUMBER PM INSTALLATION INSTRUCTION
1	PUB NUMBER MANUAL USE & CARE
1	PUB NUMBER PM MINI MANUAL
20	WE2M302 GE Screw
29	WB01K10042 GE Oven Screw 3/8" AB IHW 8-18
100	BOARD & SUPPORT ASSEMBLY
231	WE01X25535 GE Screw
300	WH12X27299 GE Capacitor
712	WE19M1696 GE Control Support
726	WE20X27260 GE Control and HT Assembly
728	WE04X23115 GE Control Knob Assembly
729	WE04X23116 GE Rotary Knob Assembly
730	WE04X27654 GE Assembly Start Button
731	ENCLOSURE BOARD 24"
800	WE08X29057 GE Dryer Main Gas Harness
807	WE04X22654 GE Washer Timer
808	PUSH TO START SWITCH
809	WE26M363 GE UI Harness Assembly
902	UI BOARD GE ASM
903	WH18X27241 GE Selector Assembly
907	WE15X27301 GE Jumper Harness
908	WE15X27306 GE Harness Extension
912	WE15X27258 GE Communication Harness RJ45
