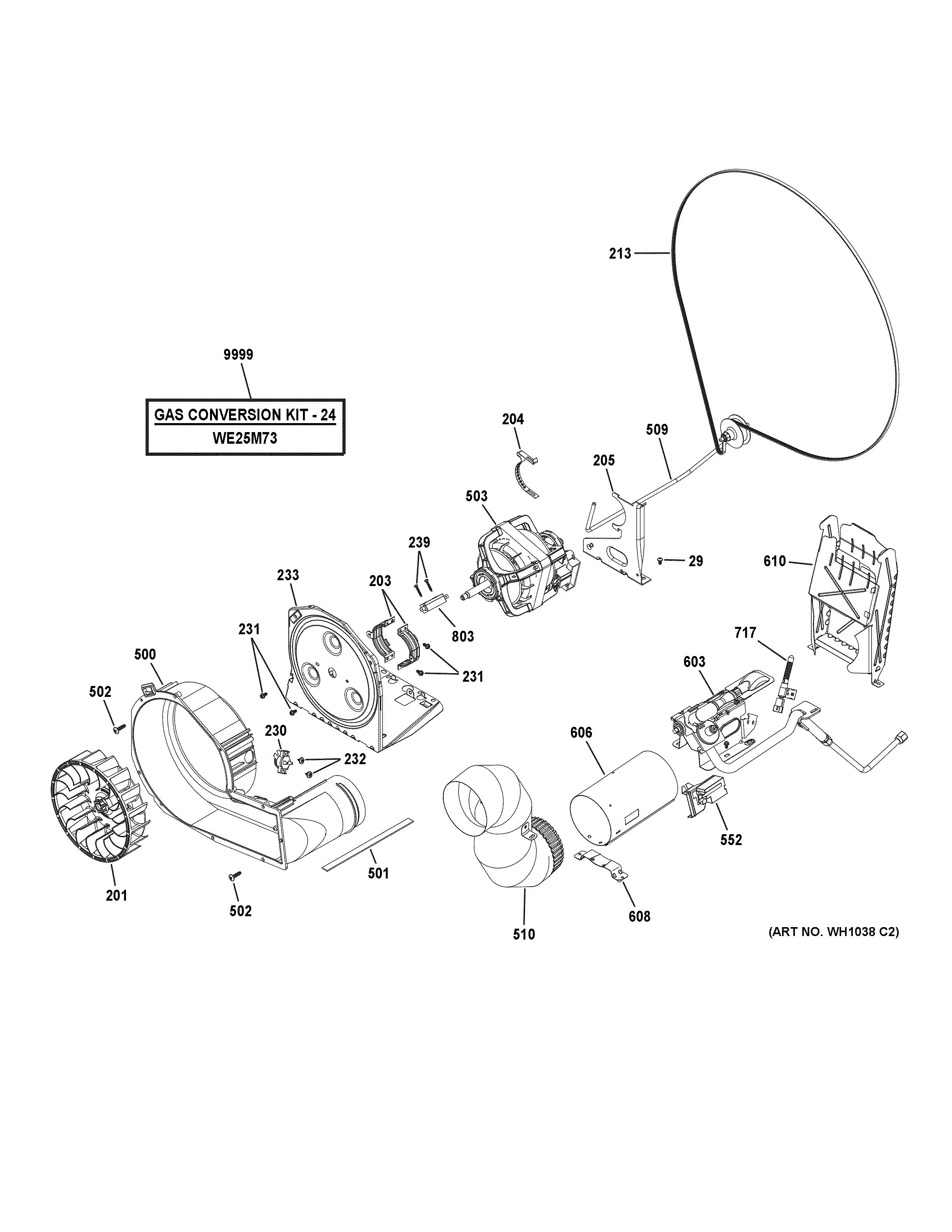

GUD24GSSM0WW GAS VALVE, BLOWER & MOTOR ASSEMBLY

GUD24GSSM0WW GAS VALVE, BLOWER & MOTOR ASSEMBLY

Written by

in

GUD24GSSM0WW GAS VALVE, BLOWER & MOTOR ASSEMBLY

Products

PositionProduct
29WB01K10042 GE Oven Screw 3/8" AB IHW 8-18
201BLOWER WHEEL
203WE13X200 GE Motor Strap
204WE1X921 GE Motor Strap
205WE13M39 GE Motor Support
213BELT DRIVE
230WE4M216 GE Dryer Bias Thermostat
231WE01X25535 GE Screw
232WE2M202 GE Screw
233WE03X27285 GE Motor Plate
239WR2X9260 GE Refrigerator Screw
500WE16X27272 GE Blower Housing
501WE09X27636 GE Exhaust Blower Gasket
502WE2M174 GE Screw #10
503WE17X22214 GE Motor and Pulley
509WE03X27417 GE Idler Arm Assembly
510WE14X27555 GE Exhaust Duct
552WE4X448 GE Heat Detector Assembly
603WE03X27426 GE Valve and Burner Assembly
606CHAMBER COMBUSTION
608BRACKET COMBUSTION CHAMB
610WE14M195 GE Duct Transition
717WE04X25996 GE Washer Igniter
803WD21X10261 GE Dishwasher Interlock Switch
9999WE25M73 GE 24" Gas Conversion Kit
