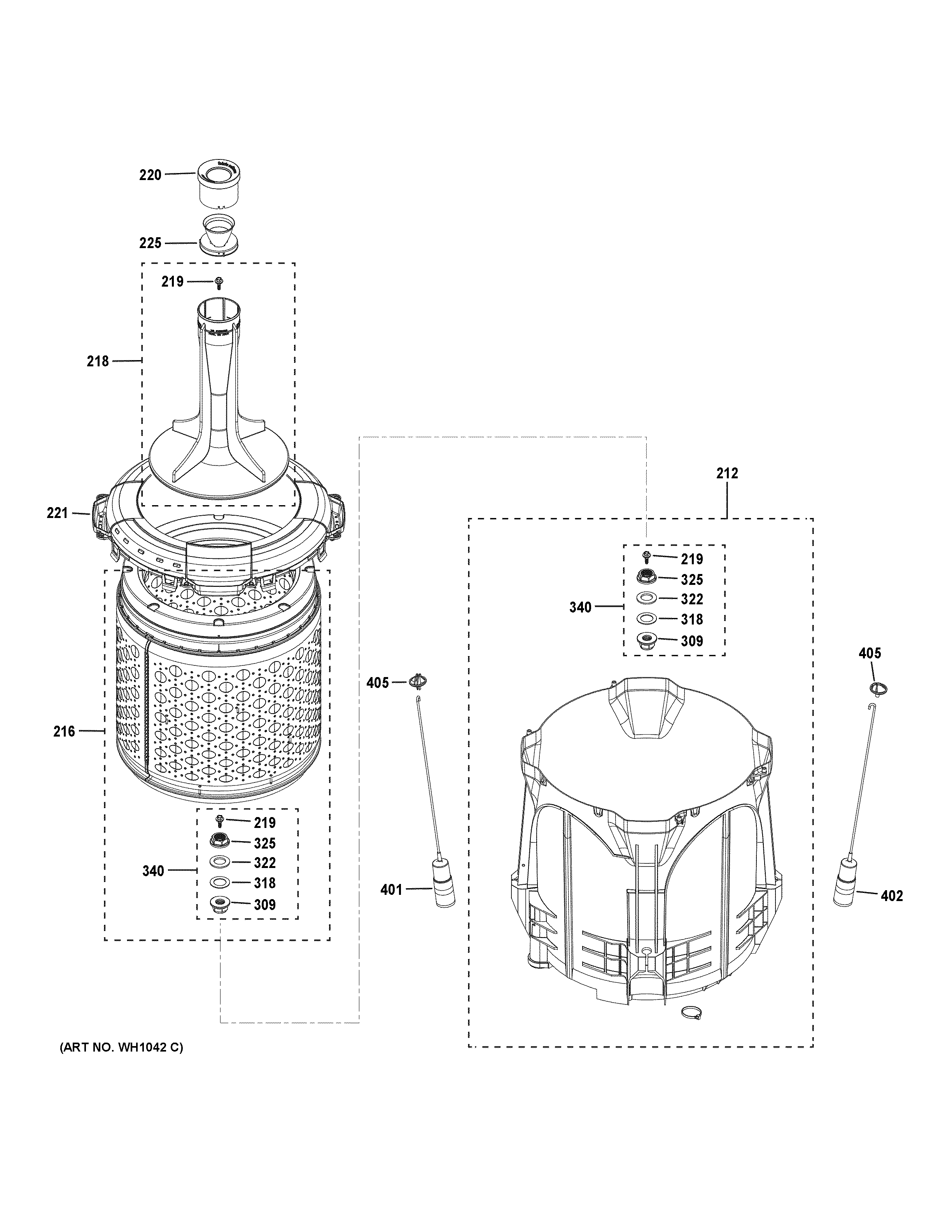

GUD24GSSM0WW TUB & BASKET ASSEMBLY

GUD24GSSM0WW TUB & BASKET ASSEMBLY

Written by

in

GUD24GSSM0WW TUB & BASKET ASSEMBLY

Products

PositionProduct
212WH49X27328 GE Washer Agitator Hub Nut and Tub Kit
216WH49X27326 GE Washer Basket Hub Nut Kit
218WH49X27324 GE Agitator Kit 24 & Bolt
219WH01X27309 GE Agitator Screw
220WH03X27184 GE Cap Funnel Assembly
221WH44X27239 GE Tub Cover
225WH03X27183 GE FSD Cup Funnel
309WE02X27298 GE Pulley Nut
318WH01X27307 GE Washer Hub
322WH01X27289 GE Washer Conical
325WE01X27288 GE Nut Hub
340WE49X28115 GE Hardware Kit
401ROD ASSEMBLY 24"
402WH16X27181 GE Washer Rod Assembly
405WH16X27178 GE Washer Upper Ball Joint
