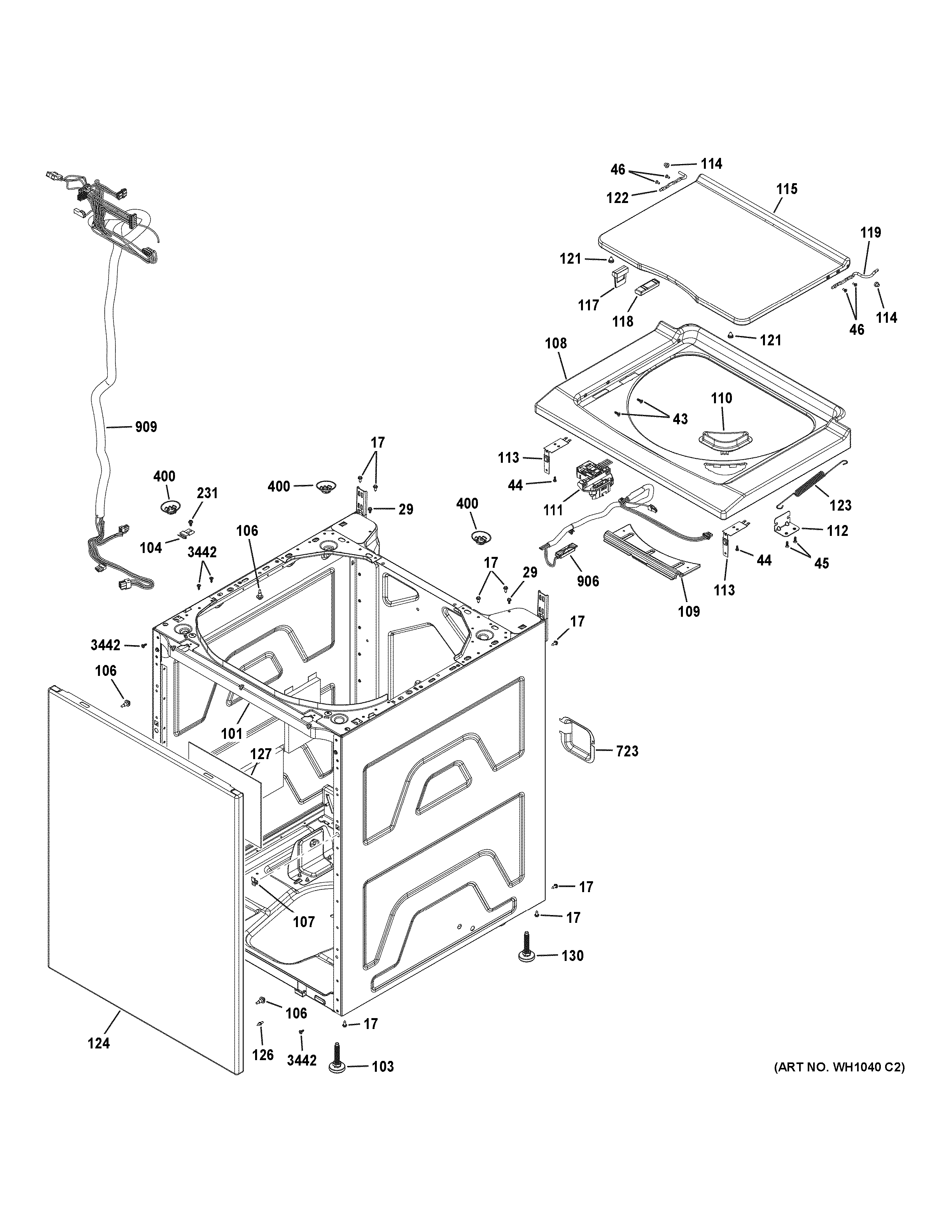

GUD24GSSM0WW WASHER CABINET & LID

Products

Position	Product
17	WH2X1217 GE Screw Assembly
29	WB01K10042 GE Oven Screw 3/8" AB IHW 8-18
44	WE2M282 GE Screw 6-18 B B1Q1 3/4 S ZN
45	WH01X10631 GE Screw 8-16 B FLP .525 S ZN
46	WH2X1211 GE Screw
101	WH16X10144 GE Upper Front Brace
103	WH01X10594 GE Leg Leveling
104	WH01X10595 GE Locking Clip
106	WH01X10596 GE Appliance Pin Alignment
107	WH01X10597 GE Ground Clip
108	WH49X27330 GE Top Cover Wire Ties 24
109	KIT BRACKET AND SPACER LC 24
110	WH01X10621 GE Bleach Funnel
111	WH44X10288 GE Washer Lid Lock
112	WH16X10153 GE Spring Bracket
113	WH01X10623 GE Cover Clip
114	WH01X10625 GE Hinge Bushing
115	WH44X10285 GE Washer Lid
117	WH43X10057 GE Washer Actuator
118	WH01X10626 GE Washer Magnet
119	WH44X10289 GE Hinge Washer Cover Right Hand
121	WH01X10627 GE Bumper Lid
122	WH44X10290 GE Left Hand Hinge Washer Cover
123	WH01X10628 GE Spring Cover Assembly
124	WH42X10885 GE Front Panel Assembly
126	WH02X10347 GE Washer Grounding Stud
127	WH01X10630 GE Damper Pad
130	WE01X25234 GE Rear Levelling Leg
231	WE01X25535 GE Screw
400	WH01X27305 GE Ball Joint Seat
723	WE1M1008 GE Fuse Terminal Cover
906	WH19X27244 GE Washer Lid Lock Harness
909	WH19X27243 GE Washer Main Harness JST 24"
3442	WE2M281 GE Screw 8-18 AB
