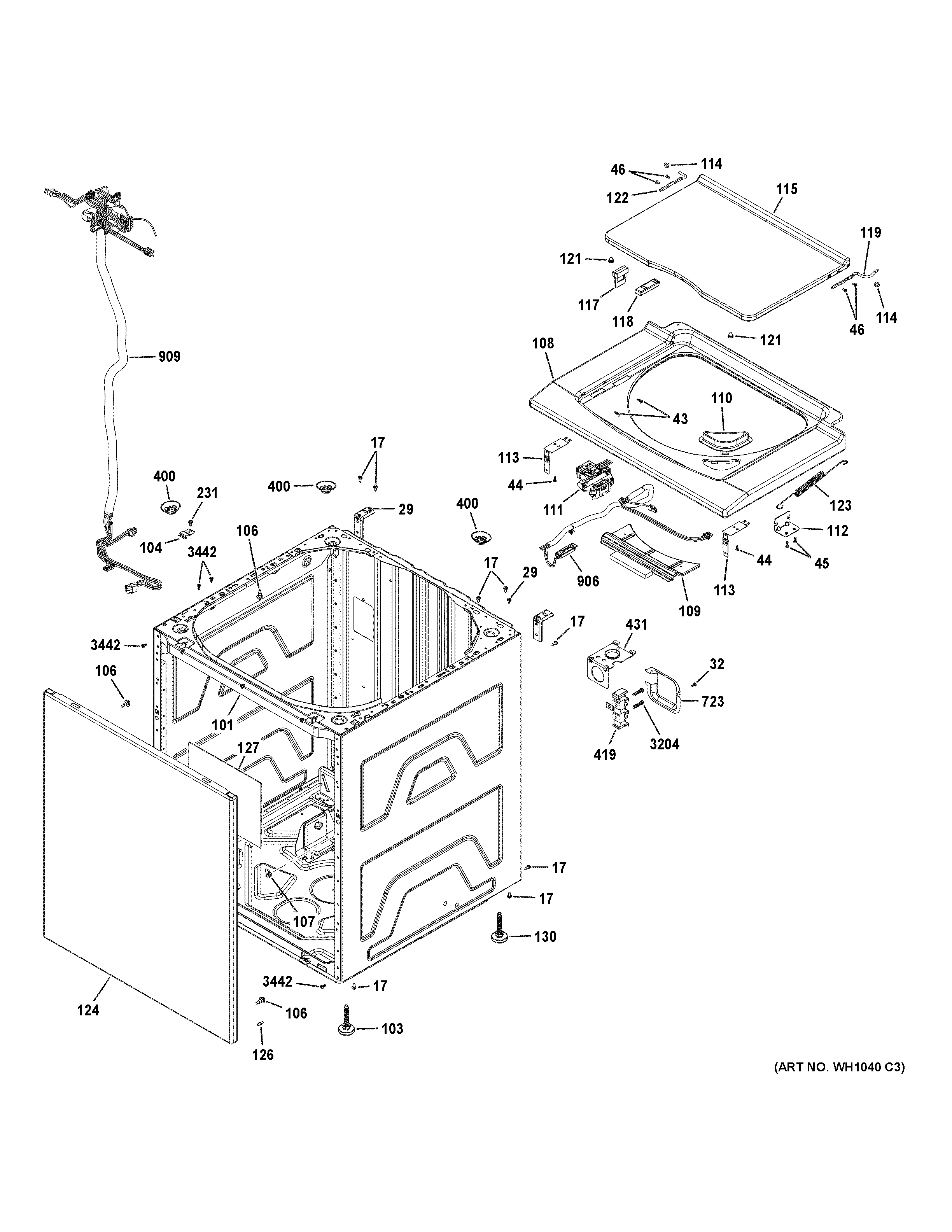

GUD27EESN0WW WASHER CABINET & LID

Products

Position	Product
17	WH2X1217 GE Screw Assembly
29	WB01K10042 GE Oven Screw 3/8" AB IHW 8-18
32	WH01X10593 GE Screw 12-14 B
44	WE2M282 GE Screw 6-18 B B1Q1 3/4 S ZN
45	WH01X10631 GE Screw 8-16 B FLP .525 S ZN
46	WH2X1211 GE Screw
101	WH16X10143 GE Upper Front Brace
103	WH01X10594 GE Leg Leveling
104	WH01X10595 GE Locking Clip
106	WH01X10596 GE Appliance Pin Alignment
107	WH01X10597 GE Ground Clip
108	WH49X27331 GE Top Cover Wire Ties
109	WH13X35357 GE Cover Bracket
110	WH01X10621 GE Bleach Funnel
111	WH44X10288 GE Washer Lid Lock
112	WH16X10153 GE Spring Bracket
113	WH01X10623 GE Cover Clip
114	WH01X10625 GE Hinge Bushing
115	WH13X30373 GE Washer Lid
117	WH43X10057 GE Washer Actuator
118	WH01X10626 GE Washer Magnet
119	WH44X10289 GE Hinge Washer Cover Right Hand
121	WH01X10627 GE Bumper Lid
122	WH44X10290 GE Left Hand Hinge Washer Cover
123	WH01X10628 GE Spring Cover Assembly
124	WH42X10886 GE Front Panel Assembly
126	WH02X10347 GE Washer Grounding Stud
127	WH01X10630 GE Damper Pad
130	WE01X25234 GE Rear Levelling Leg
231	WE01X25535 GE Screw
400	WH01X27305 GE Ball Joint Seat
419	WE4M525 GE Black Terminal and Ground Strap
431	WE01X20423 GE Strain Relief Bracket
723	WE1M1009 GE Fuse Terminal Cover
906	WH19X27244 GE Washer Lid Lock Harness
909	WH19X27242 GE Washer Main JST 27 Harness
3204	WZ4X241D GE Screw Package
3442	WE2M281 GE Screw 8-18 AB
