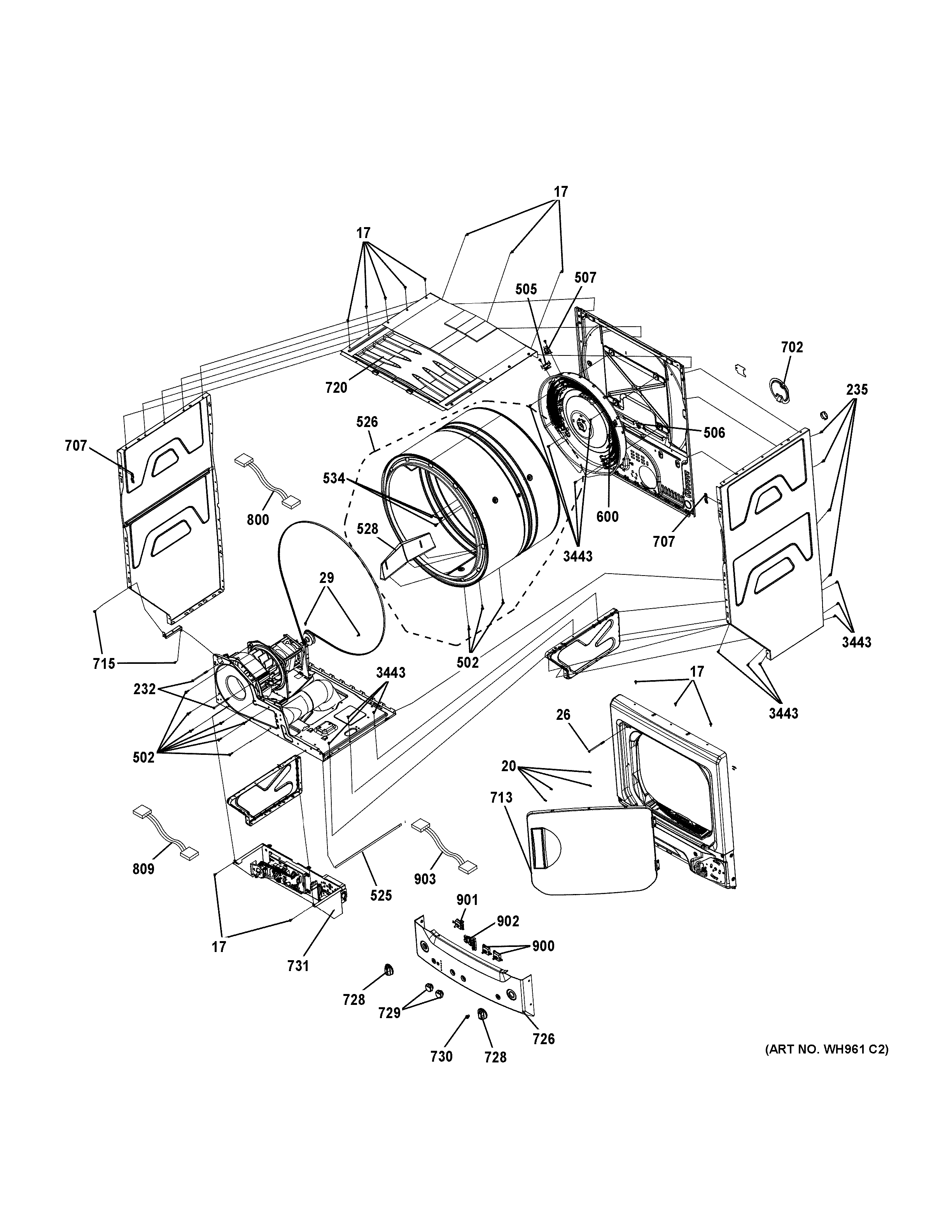

GUD27ESSJ0WW CABINET (1)

GUD27ESSJ0WW CABINET (1)

Written by

in

GUD27ESSJ0WW CABINET (1)

Products

PositionProduct
17WH2X1217 GE Screw Assembly
20WE2M302 GE Screw
26WE2M304 GE Screw 8-18 AB OVQ1 2 S ZN
29WB01K10042 GE Oven Screw 3/8" AB IHW 8-18
232WE2M202 GE Screw
235WE2X263D GE Screw Package 12 C92
502WE2M174 GE Screw #10
505WE4M181 GE Cycling Thermostat
506GEN WE4M137?
507LEFT SAFETY THERMOSTAT 24"
525WE1M999 GE Washer Dryer Exhaust Gasket
526WE21X28957 GE Drum Assembly
528WE21M39 GE Baffle
534WE2M163 GE Washer Screw
600WE11M62 GE Heater and Housing Assembly
702WE1M1004 GE Exhaust Cover
707WE2M301 GE Front Panel Clip
713WE10M151 GE Door Assembly
715WD2M101 GE Dishwasher Screw
720WE10X32277 GE Washer White Top Panel
726WE19X22737 GE Washer Control and Heating Element Assembly
728WE04X23115 GE Control Knob Assembly
729WE04X23116 GE Rotary Knob Assembly
730WE04X23114 GE Start Button Assembly
731WE19M1773 GE Enclosure Board
800WE26X20716 GE Washer Main Harness Assembly
809WE26M362 GE UI Harness Assembly
900WH12X10509 GE Switch Selector
901WH12X10510 GE Washer Selector Switch
902WE01X23117 GE Selector Button
903WH19X10081 GE Selector Harness
3443WE1M280 GE Screw
