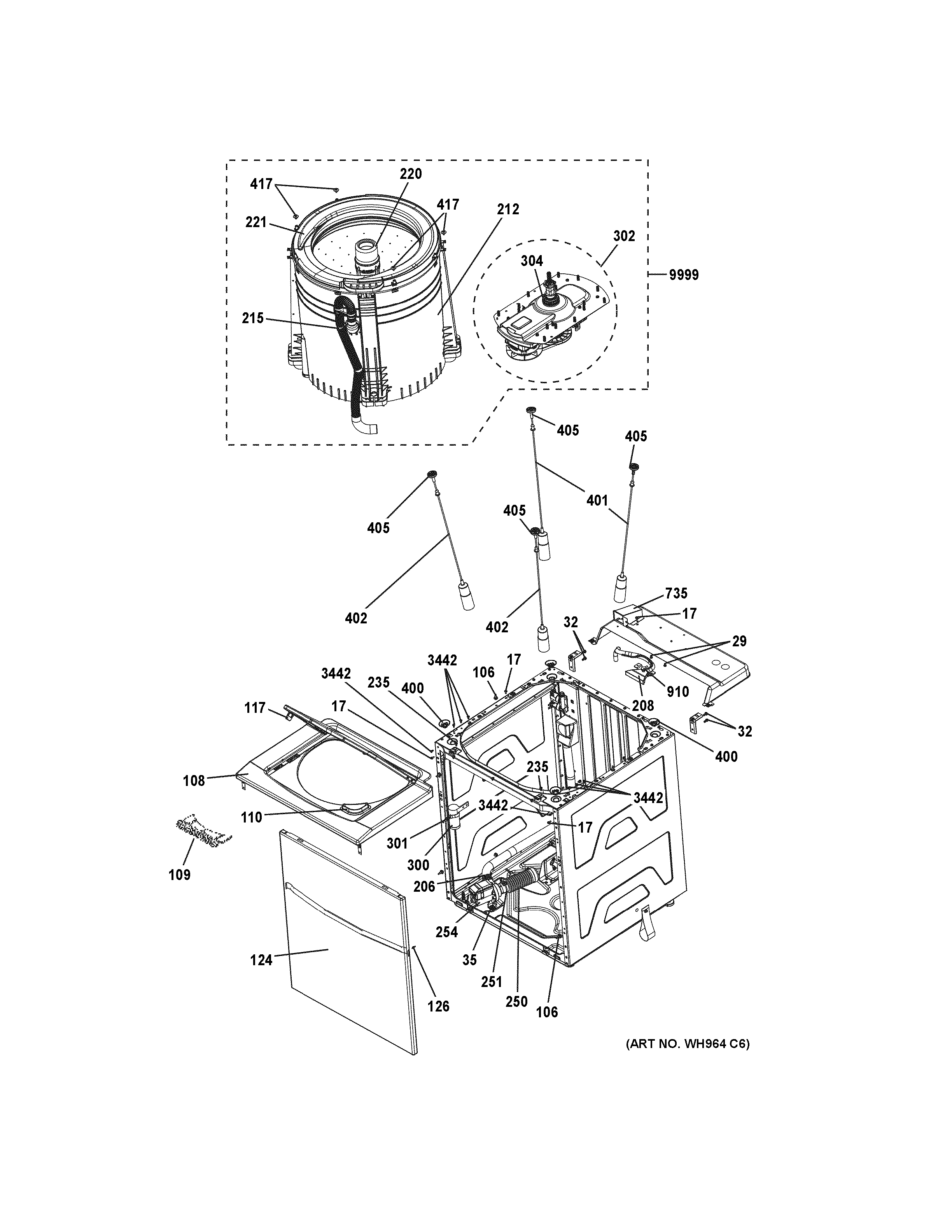

GUD27ESSJ0WW CABINET (4)

GUD27ESSJ0WW CABINET (4)

Written by

in

GUD27ESSJ0WW CABINET (4)

Products

PositionProduct
17WH2X1217 GE Screw Assembly
29WB01K10042 GE Oven Screw 3/8" AB IHW 8-18
32WH01X10593 GE Screw 12-14 B
35WH01X10600 GE Screw 8-18 HXW 3/8 S ZN
106WH01X10596 GE Appliance Pin Alignment
108WH44X10282 GE Top Panel
109WH16X10157 GE Bracket Assembly
110WH01X10621 GE Bleach Funnel
117WH43X10057 GE Washer Actuator
124WH42X10886 GE Front Panel Assembly
126WH02X10347 GE Washer Grounding Stud
206WH01X10599 GE Clamp
208WATER INLET ASSEMBLY
212WH45X10149 GE Washer 27" Tub
215WH01X10605 GE Elbow Overflow
220WH44X10287 GE Fabric Softener Dispenser
221WH44X27617 GE Tub Cover Assembly
235WE2X263D GE Screw Package 12 C92
250WH41X10280 GE Washer Tub to Pump Hose
251WH01X10598 GE Clamp
254PUMP DRAIN
300WH12X10513 GE Run Capacitor
301WH01X10601 GE Capacitor Clip
302WH49X22795 GE Support Assembly
304WH08X24594 GE Washer Tub Seal
400WH01X10602 GE Seat Ball Joint
401WH16X22789 GE Washer Rod Assembly
402WH16X22792 GE Washer Rod Assembly
405WH01X10620 GE Support Socket Rod
417GEN WH02X0694
735WE1M1000 GE Main Harness Cover
910THERMISTOR ASM
3442WE2M281 GE Screw 8-18 AB
9999WH45X24614 GE 27" LC Transmission and Tub
