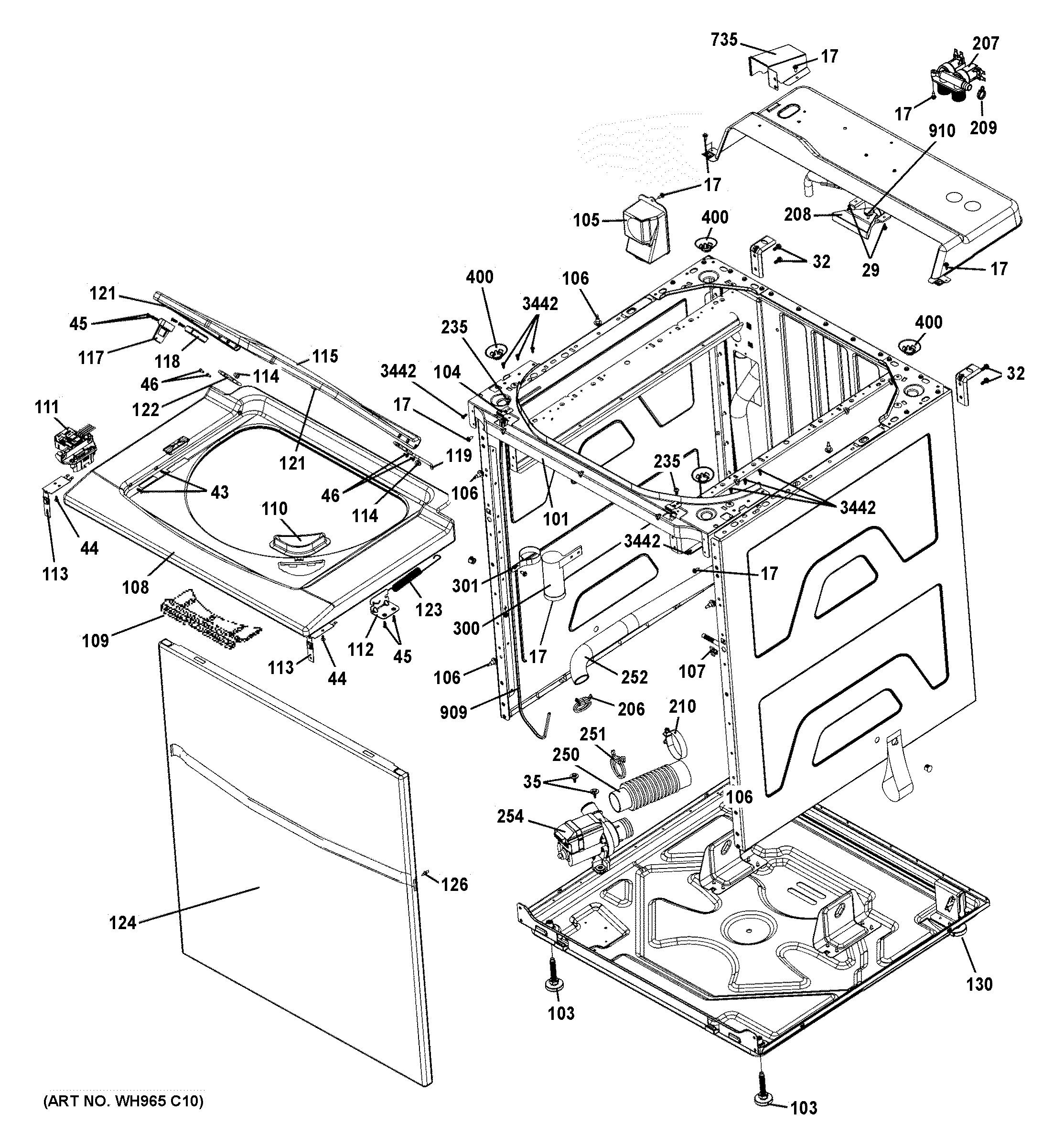

GUD27ESSJ0WW CABINET (5)

GUD27ESSJ0WW CABINET (5)

Written by

in

GUD27ESSJ0WW CABINET (5)

Products

PositionProduct
17WH2X1217 GE Screw Assembly
29WB01K10042 GE Oven Screw 3/8" AB IHW 8-18
32WH01X10593 GE Screw 12-14 B
35WH01X10600 GE Screw 8-18 HXW 3/8 S ZN
44WH01X10624 GE Screw 6-20 B TRT 3/8 S
45WH01X10631 GE Screw 8-16 B FLP .525 S ZN
46WH2X1211 GE Screw
101WH16X10143 GE Upper Front Brace
103WH01X10594 GE Leg Leveling
104WH01X10595 GE Locking Clip
105WH44X10280 GE Hose Cover
106WH01X10596 GE Appliance Pin Alignment
107WH01X10597 GE Ground Clip
108WH44X10282 GE Top Panel
109WH16X10157 GE Bracket Assembly
110WH01X10621 GE Bleach Funnel
111WH44X10288 GE Washer Lid Lock
112WH16X10153 GE Spring Bracket
113WH01X10623 GE Cover Clip
114WH01X10625 GE Hinge Bushing
115WH13X30373 GE Washer Lid
117WH43X10057 GE Washer Actuator
118WH01X10626 GE Washer Magnet
119WH44X10289 GE Hinge Washer Cover Right Hand
121WH01X10627 GE Bumper Lid
122WH44X10290 GE Left Hand Hinge Washer Cover
123WH01X10628 GE Spring Cover Assembly
124WH42X10886 GE Front Panel Assembly
126WH02X10347 GE Washer Grounding Stud
130WE01X25234 GE Rear Levelling Leg
206WH01X10599 GE Clamp
207VALVE 2-1
208WATER INLET ASSEMBLY
209WH01X10649 GE Clamp
210WH01X10603 GE Tub Outlet Clamp
235WE2X263D GE Screw Package 12 C92
250WH41X10280 GE Washer Tub to Pump Hose
251WH01X10598 GE Clamp
252WH41X26574 GE Washer Dryer Drain Hose Assembly
254PUMP DRAIN
300WH12X10513 GE Run Capacitor
301WH01X10601 GE Capacitor Clip
400WH01X10602 GE Seat Ball Joint
735WE1M1000 GE Main Harness Cover
909WH49X10101 GE Harness Assembly Principal
910THERMISTOR ASM
3442WE2M281 GE Screw 8-18 AB
