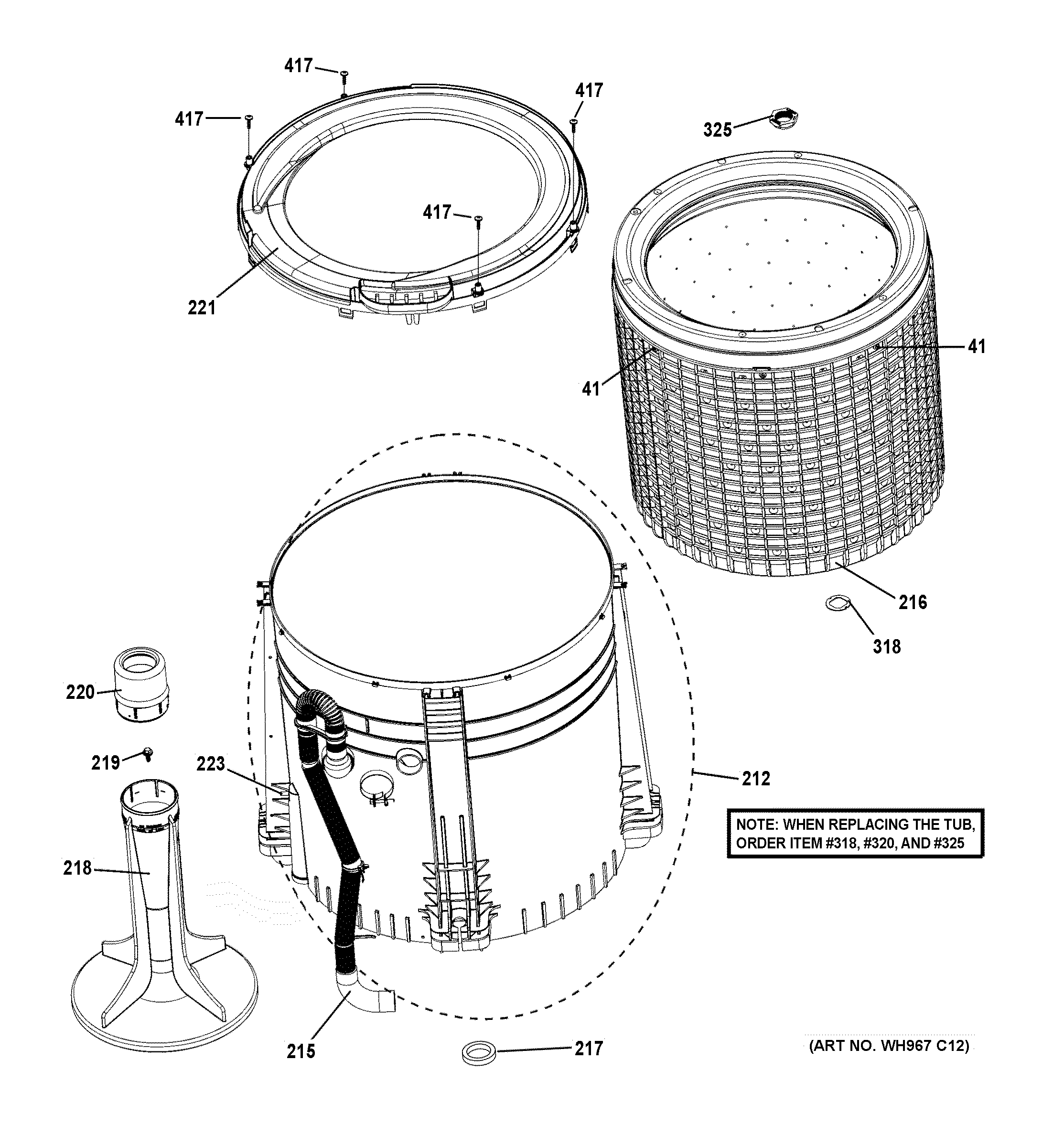

GUD27ESSJ0WW TUB, BASKET & AGITATOR

GUD27ESSJ0WW TUB, BASKET & AGITATOR

Written by

in

GUD27ESSJ0WW TUB, BASKET & AGITATOR

Products

PositionProduct
41WH01X10610 GE Screw 9-15 Twin HEL 3/4
212WH45X10149 GE Washer 27" Tub
215WH01X10605 GE Elbow Overflow
216WH45X23154 GE Basket Assembly
217WE09X21594 GE Gasket
218WH43X10056 GE Washer Dryer Combo Agitator
219WH01X10619 GE Washer Agitator Screw Assembly
220WH44X10287 GE Fabric Softener Dispenser
221WH44X27617 GE Tub Cover Assembly
223WH16X10152 GE Hose Press Clamp
318WH01X22787 GE Washer Hub
325WH01X10618 GE Washer Hub Nut
417GEN WH02X0694
