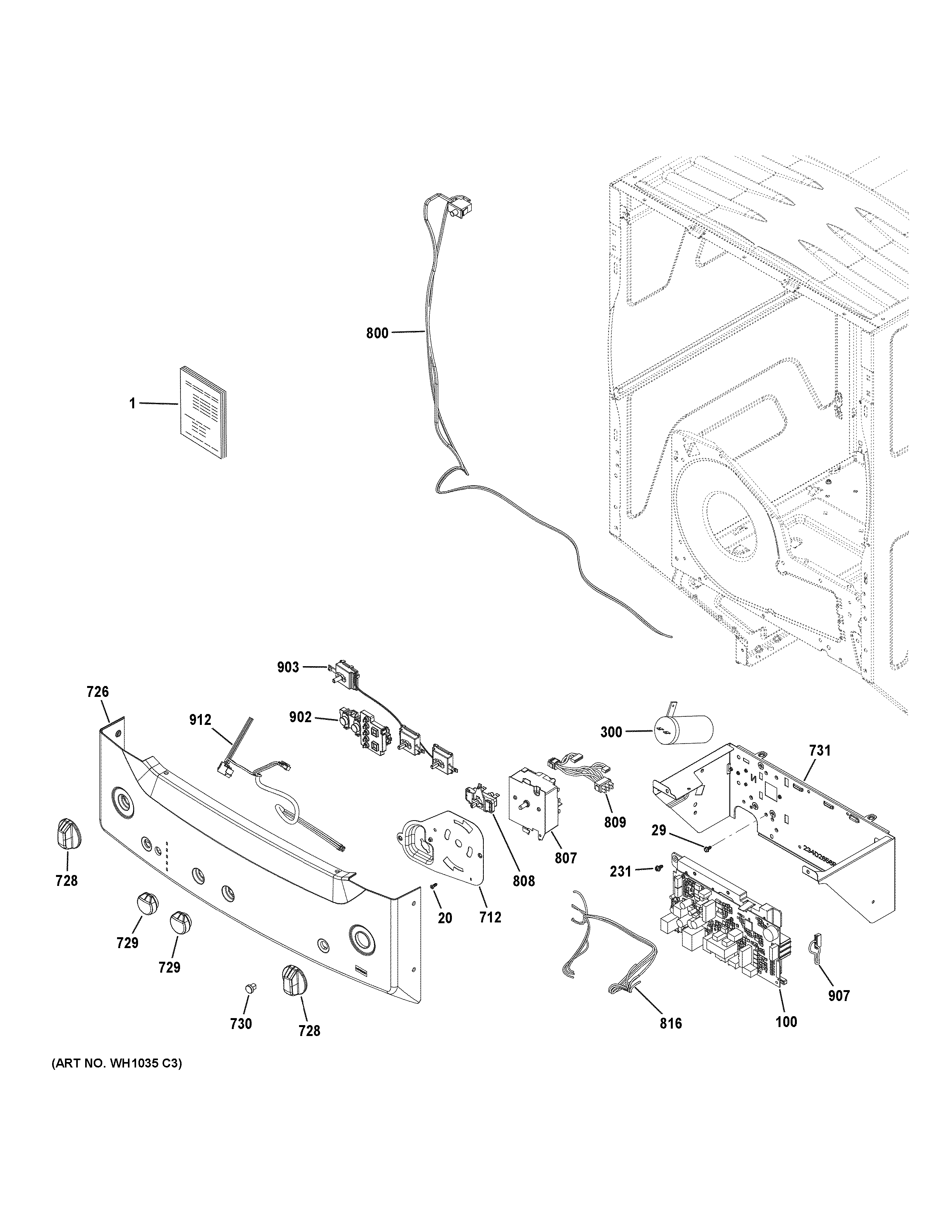

GUD27ESSM0WW CONTROLS & BACKSPLASH

Products

Position	Product
1	PUB NUMBER PM MINI MANUAL
1	PUB NUMBER MANUAL USE & CARE
1	PUB NUMBER PM INSTALLATION INSTRUCTION
20	WE2M302 GE Screw
29	WB01K10042 GE Oven Screw 3/8" AB IHW 8-18
100	BOARD & SUPPORT ASSEMBLY
231	WE01X25535 GE Screw
300	WH12X27299 GE Capacitor
712	WE19M1696 GE Control Support
726	WE20X27259 GE Control Panel Assembly
728	WE04X23115 GE Control Knob Assembly
729	WE04X23116 GE Rotary Knob Assembly
730	WE04X27654 GE Assembly Start Button
731	WE04X27287 GE 27" Enclosure Board
800	WE08X29053 GE Dryer Main Electric Harness
807	WE04X22654 GE Washer Timer
808	PUSH TO START SWITCH
809	WE15X27237 GE Electric UI Harness Assembly
816	WH19X27249 GE Electric Fuse Harness 27"
902	UI BOARD GE ASM
903	WH18X27241 GE Selector Assembly
907	WE15X27302 GE Jumper Harness 27"
912	WE15X27258 GE Communication Harness RJ45
