GUD27GESN0WW CONTROLS & BACKSPLASH

GUD27GESN0WW CONTROLS & BACKSPLASH

Written by

in

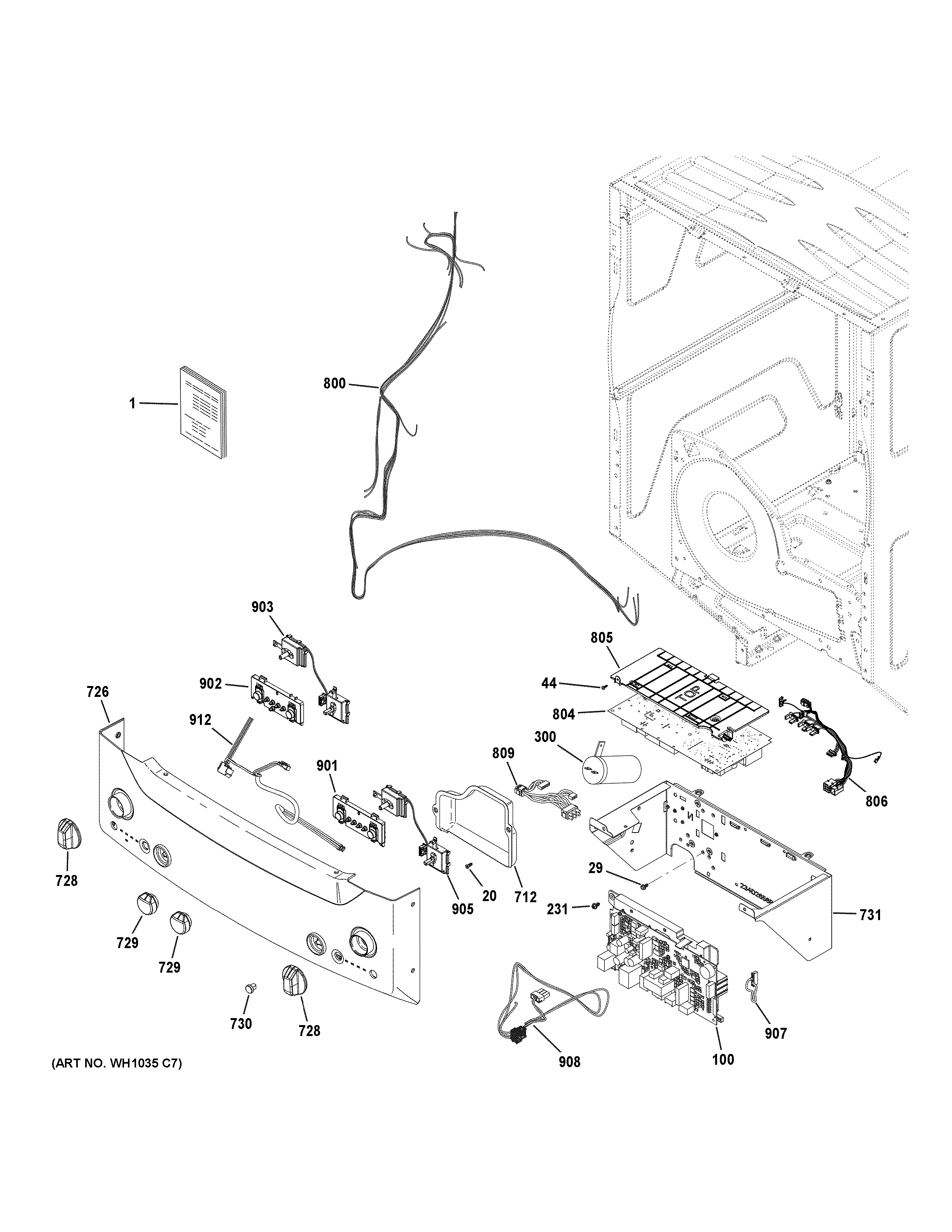

GUD27GESN0WW CONTROLS & BACKSPLASH

Products

PositionProduct
1PM MINI MANUAL
1PUB NUMBER MANUAL USE & CARE
1PUB NUMBER PM INSTALLATION INSTRUCTION
20WE2M302 GE Screw
29WB01K10042 GE Oven Screw 3/8" AB IHW 8-18
44WE2M282 GE Screw 6-18 B B1Q1 3/4 S ZN
100WH22X28676 GE Washer Main Board and Support
231WE01X25535 GE Screw
300WH12X27299 GE Capacitor
712CONTROLS SUPPORT
726WE22X28665 GE Control Panel 27"
728WE04X23115 GE Control Knob Assembly
729WE04X23116 GE Rotary Knob Assembly
730WE04X27654 GE Assembly Start Button
731WE04X27287 GE 27" Enclosure Board
800WE08X28675 GE Gas Dryer Main Harness
804WE22X32938 GE Control Board and Chassis
805DRYER MAIN BOARD BRACKET
806GAS DRYER JUMPER HARNESS
809WE26M362 GE UI Harness Assembly
901WE22X28668 GE Dryer User Interface Board
902WH22X28667 GE Washer UI Board
903WH04X28666 GE Washer Selector
905WE22X28861 GE Selector Switch Assembly
907WE15X28674 GE 27" Jumper Harness Software
908WE15X27306 GE Harness Extension
912WE08X28669 GE Dryer RJ45 Harness and Connector
