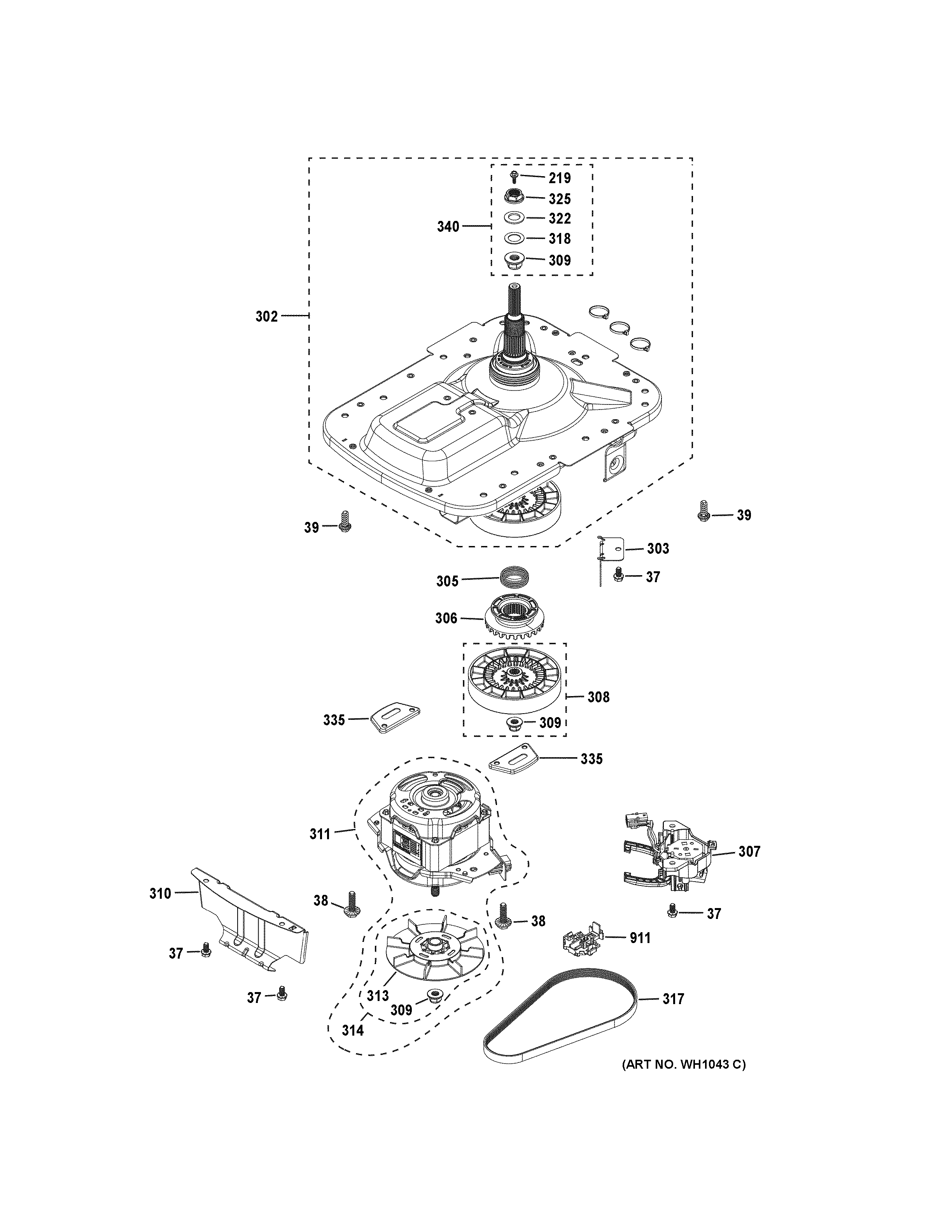

GUD27GSPM0DG MOTOR & DRIVE ASSEMBLY

GUD27GSPM0DG MOTOR & DRIVE ASSEMBLY

Written by

in

GUD27GSPM0DG MOTOR & DRIVE ASSEMBLY

Products

PositionProduct
37WH01X10612 GE Taptite Screw
38WH01X27310 GE Hex Screw 5/16-18
39WH01X10616 GE HEX PT Screw K80 X 3.59
219WH01X27309 GE Agitator Screw
302WH49X27322 GE Transmission Platform Kit
303WH18X27313 GE Connector Bracket
305WH01X10606 GE Washer Spring Shifter
306WH05X27185 GE Washer Clutch
307MODE SHIFTER
308KIT TRANSMISSION PULLEY NUT WA
309WE02X27298 GE Pulley Nut
310WH16X24155 GE Washer Motor Shield
311WH49X27319 GE Washer Motor and Pulley Kit
313WH01X27247 GE Fan Assembly Magnet
314WH49X27554 GE Motor Pulley and Nut Kit
317WE12X27300 GE Washer Drive Belt
318WH01X27307 GE Washer Hub
322WH01X27289 GE Washer Conical
325WE01X27288 GE Nut Hub
335WE01X27311 GE Motor Bracket
340WE49X28115 GE Hardware Kit
911WH12X27187 GE Washer Speed Sensor
