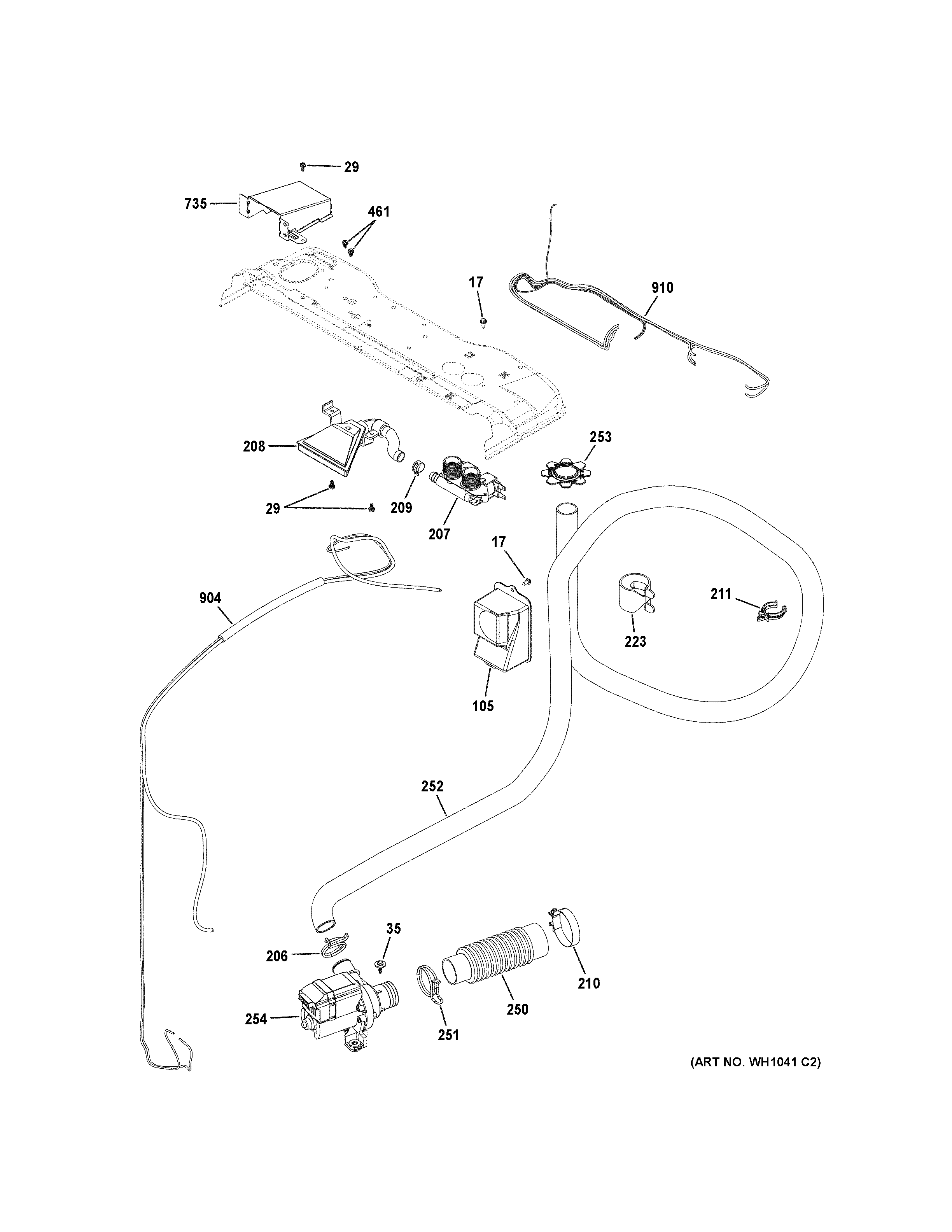

GUD27GSPM1DG WATER SYSTEM

GUD27GSPM1DG WATER SYSTEM

Written by

in

GUD27GSPM1DG WATER SYSTEM

Products

PositionProduct
17WH2X1217 GE Screw Assembly
29WB01K10042 GE Oven Screw 3/8" AB IHW 8-18
35WH01X10600 GE Screw 8-18 HXW 3/8 S ZN
105WH44X10280 GE Hose Cover
206WH01X10599 GE Clamp
207VALVE 2-1
208WH13X27418 GE Water Inlet Assembly
209WH01X10649 GE Clamp
210WH01X10603 GE Tub Outlet Clamp
211WH01X10604 GE Clip Drain Hose
223WH16X10152 GE Hose Press Clamp
250WH41X10280 GE Washer Tub to Pump Hose
251WH01X10598 GE Clamp
252WH41X26574 GE Washer Dryer Drain Hose Assembly
253WH41X10282 GE Drain Hose Stop
254PUMP DRAIN
461WZ5X158D GE Screw Package of 12
735COVER HARNESS MAIN
904WH19X27246 GE Pressure Pump and Hose Harness
910WATER VALVE & THERMISTOR HARNE
