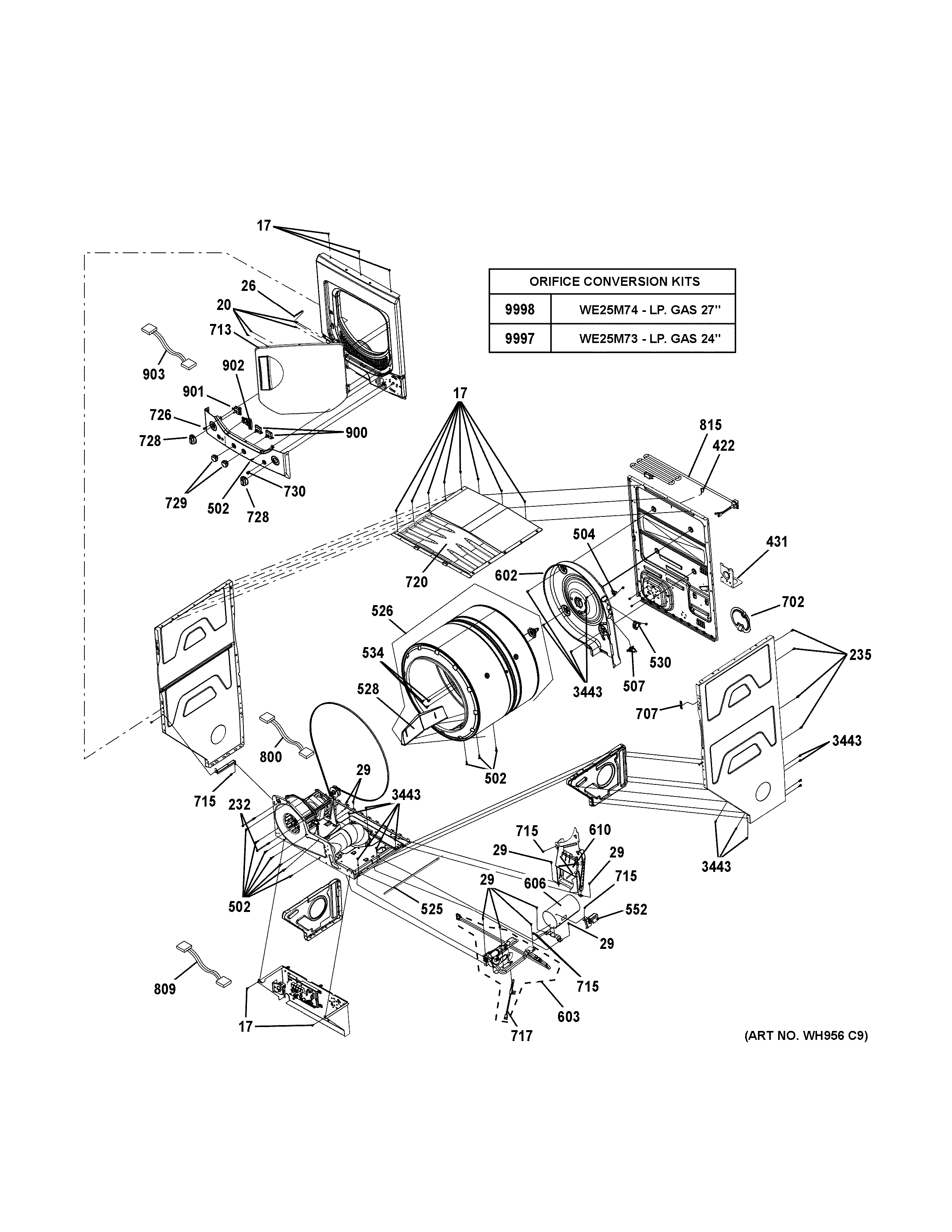

GUD27GSSJ0WW CABINET (1)

GUD27GSSJ0WW CABINET (1)

Written by

in

GUD27GSSJ0WW CABINET (1)

Products

PositionProduct
17WH2X1217 GE Screw Assembly
20WE2M302 GE Screw
26WE2M304 GE Screw 8-18 AB OVQ1 2 S ZN
29WB01K10042 GE Oven Screw 3/8" AB IHW 8-18
232WE2M202 GE Screw
235WE2X263D GE Screw Package 12 C92
422CLIP CORDSET
431WE01X20423 GE Strain Relief Bracket
502WE2M174 GE Screw #10
504GEN WE4M137?
507WE4M181 GE Cycling Thermostat
525WE1M999 GE Washer Dryer Exhaust Gasket
526WE21X28957 GE Drum Assembly
528WE21M39 GE Baffle
530WE4M529 GE Safety Thermostat
534WE2M163 GE Washer Screw
552WE4X448 GE Heat Detector Assembly
602WE14M193 GE Gas Diffuser Assembly
603WE25M79 GE 27" Burner and Valve Assembly
606WE14M183 GE Chamber Combustion
610WE11X29441 GE Duct Transition
702WE1M1004 GE Exhaust Cover
707WE2M301 GE Front Panel Clip
713WE10M151 GE Door Assembly
715WD2M101 GE Dishwasher Screw
717WE04X25996 GE Washer Igniter
720WE10X32277 GE Washer White Top Panel
726WE19X22737 GE Washer Control and Heating Element Assembly
728WE04X23115 GE Control Knob Assembly
729WE04X23116 GE Rotary Knob Assembly
730WE04X23114 GE Start Button Assembly
800WE26X20717 GE Main Harness Assembly
809WE26M363 GE UI Harness Assembly
815WE26M366 GE Power Cord and Label Assembly
900WH12X10509 GE Switch Selector
901WH12X10510 GE Washer Selector Switch
902WE01X23117 GE Selector Button
903WH19X10081 GE Selector Harness
3443WE1M280 GE Screw
9997WE25M73 GE 24" Gas Conversion Kit
9998WE25M74 GE Washer Dryer LP Gas Conversion Kit
