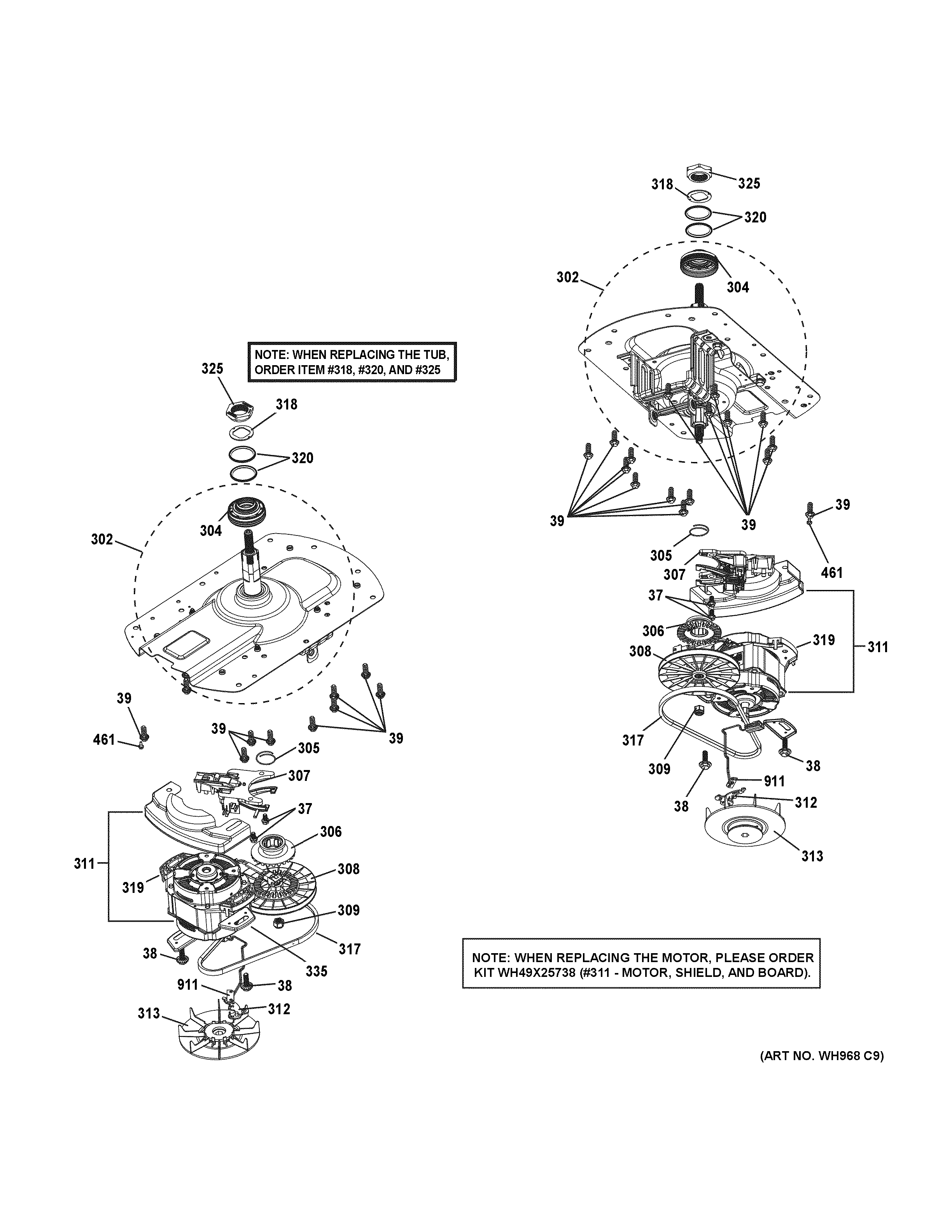

GUD27GSSJ0WW MOTOR & DRIVE ASSEMBLY

GUD27GSSJ0WW MOTOR & DRIVE ASSEMBLY

Written by

in

GUD27GSSJ0WW MOTOR & DRIVE ASSEMBLY

Products

PositionProduct
37WH01X10612 GE Taptite Screw
38WH01X10614 GE Hex Screw 5/16-18
39WH01X10616 GE HEX PT Screw K80 X 3.59
302WH49X22795 GE Support Assembly
304WH08X24594 GE Washer Tub Seal
305WH01X10606 GE Washer Spring Shifter
306WH01X28559 GE Washer Drive Disk
307WH16X10147 GE Washer Support Fork Assembly
308TRANSMISSION PULLEY
309WH01X10611 GE Pulley Nut
311WH49X25738 GE Tub Motor and Shield Kit
312WH12X20439 GE Sensor Board Support
313WH01X10608 GE Set Screw Pulley Motor Assembly
317WH01X20436 GE Washer Dryer Drive Belt
318WH01X22787 GE Washer Hub
319WH03X20508 GE Washer Motor Grommet
320WH09X22745 GE Washer O-Ring
325WH01X10618 GE Washer Hub Nut
335WE13X24974 GE Motor Bracket
461WZ5X158D GE Screw Package of 12
911WL49X20360 GE AC Speed Sensor Kit
