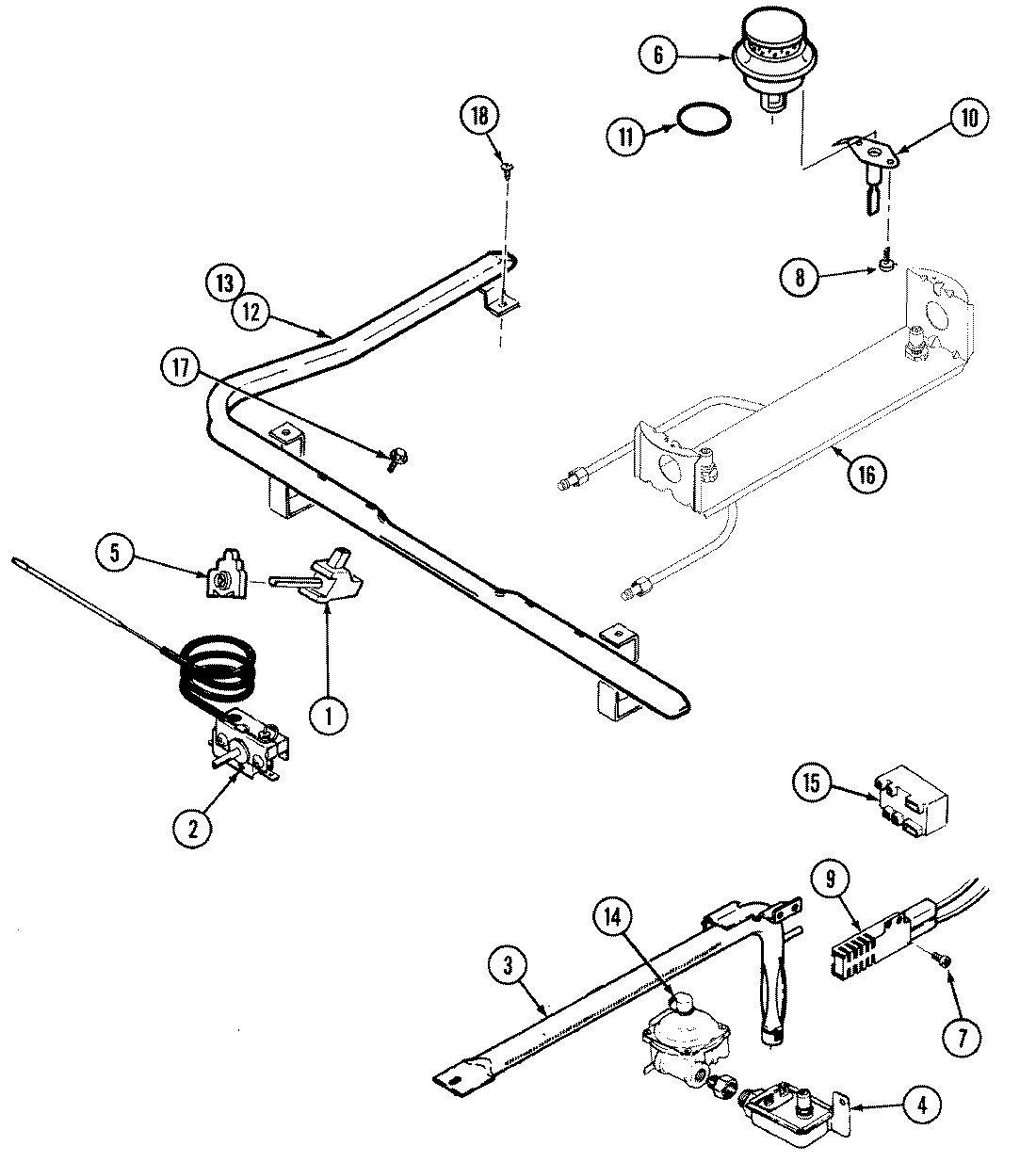

GV3277XUA 02 – CONTROL SYSTEM

Products

Position	Product
1	MAY 7101P044-60
1	MAY 7502P250-60
2	MAY 7101P280-60
2	MAY 7404P087-60
3	MAY 3403D023-45
4	MAY 7501P139-60
4	MAY 4005F433-51
5	WP7403P279-60 Whirlpool Igniter Switch
6	MAY 3412D018-09
7	WP3351614 Whirlpool Screw
8	MAY 7101P315-60
9	MAY 7432P076-60
10	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
11	MAY 7201P050-60
12	MAY 3414F104-44
12	MAY 7513P120-60
13	MAY 7103P130-60
14	MAY 7510P064-60
15	MAY 3807F432-45
15	MAY 7431P026-60
16	MAY 5187D036-60
17	MAY 7101P296-60
18	MAY 7101P290-60
18	MAY 5140D038-60
18	MAY 5125A312-60
