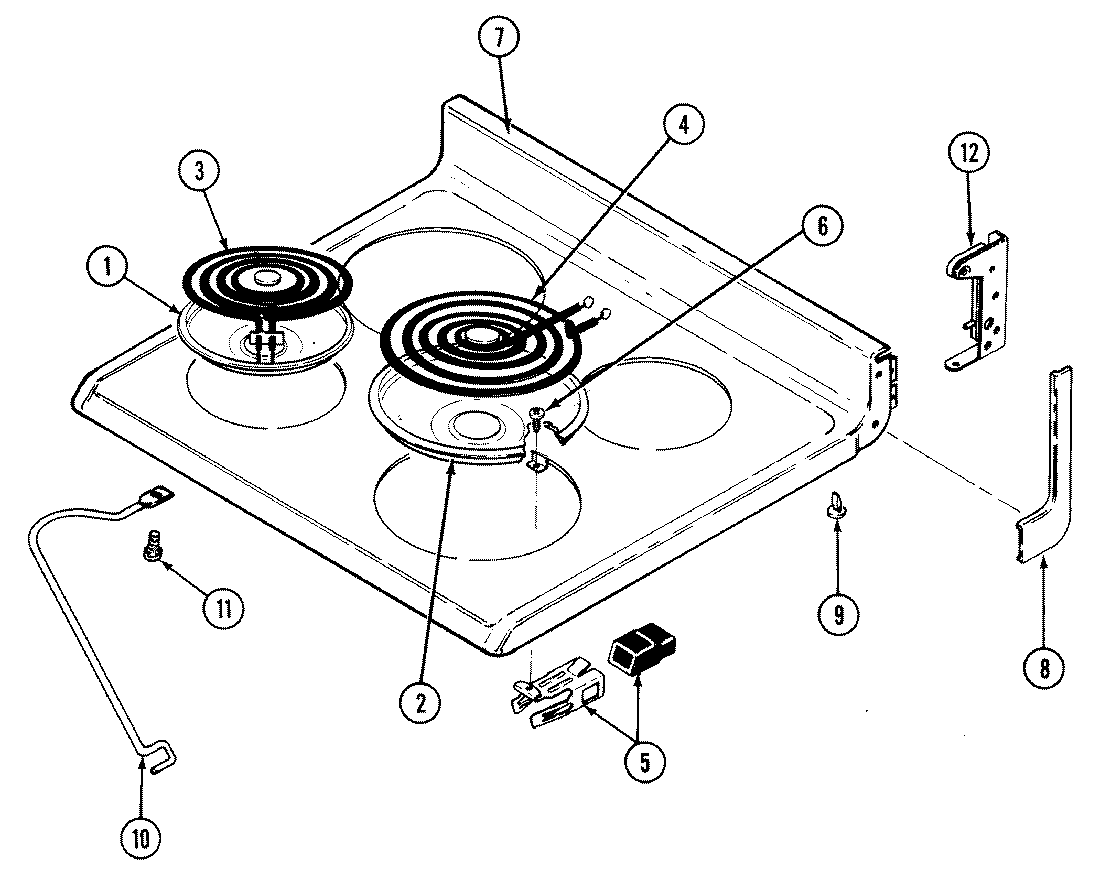

GV3531WUA 04 – TOP ASSY.

GV3531WUA 04 – TOP ASSY.

Written by

in

GV3531WUA 04 – TOP ASSY.

Products

PositionProduct
1MAY 7725P008-60
1WB32X107 GE Range Stove Cooktop 6" Drip Bowl Chrome Large Hole
2MAY 7725P009-60
3WPY04000036 Whirlpool Surface Element
4WPY04000035 Whirlpool Surface Element
5MAY 1430306K
6MAY 7118P013-60
7MAY 2002W099-84
8MAY 7746P031-60
8MAY 7746P030-60
8WP3195558 Whirlpool Nut
9MAY 8016P015-60
10MAY 7809P020-60
11MAY 7101P280-60
12MAY 3418D097-60
12MAY 3418D098-60
12SCREW (8BX3/8-NI)
13MAY 5175D049-60
