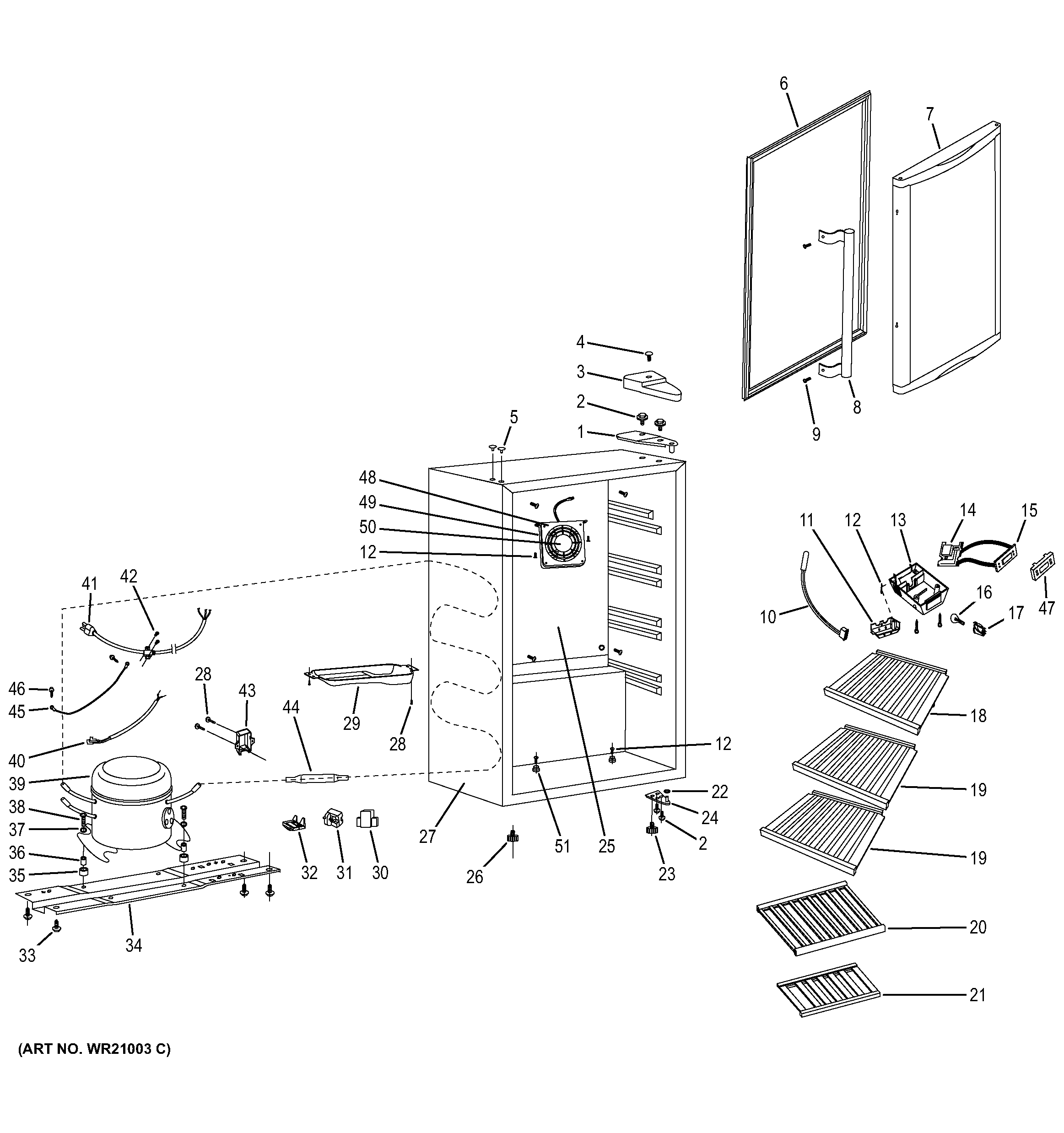

GVS04BDWCSS BEVERAGE CENTERadmin2025-04-26T10:21:14+00:00GVS04BDWCSS BEVERAGE CENTER ProductsPositionProduct1WR13X20026 GE Refrigerator Upper Hinge2WR01X20018 GE Screw3WR13X20025 GE Refrigerator Upper Hinge Cover4WR01X20028 GE Screw5PLUG BUTTON(BLACK)6WR24X20031 GE Refrigerator Black Door Gasket7WR78X20063 GE Door Assembly8WR02X12774 GE Refrigerator Handle9WR01X10400 GE Screw10WR51X20045 GE Refrigerator Temperature Probe Wire11WR02X12783 GE Refrigerator Lamp Shield12SCREW13WR02X12784 GE Refrigerator Control Box14WR02X12785 GE Main Control Board15WR03X10006 GE Refrigerator Display Circuit Board Assembly16WR02X12786 GE Refrigerator Lamp17LAMP SET18WR71X10797 GE Shelf with Stop19WR71X10798 GE Upper Shelf20WR71X10799 GE Mid Shelf21WR38X10413 GE Shelf Wine22WR01X10831 GE Bushing23WR01X10401 GE Fixed Foot24WR13X20057 GE Refrigerator Bottom Hinge25WR62X20058 GE Refrigerator Evaporator Assembly26WR02X20024 GE Refrigerator Adjustable Foot27CABINET28SCREW29WR31X10059 GE Drip Tray30GEN 3550C-0027A31WR55X20061 GE Refrigerator PTC Assembly33SCREW34WR91X20043 GE Compressor Base Assembly35GEN 5166C-0004A36GEN WR09X2004237WR01X20029 GE Bushing38GEN WR01X2003339WR91X20041 GE Compressor40COMPRESSOR WIRE41WR23X10614 GE Power Supply Cord42SCREW43WR40X20017 GE Wire Box44WR02X20022 GE Refrigerator Desiccant Filter45WR23X10615 GE Grounding Wire46GEN GB862.147WR09X20038 GE Appliance Display Panel48WR02X12775 GE Fan Set49FAN PROTECT COVER50WR02X12777 GE Refrigerator Fan Assembly51WASHER(BLACK)
