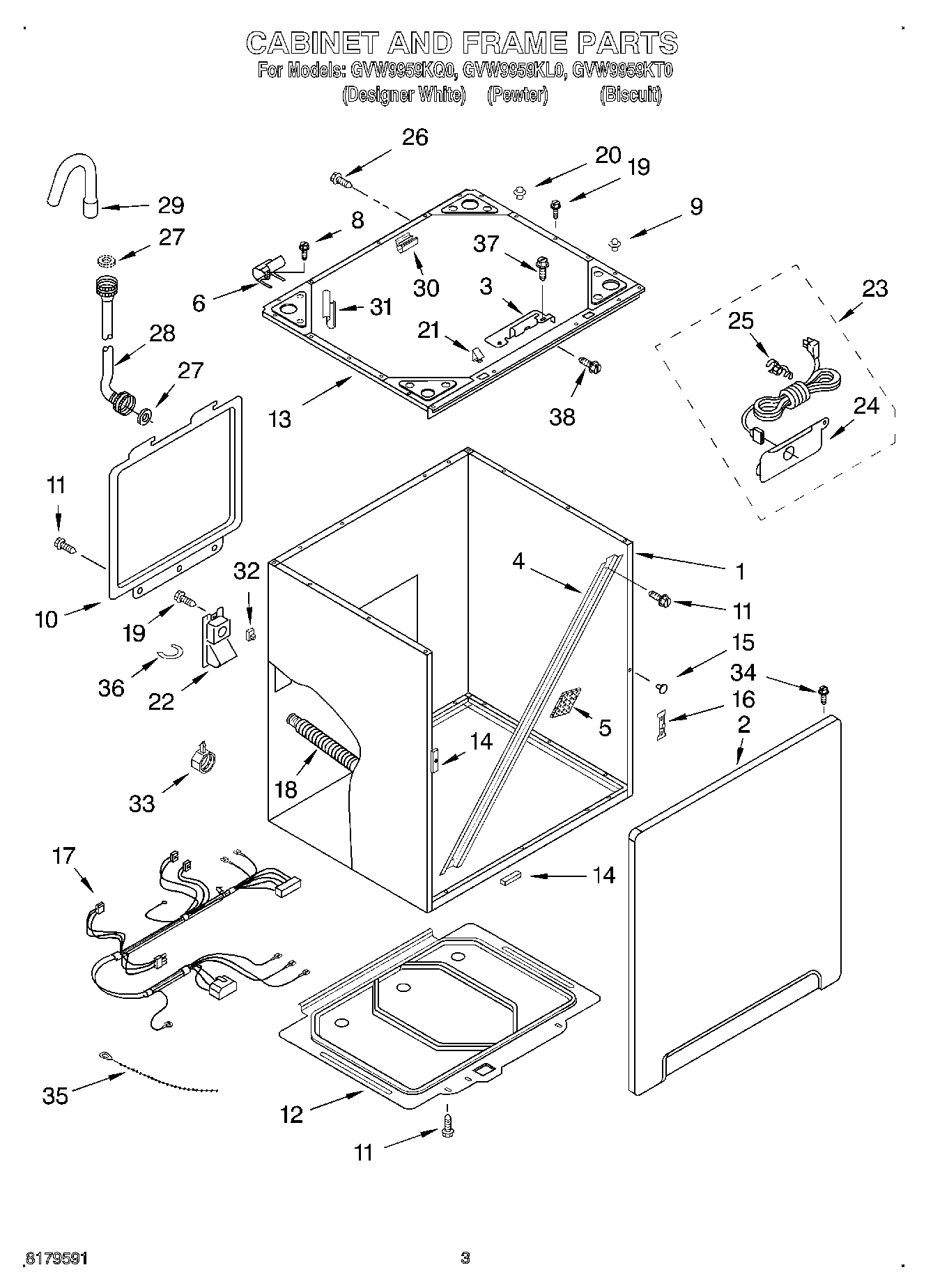

GVW9959KL0 02 – CABINET AND FRAME

Products

Position	Product
1	Cabinet (Pewter)
1	Cabinet (White)
1	Cabinet (Biscuit)
2	Panel, Front (White)
2	Panel, Front (Biscuit)
2	Panel, Front (Pewter)
3	Bracket, Top Lock
4	Brace, Cabinet (Front)
5	WP8283273 Whirlpool Pad
6	Hinge, Top to Panel
8	Screw, 10-32 x 1/2
9	8518891 Whirlpool Rivet
10	Panel, Back
11	W11573574 Whirlpool Screw
12	Pan, Bottom
13	Frame, Cabinet
14	Switch, Motor (2)
15	Spacer, Cabinet
16	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
17	Harness, Lower (Includes No. 30)
18	Hose, Drain
19	4389654 Whirlpool Screw
20	Spacer
21	Lock, Top (Front)
22	Retainer, Drain Hose (Storage)
23	Power Cord Assembly
24	Cover, Harness
25	Strain Relief
26	WP693995 Whirlpool Screw
27	WP16123 Whirlpool Washer
28	WP89503 Whirlpool Washer Fill Hose
29	Hose, Drain (Goose Neck)
30	Clip, Harness (3)
31	Gusset, Harness
32	WP692400 Whirlpool Nut
33	Clip, Drain Hose
34	SCREW
35	WPW10339879 Whirlpool Wire Tie
36	Retainer, Drain Hose
37	W10891954 Whirlpool Screw
38	Screw, 8-18 x 1.187
