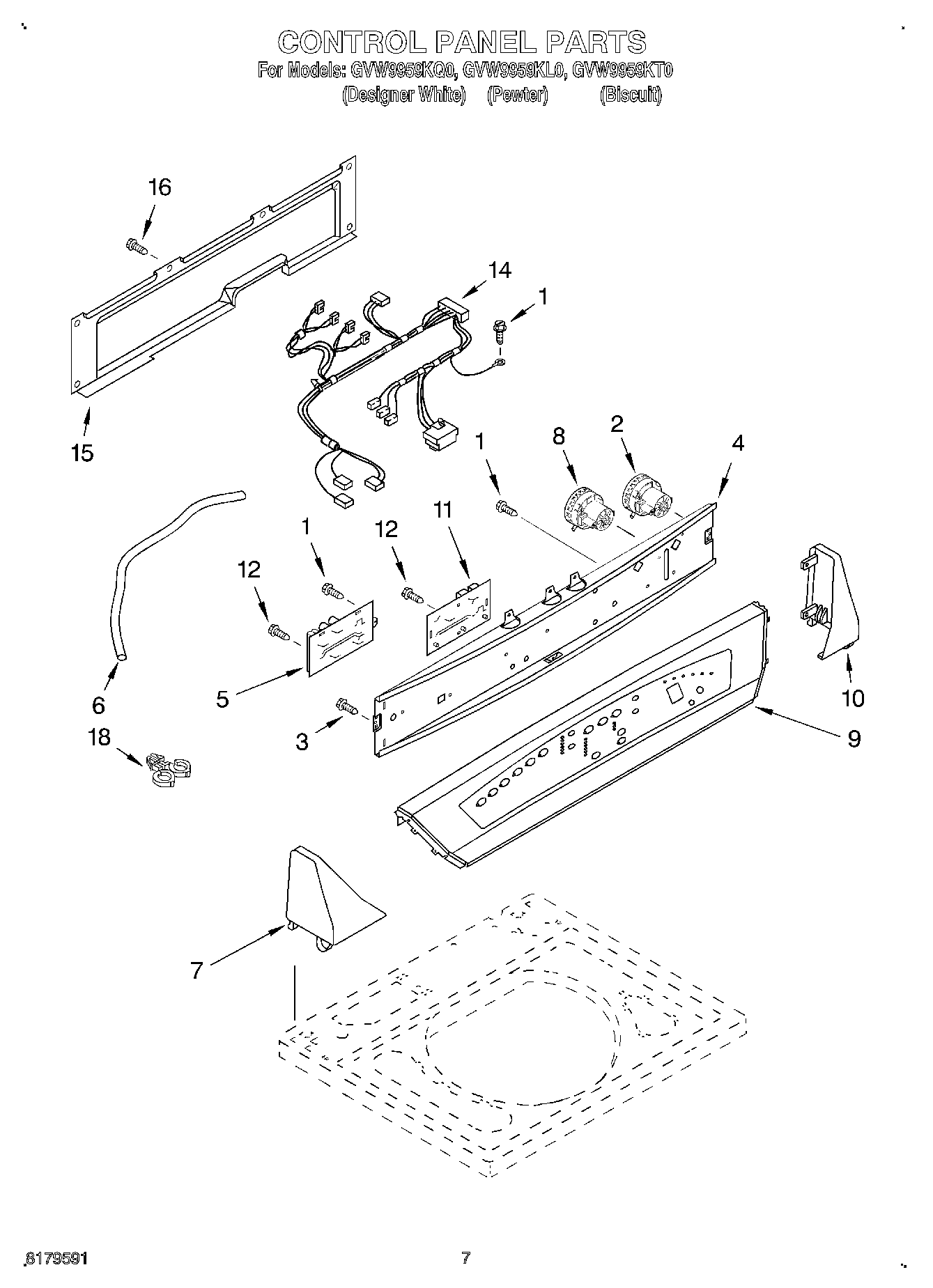

GVW9959KL0 04 – CONTROL PANEL

Products

Position	Product
1	WP3351614 Whirlpool Screw
2	Switch, Pressure (Recirculation-Marked “FLD“)
3	WP304231 Whirlpool Dishwasher Screw
4	Bracket, Control
5	Control, Motor (Electronic)
6	WP353244 Whirlpool Hose
7	Cap, End (L.H.) (Biscuit)
7	Cap, End (L.H.) (Pewter)
7	Cap, End (L.H.) (White)
8	Switch, Pressure (Operating – Marked “OPR“)
9	Panel, Console (Pewter)
9	Panel, Console (Pearl)
10	Cap, End (R.H.) (Pewter)
10	Cap, End (R.H.) (White)
10	Cap, End (R.H.) (Biscuit)
11	Control, Machine (Electronic)
12	Screw 8-18 x 5/8
14	Harness, Wiring
15	Panel, Rear (Console)
16	WP693995 Whirlpool Screw
18	Clip, Pressure Hose
