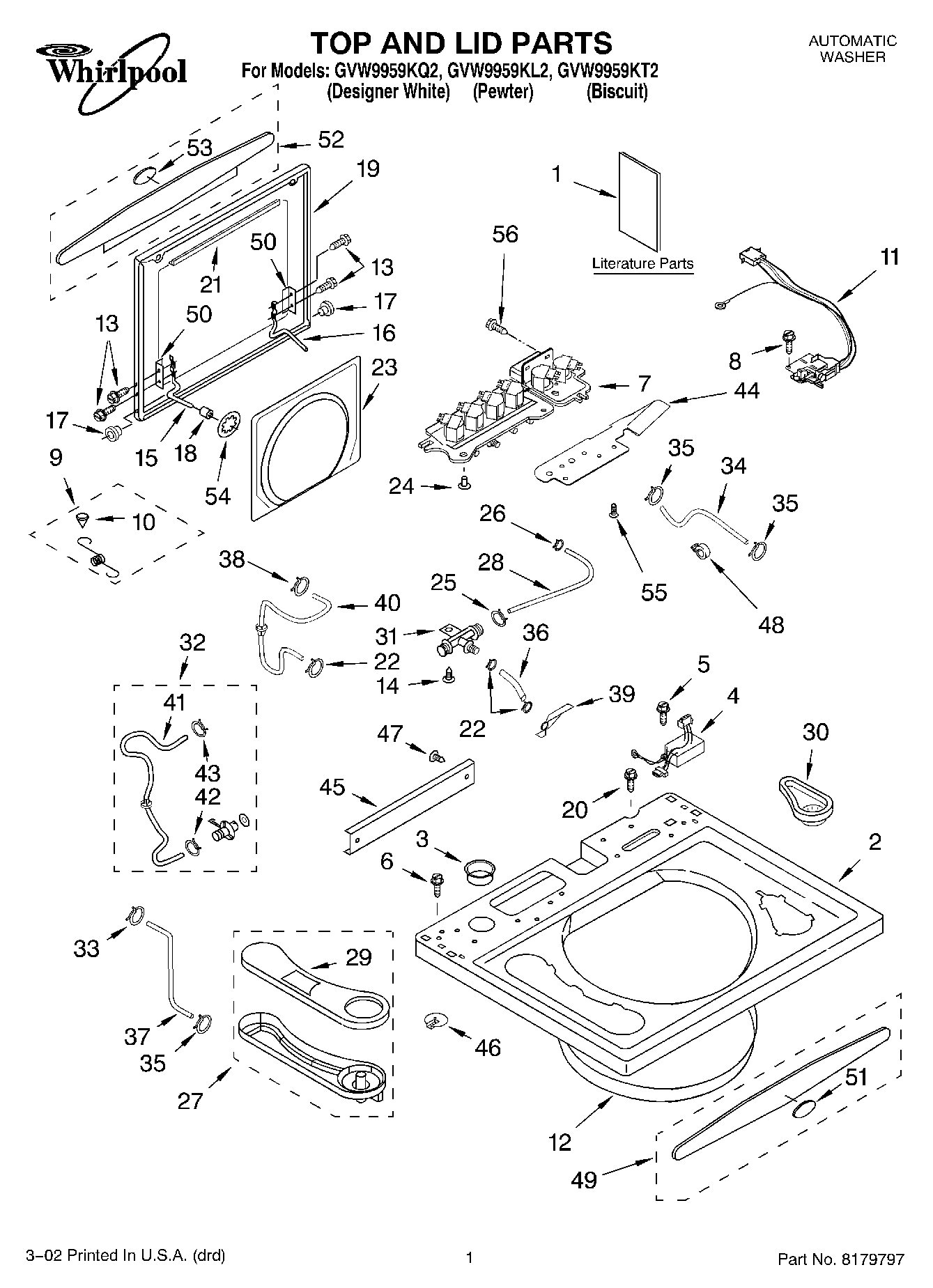

GVW9959KL2 01 – TOP AND LID, LITERATURE

Products

PositionProduct
1Literature Parts (Tech Sheet)
1Literature Parts (Video – Use & Care)
1Literature Parts (Use & Care Guide)
1Literature Parts (Energy Guide)
1Literature Parts (Wiring Diagram)
2Top (White)
2Top (Pewter)
2Top (Biscuit)
3Bushing, Harness
4Filter, Line
5Screw 8-18 x 5/8
6WP3351614 Whirlpool Screw
7Valve, Water Inlet
8Screw, Lid Switch (2)
9Lid Spring (Includes No. 10)
10Plug, Button
11Switch, Lid
12Splash Shield Assembly
13SCREW
14Clip, Pine Tree
15Hinge, Lid (L.H.)
16Hinge, Lid (R.H.)
17Bearing, Lid Hinge (2)
18Bumper, Lid Hinge
19Lid Assembly (Includes Items 13, 14, 15, 16, 21, 23, 52 & 53) (Pewter)
19Lid Assembly (Includes Items 13, 14, 15, 16, 21, 23, 52 & 53) (Biscuit)
19Lid Assembly (Includes Items 13, 14, 15, 16, 21, 23, 52 & 53) (White)
20W10850756 Whirlpool Screw
21Seal, Lid
23Lid, Inner
24Clip, Two Stage
27Dispenser, Bleach & Fabric Softener
28Hose, Diverter to Venturi
29Cover, Dispenser
30Dispenser, Detergent
31Venturi
32Nozzle Assembly (Bleach)
34Hose, Detergent
36Hose, Ve
37WPL 8054365
39WPL 8271943
40WPL 8316761
41WPL 8316762
42WP596669 Whirlpool Hose Clamp
44WPL 8529937
45WPL 8318189
46WPL 8519201
47WPL 8280537
488559320 Whirlpool Clip
49WPL 8527686
49WPL 8527687
50WP21097 Whirlpool Pad
51Medallion
52WPL 8520850
52WPL 8520851
53WPL 8519764
54WPL 3955659
55WPL 8530271
56W11544659 Whirlpool Refrigerator Screw
