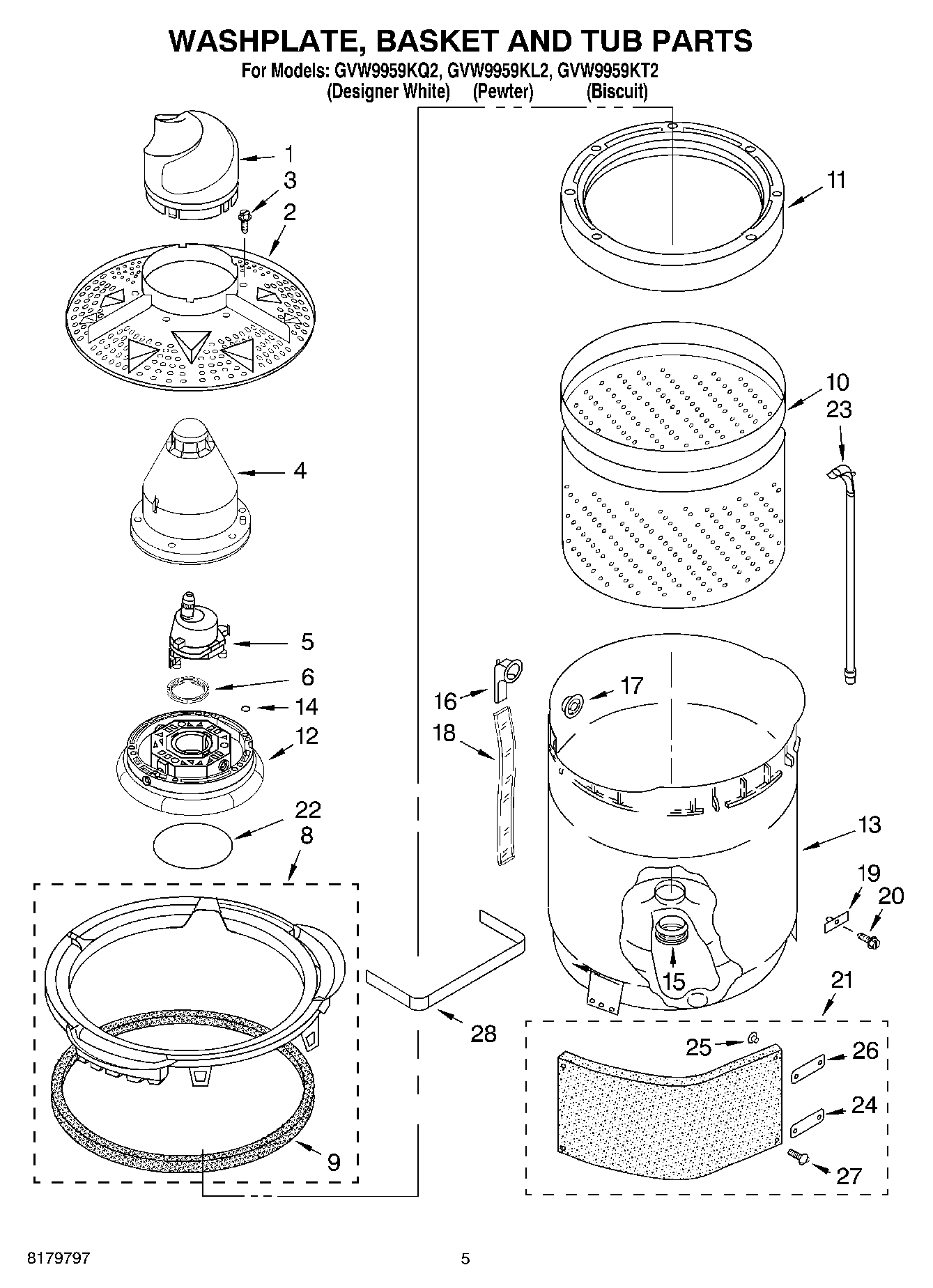

GVW9959KL2 03 – WASHPLATE, BASKET AND TUB

GVW9959KL2 03 – WASHPLATE, BASKET AND TUB

Written by

in

GVW9959KL2 03 – WASHPLATE, BASKET AND TUB

Products

PositionProduct
1285908 Whirlpool Dryer Kit
2Washplate (Outer)
3Bolt
4Washplate (Inner)
5Leveler
6Nut, Lock
8Tub Ring Assembly
9Seal, Tub Ring
10BASKET
11Balance Ring
12U-Joint
13Tub
14W10491617 Whirlpool Seal
15Gasket Centerpost
16Tube, Overflow
17Plug, Overflow
18Bag, Overflow
19Clip, Tub Retainer (4)
20W10856122 Whirlpool Refrigerator Screw
21Absorber, Sound (Tub)
23Tube, Water Recirculation
24Strap, Absorber (Lower)
25Clip, Absorber
26Strap, Absorber (Upper)
27Retainer, Push-In
28Shield, Splash (Tub Ring)
