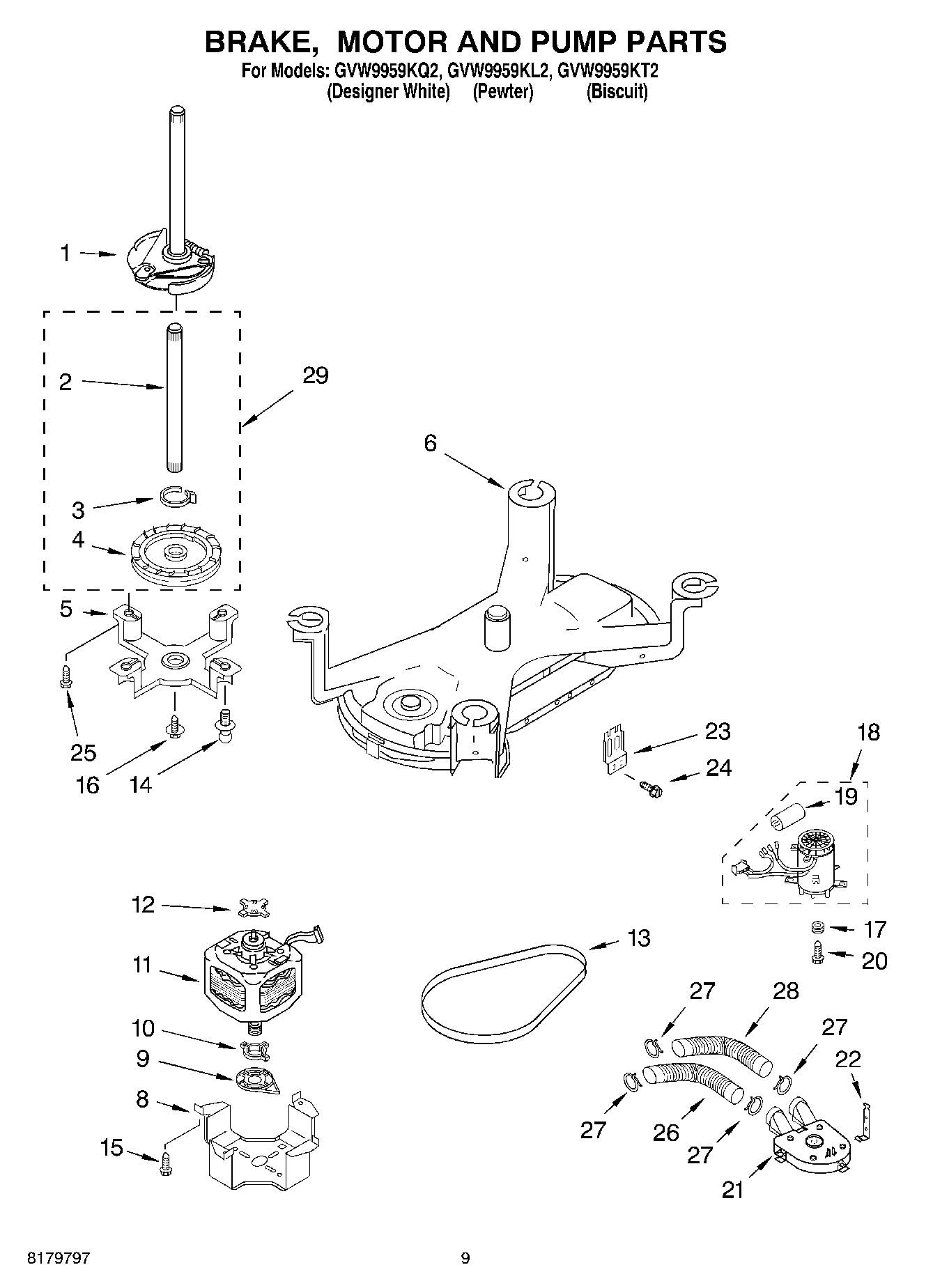

GVW9959KL2 05 – BRAKE, MOTOR AND PUMP

Products

Position	Product
1	Brake & Drive Tube (Complete)
2	Shaft, Washplate
3	Spring Assembly (Shift)
4	Pulley, Drive
5	Bearing Plate, Lower Drive
6	Support, Tub
8	Plate, Motor
9	Socket, Isolator
10	Isolator, Motor (Lower)
11	Motor, Main Drive
12	Isolator, Motor (Upper)
13	Belt, Drive
14	Stud, Ball (2)
15	Screw
16	Screw, 1/4 x 3/4
17	Isolator, Pump Motor (3)
18	Motor, Pump (Includes No. 19)
19	Capacitor, Pump Motor
20	Screw
21	Pump (Complete)
22	Retainer, Pump (2)
23	Bracket, Motor Connector
24	WP3390631 Whirlpool Screw
25	Screw
26	Hose, Tub to Pump (Inner)
27	WP616099 Whirlpool Clamp
28	Hose, Tub to Pump (Outer)
29	Pulley Assembly- Drive (Complete)
