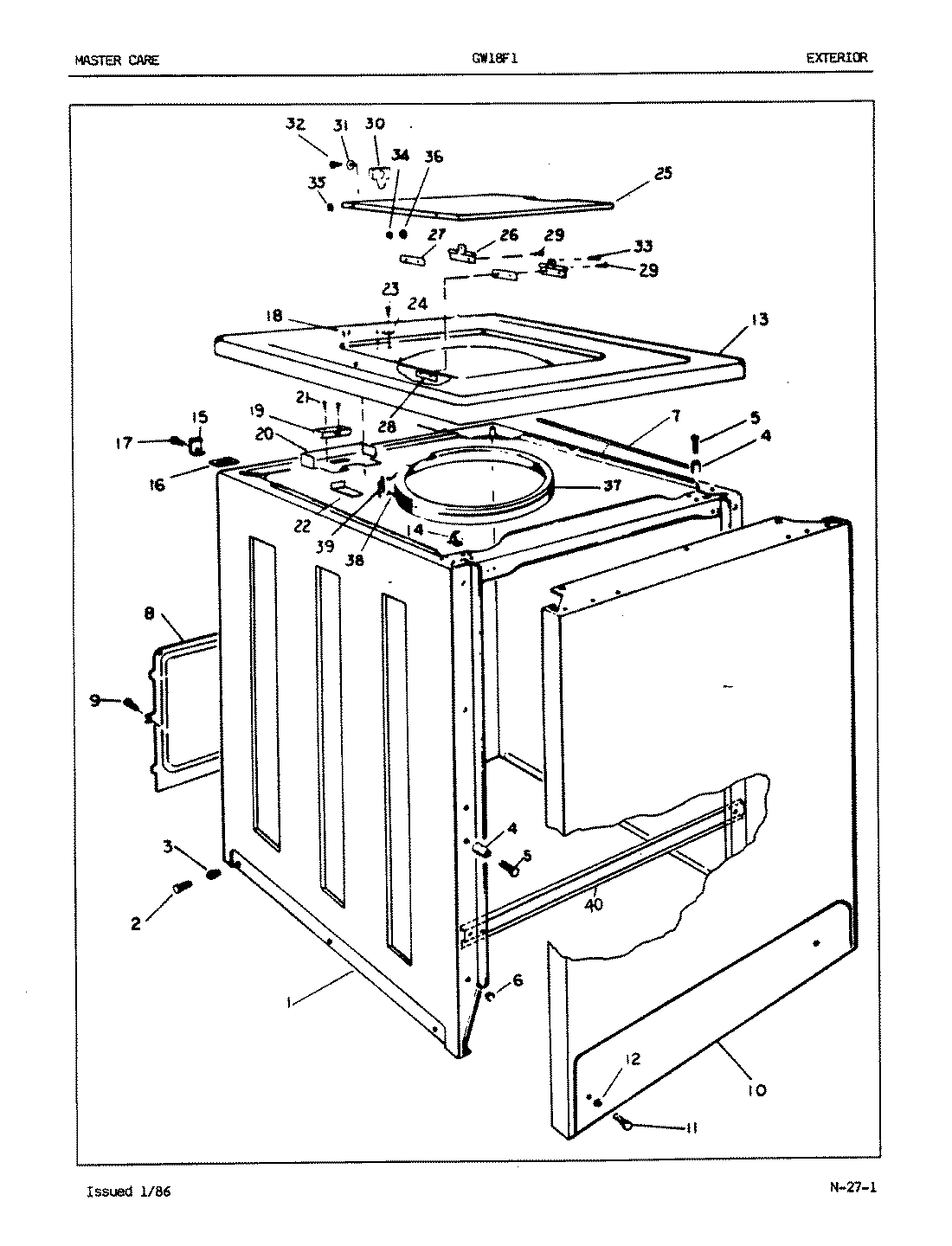

GW18F1H 03 – EXTERIOR (REV. A-D)
Written by
in
GW18F1H 03 – EXTERIOR (REV. A-D)
Products
Position
Product
1
MAY 35-0061-25
3
MAY 25-7458
3
MAY 33-2088
4
MAY 34-9701
5
MAY 25-6109
7
MAY 33-9948
8
MAY 33-8687
10
MAY 35-0056-25
11
MAY 25-7001
13
MAY 35-0063-25
14
MAY 25-7285
15
MAY 33-7450
16
MAY 33-0930
17
SCREW
18
MAY 33-2653
19
MAY 33-9064
20
MAY 33-8289
21
NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
22
MAY 33-8828
23
MAY 25-7463
25
MAY 35-0611-25
26
MAY 33-6956
27
MAY 33-6957
28
MAY 33-8058
30
WP43-0057 Whirlpool Lid Switch Actuator
32
MAY 25-7438
33
MAY 25-7455
34
MAY 25-7086
35
MAY 25-7436
36
MAY 35-0581
36
MAY 25-8057
37
MAY 33-9399
38
MAY 33-6093
39
MAY 33-0767
40
MAY 35-0663
40
MAY 25-7883
←
