GW30SPEA2 05 – DOOR – Aparts

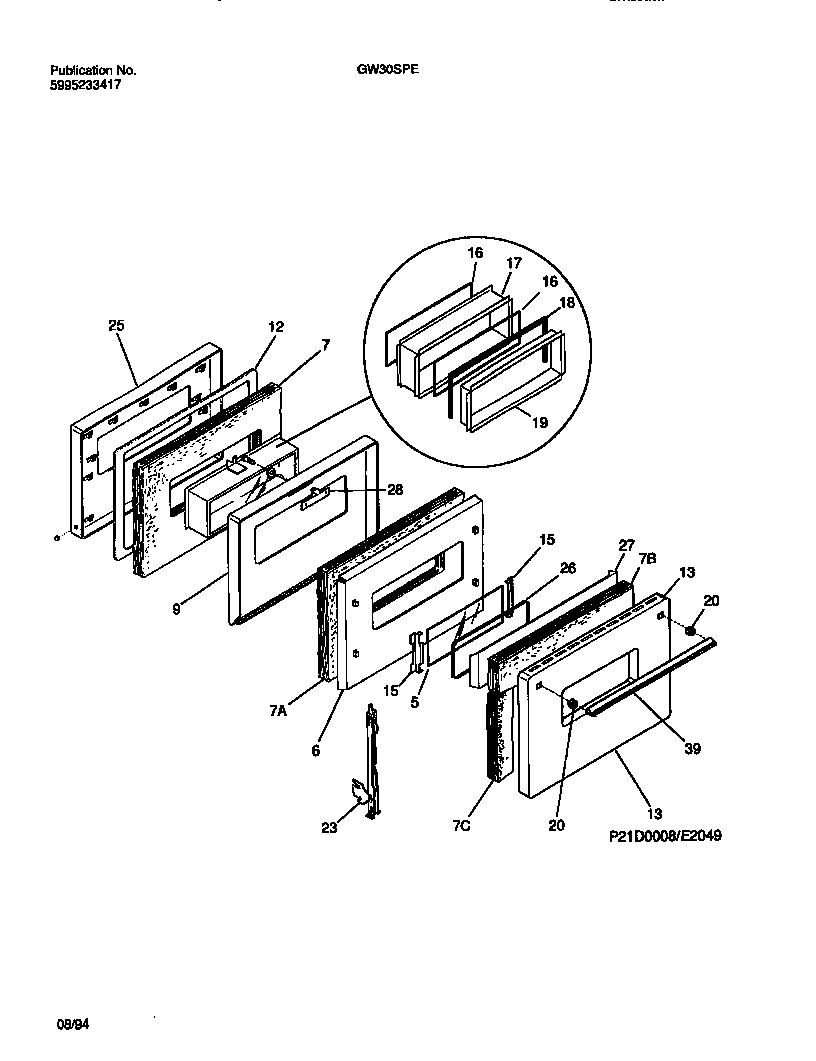

GW30SPEA2 05 – DOOR

Products

Position	Product
5	GLASS-OUTER
6	PANEL-AIRWASH
7B	WCI 5301318805
7	INSULATION-BAFFLE
7A	INSULATION- AIRWASH
7C	INSULATION-AIRWASH (2)
9	WCI 316041903
12	WCI 3206078
13	PANEL-DOOR (ALMD)
15	BRACKET-MTG (2)
16	GLASS-OVEN DOOR, HEAT BARRIER, (2)
17	WCI 5303212548
18	GASKET-WINDOW
19	COLLAR-GLASS
20	SPACER (2)
23	HINGE, ASSY (2)
25	WCI 5303292734
26	MOULDING OUTER GLASS
27	PANEL-INSULATOR PAD
28	WCI 5301167830
39	HANDLE
