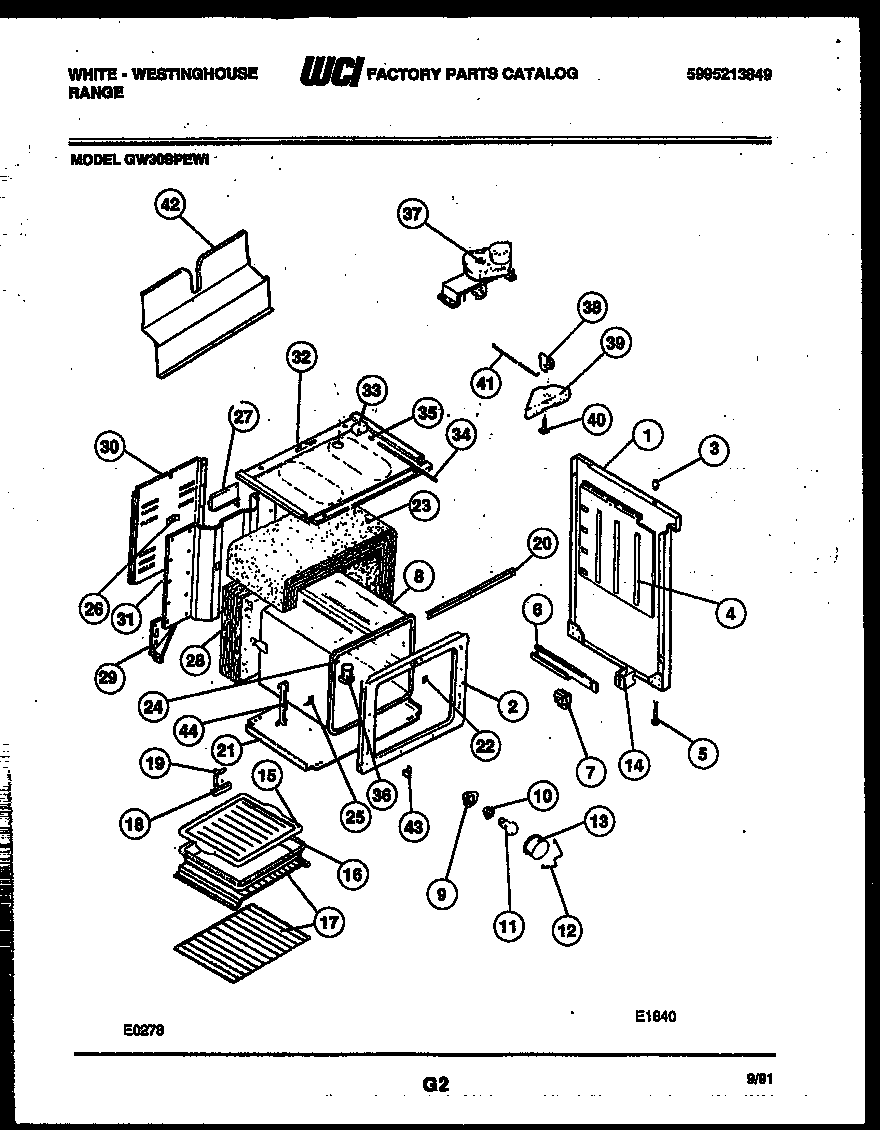

GW30SPED1 07 – BODY PARTS

Products

PositionProduct
*54521ANTI-TIP KIT, (NON-ILLUSTRATED)
*54522WCI 5300009126
*54522WCI 19100210130
1ASIDE PANEL LH-ALMD
1SIDE PANEL RH-ALMD
2WCI 5303207390
3BUMPER, COOKTOP (4)
4RETAINER, INSULATION (2)
5SCREW-LEVELING (4)
6ARAIL, DRAWER LH
6WCI 5308015746
7GUIDE-DRAWER FRNT (2)
8BODY-OVEN
9WCI 3051511
10316116400 Frigidaire Oven Light Socket
11316538904 Frigidaire Oven Lamp Light
12RETAINER-LENS
135304524341 Frigidaire Lens
14SPACER, DRAWER RAIL (2)
15WCI 3205234
16WCI 3205539
17316067902 Frigidaire Oven Rack
17ARACK-OFFSET
185304409888 Frigidaire Oven Terminal Block with Hardware
19PLATE=GROUND STRAP
20WCI 5303207391
21WCI 3206275
22WCI 3202082
24PLUG BUTTON (NON-ILLUSTRATED)
25WCI 3201632
26WCI 3016281
27WCI 3051634
28INSULATION
29AWCI 3017482
29WCI 3017481
30WIRE, COVER
31PANEL-BACK
32WCI 08012542
33SWITCH, DOOR
34WCI 08007445
35WCI 08007444
36TUBE-OVEN VENT
37LATCH, MOTOR
38WCI 3202387
39HOUSING-DOOR LATCH
40AXLE – HINGE (2)
41WCI 3051649
42WCI 3206095
43WCI 3019063
44WCI 3201631
