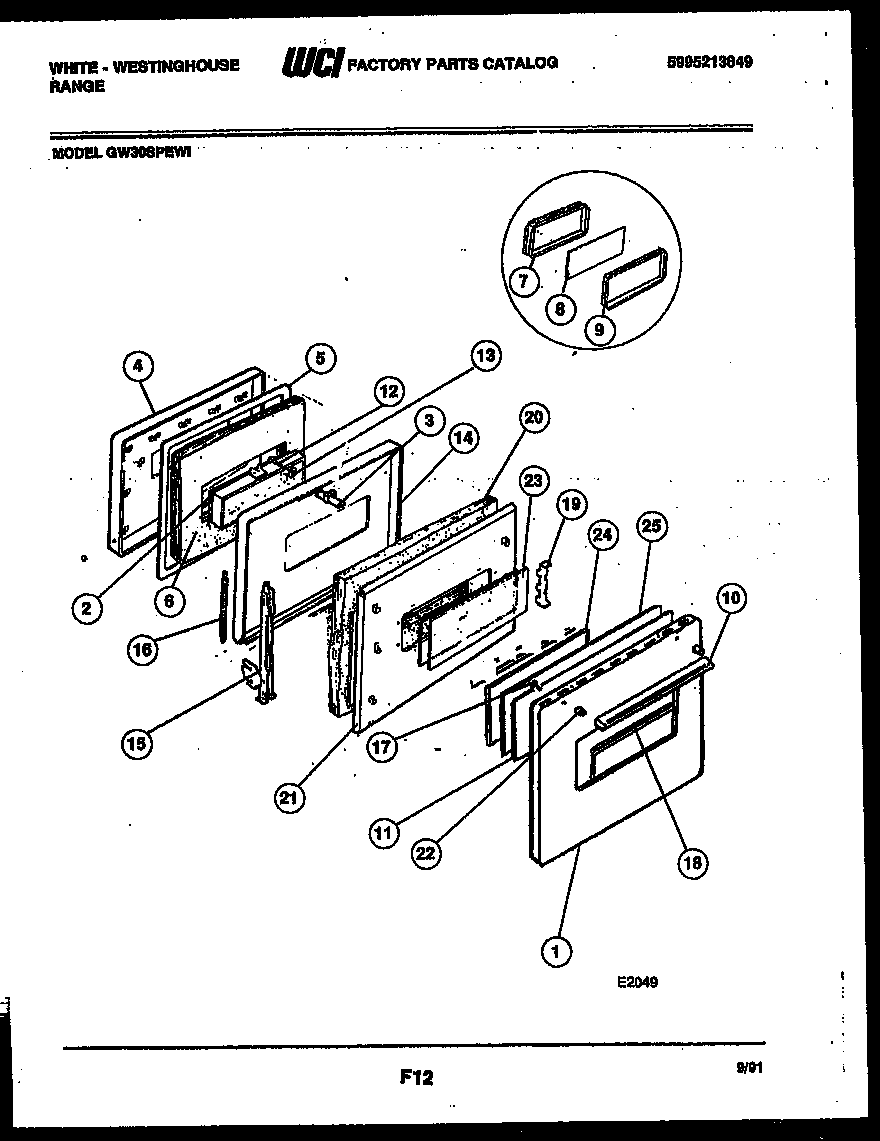

GW30SPEW1 04 – DOOR PARTS

Products

Position	Product
*54508	INSULATION-AIRWASH (2)
1	WCI 5303212550
1	PANEL-DOOR (ALMD)
3	WCI 5301167830
4	BAFFLE
5	WCI 3206078
6	INSULATION-BAFFLE
7	WCI 5303212548
9	COLLAR-GLASS
10	HANDLE
11	WCI 5301318805
12	SCREW 10 X 24 (2)
13	WASHER-PADDED (3) (NON-ILLUSTRATED)
14	DOOR LINER
15	HINGE, ASSY (2)
16	WCI 5308003186
17	SCREW-HANDLE (2)
18	MOULDING OUTER GLASS
19	BRACKET-MTG (2)
20	INSULATION- AIRWASH
21	PANEL-AIRWASH
22	SPACER (2)
23	GLASS-OVEN DOOR, HEAT BARRIER, (2)
24	GLASS-OUTER
25	PANEL-INSULATOR PAD
