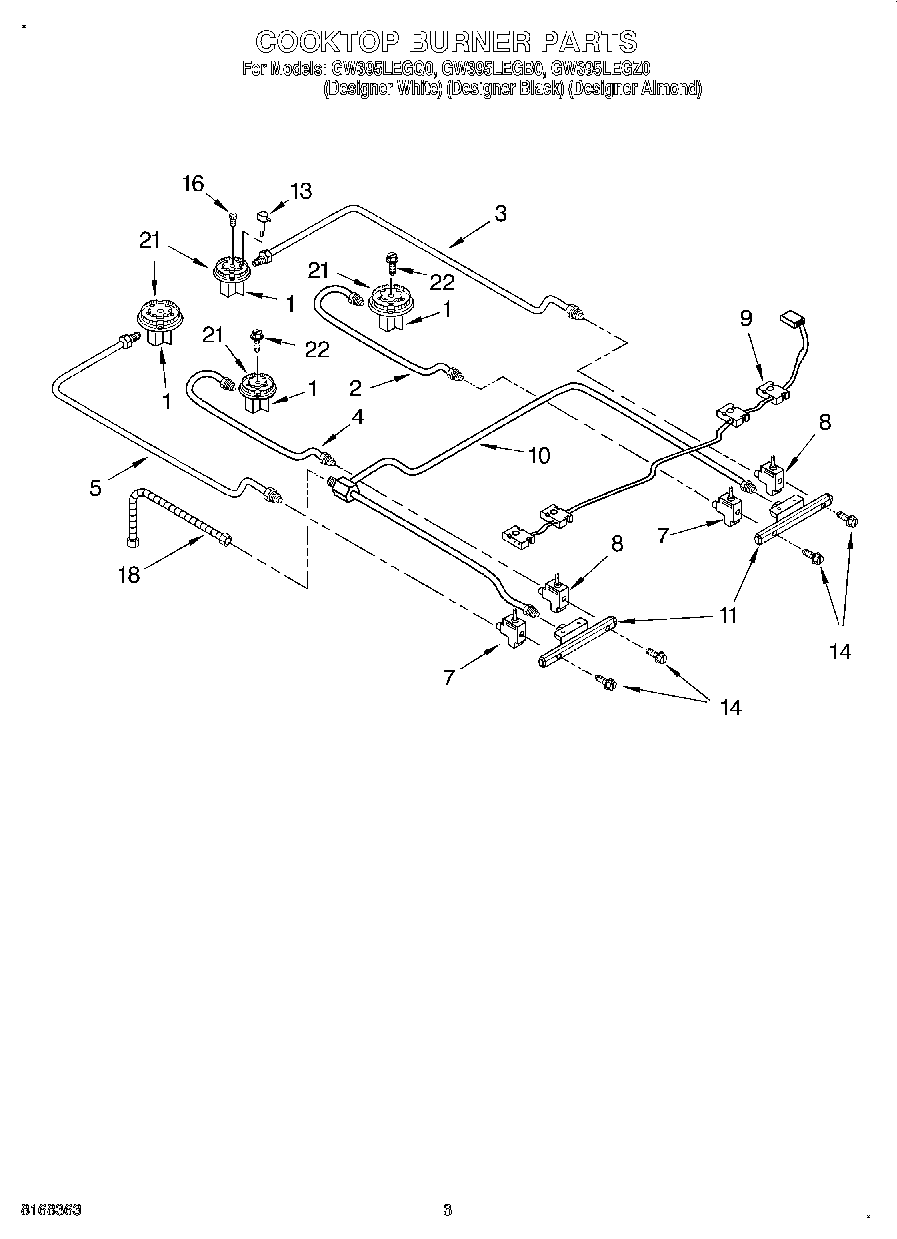

GW395LEGQ0 03 – COOKTOP BURNER

Products

PositionProduct
NITubing, Manifold
1Burner Base W/Orifice (12K RR)
1Burner Base W/Orifice (6K RF-LR)
2Tubing, Burner (RF)
3Tubing, Burner (RR)
4Tubing, Burner (LF)
5Tubing, Burner (LR)
7Valve, Burner Small (2)
8Valve, Burner Large (2)
9Spark Switch & Harness Assembly
11Manifold (2)
13Ignitor
14Bolt (Gas Valve)
16WP9753929 Whirlpool Orifice
16WP9753928 Whirlpool Orifice Assembly
18Tubing, Flex
21Head, Burner (LF)
21Head, Burner (RF)
22WP3400814 Whirlpool Screw
